Repair Section
72

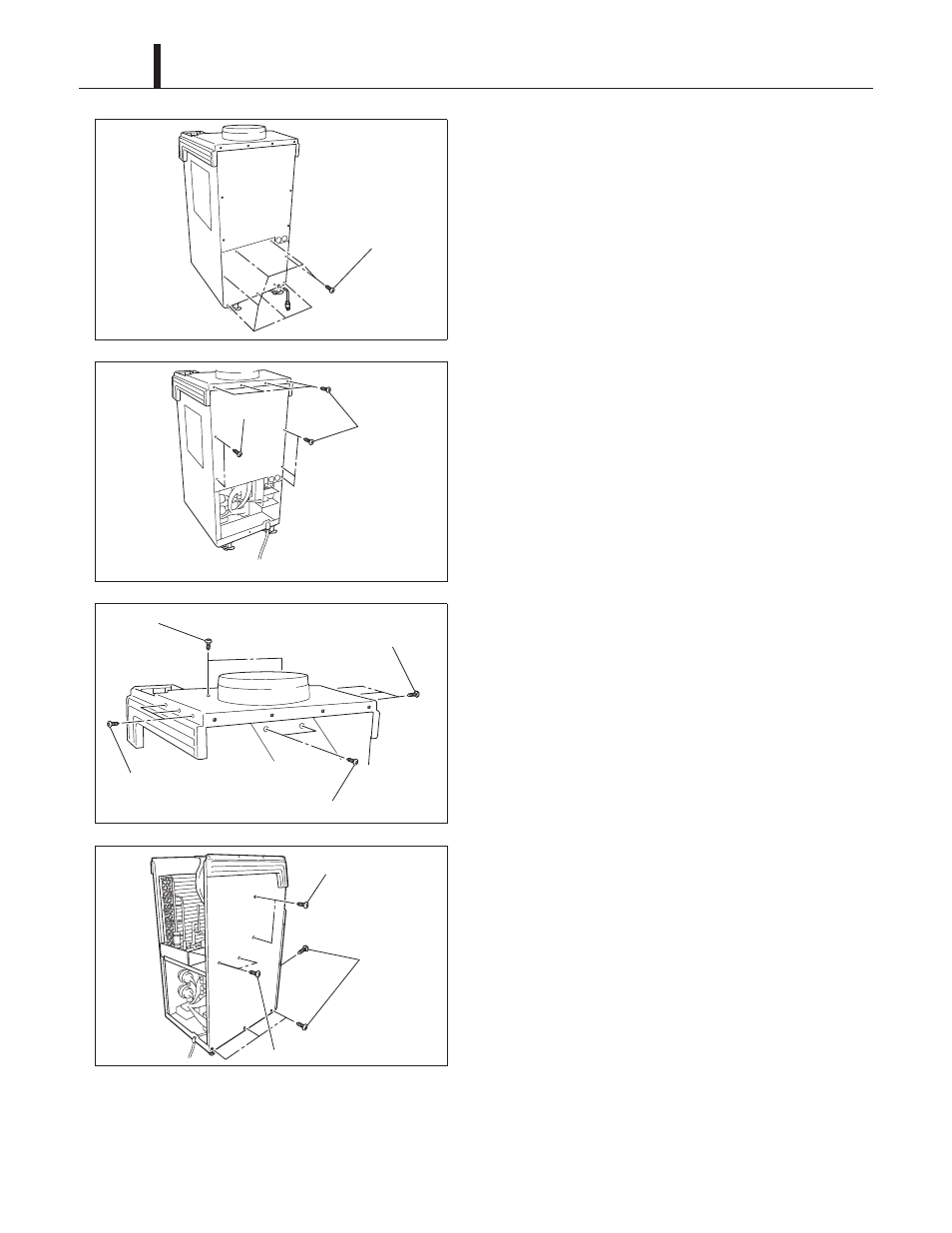

5) Remove seven (7) screws from the service
panel.
6) Remove nine (9) screws from the rear panel.
7) Remove eight (8) screws from the rear panel and
two (2) screws from the outdoor fan casing.
8) Remove eight (8) screws from the left panel.
ILL00894-00
Screws (7)
ILL00895-00
Screws (7)
Screws (2)
ILL00896-00
Screws (2)
Screws (3)
Screws (2)
Screws (3)
ILL00897-00
Screws (4)
Screws (2)
Screws (2)
