Control Station Installation
The ATSTCS Control Station can be mounted to a double gang box, 1 1 /
2
inch deep or deeper. The Control Station can be
mounted up to 30 feet away from the Digital Clock/Timer. The recommended minimum interconnecting field wire size is
#22.8 AWG stranded wire.
Ensure that installation conforms to the National Electrical Code and local wiring codes.
CAUTION: Electric Shock Hazard! Ensure that no electrical power is present on any wire before installation.
u
Pull interconnecting field wires into the double gang box.
v
Connect field wiring interconnecting the ATSTCS Control Station with the Digital Clock/Timer to the
appropriate wires of the Control Station. See wiring detail below.
w
Mount the Control Station to the double gang box using the machine screws provided.
K2+ K2– K1+ K1– 12V
AC
12V
AC
UNREG GND PIEZO S5 S4 S3 S2 S1
RED BLACK VIOLET GREY BROWN BLUE ORANGE YELLOW
CHASSIS
NEUTRAL
120 VAC
50/60Hz
TERMINALS K2+ AND K2– ARE USED FOR CODE BLUE MODE

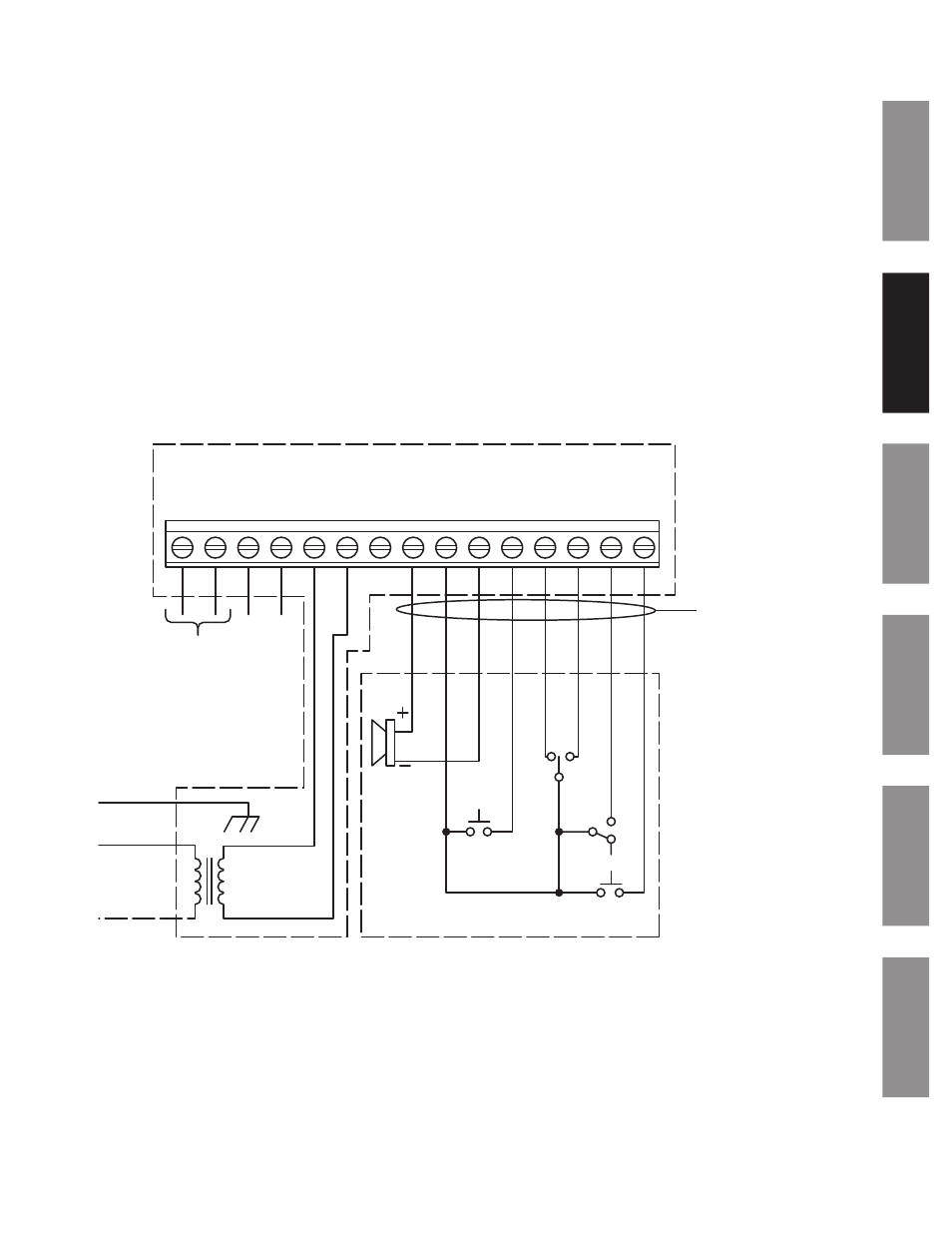

Typical wiring for the Digital Clock/Timer with Control Station
PIEZO
BUZZER
30 ft. maximum #22
AWG wire (minimum)
with
1 /
32
" insulation
(minimum)
RESET
ENTER
START/STOP
INCREMENT
UP CLOCK DOWN
SET
RUN
