ELECTRICAL WIRING
WARNING: RISK OF FIRE AND ELECTRIC SHOCK. Make sure the power supply cord is
disconnected to avoid any electric shock before servicing. Electric shock may
cause serious injury. It is recommended that installation should be conducted by a
licensed electrician.
NOTE: If the power receptacle is not installed at the proper position, then contact the
appropriate electrical company.
1. Power source: AC 230V, 50Hz single phase
2. Use or install a power receptacle that is rated for this power supply.
3. A receptacle equipped with a grounded breaker should be used to
supply the power. If a grounded breaker is not equipped, then
contact the appropriate electrical company.
4. For a receptacle that is not the rainproof type, install it within the shaded area in the figure,
or prepare a device to keep out the rain.
5. The length of the power cord is 2 m. The power cord should be free from damage, bundling,
and sharp bends and not placed under a heavy object. If the power cord is installed
outdoors, then select a place sheltered from rain water, and pass it through a conduit.
INSTALLING REMOTE CONTROL
NOTE: Select a place that is free from rainwater, high-temperature and humidity, and dust.
Be aware of tripping over the cord, having the cord become caught on a door, or
crushing the cord under heavy objects.
DO not bundle the remote controller cord with a power supply cord or other electric
equipment cords. Install the cord separately.
Select a place for the installation that takes into account the cord length.
3 m remote control cord is attached.
An extension cord up to 20 m for the remote control is permitted.

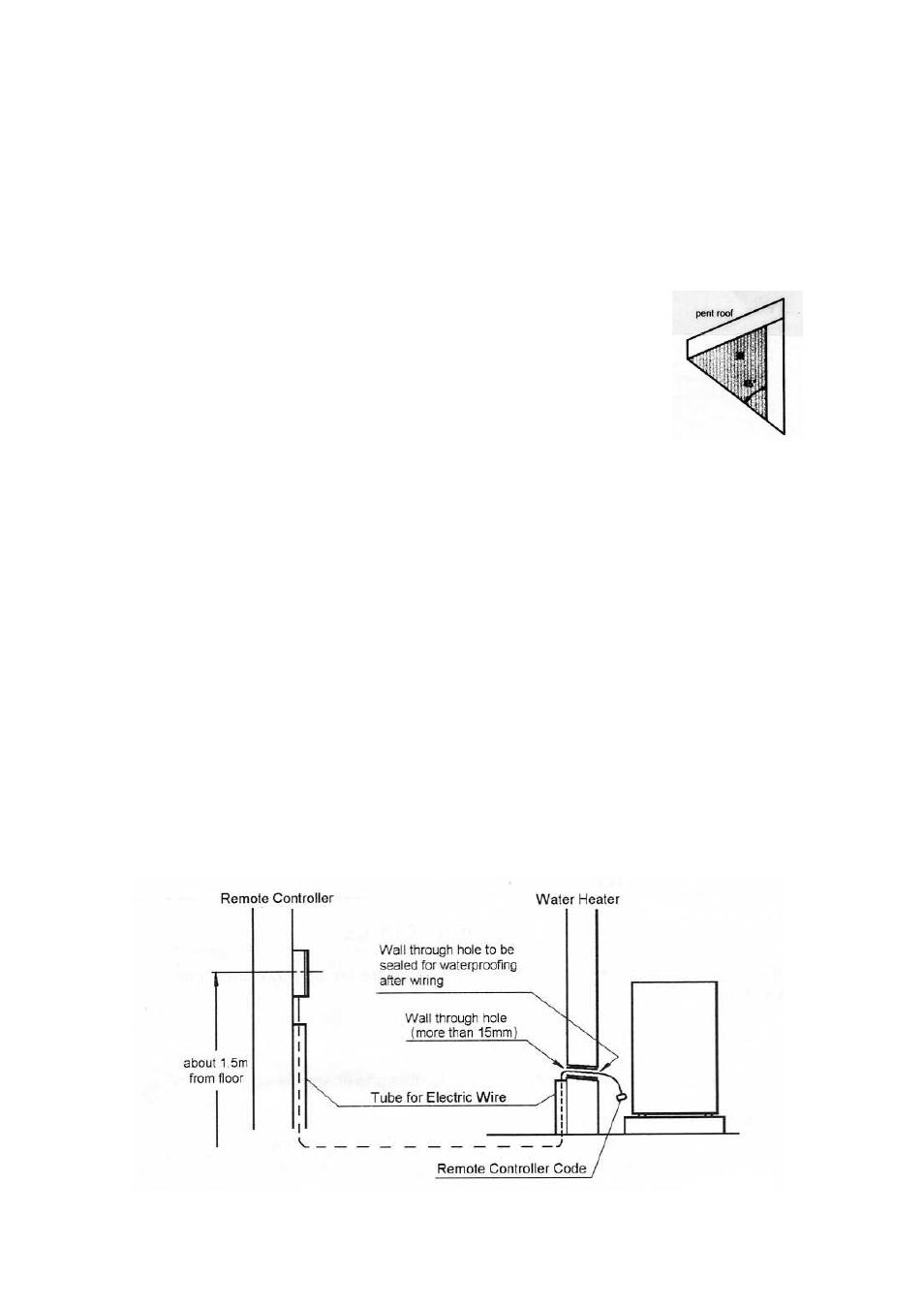

WIRING FOR REMOTE CONTROL CORD
