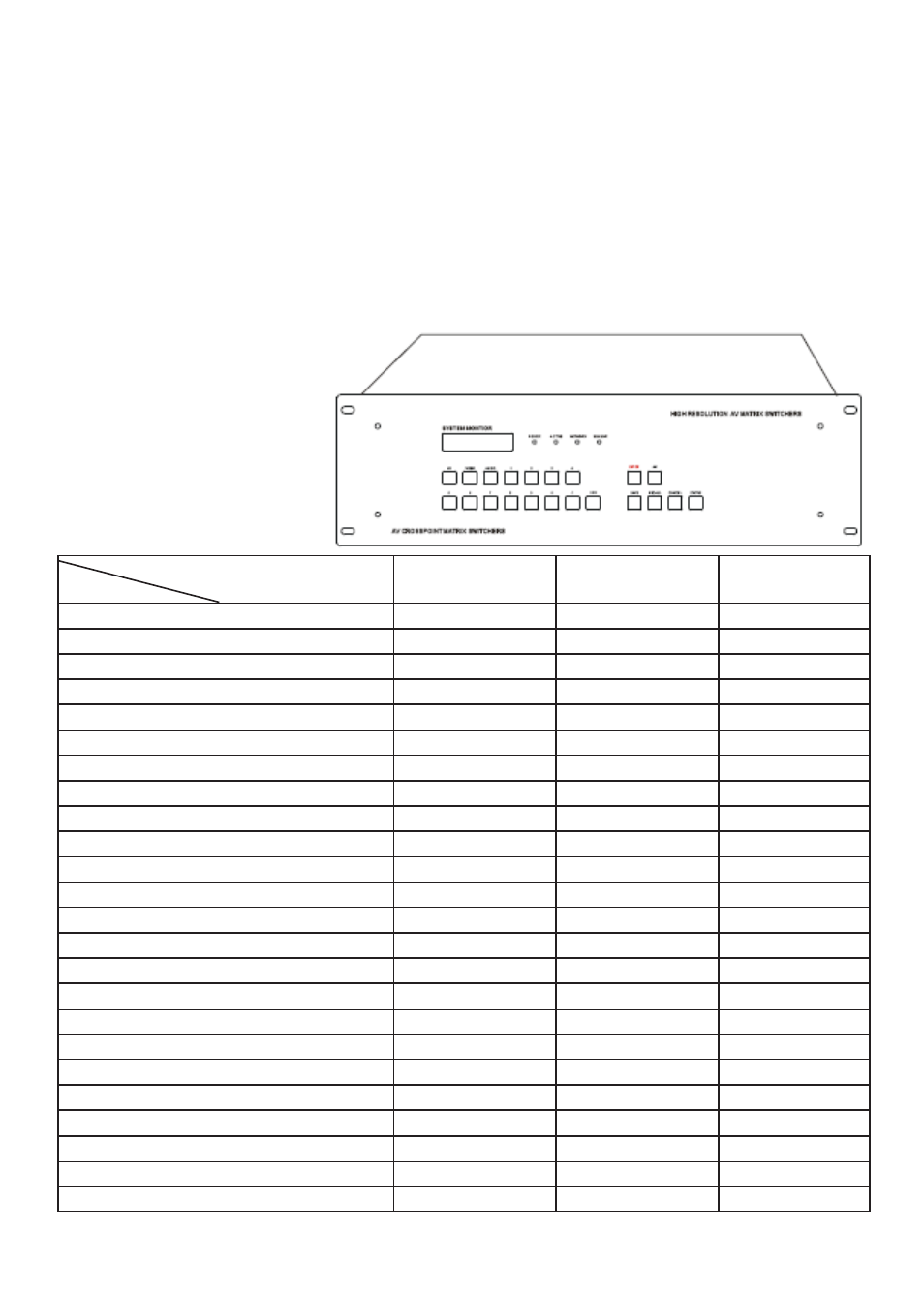

2.0 Introduction
The AV series switcher is a high-performance professional computer and audio signal switcher that
can be used for cross switching multiple computer and audio signals. The AV series switcher mostly ap-
ply in broadcasting TV engineering, multi-media meeting room, big screen display engineering, television
education, command control center or for other like applications. It provides power-fail locale protection
function, LCD displaying, shortcut selecting and saving function. With RS232 interface, it can be controlled
with PC, remote control system and any other 3rd party control systems. This user manual takes VGA0808
as the example; other models can take reference from it too.
Specifications
Models
A/V Input
A/V Output
RS232 Interface
LCD Display
MATRIX AV0404
4
4
√
×
MATRIX AV0802
8
2
√
√
MATRIX AV0804
8
4
√
√
MATRIX AV0808
8
8
√
√
MATRIX AV1604
16
4
√
√
MATRIX AV1608
16
8
√
√
MATRIX AV1616
16
16
√
√
MATRIX AV2408
24
8
√
√
MATRIX AV2416
24
16
√
√
MATRIX AV2424
24
24
√
√
MATRIX AV3208
32
8
√
√
MATRIX AV3216
32
16
√
√
MATRIX AV3224
32
24
√
√
MATRIX AV3232
32
32
√
√
MATRIX AV4832
48
32
√
√
MATRIX AV4848
48
48
√
√
MATRIX AV6432
64
32
√
√
MATRIX AV6448
64
48
√
√
MATRIX AV6464
64
64
√
√
MATRIX AV9664
96
64
√
√
MATRIX AV9696
96
96
√
√
MATRIX AV12864
128
64
√
√
MATRIX AV12896
128
96
√
√
MATRIX AV128128
128
128
√
√
