5.5 Send / Recieve Code List Tab

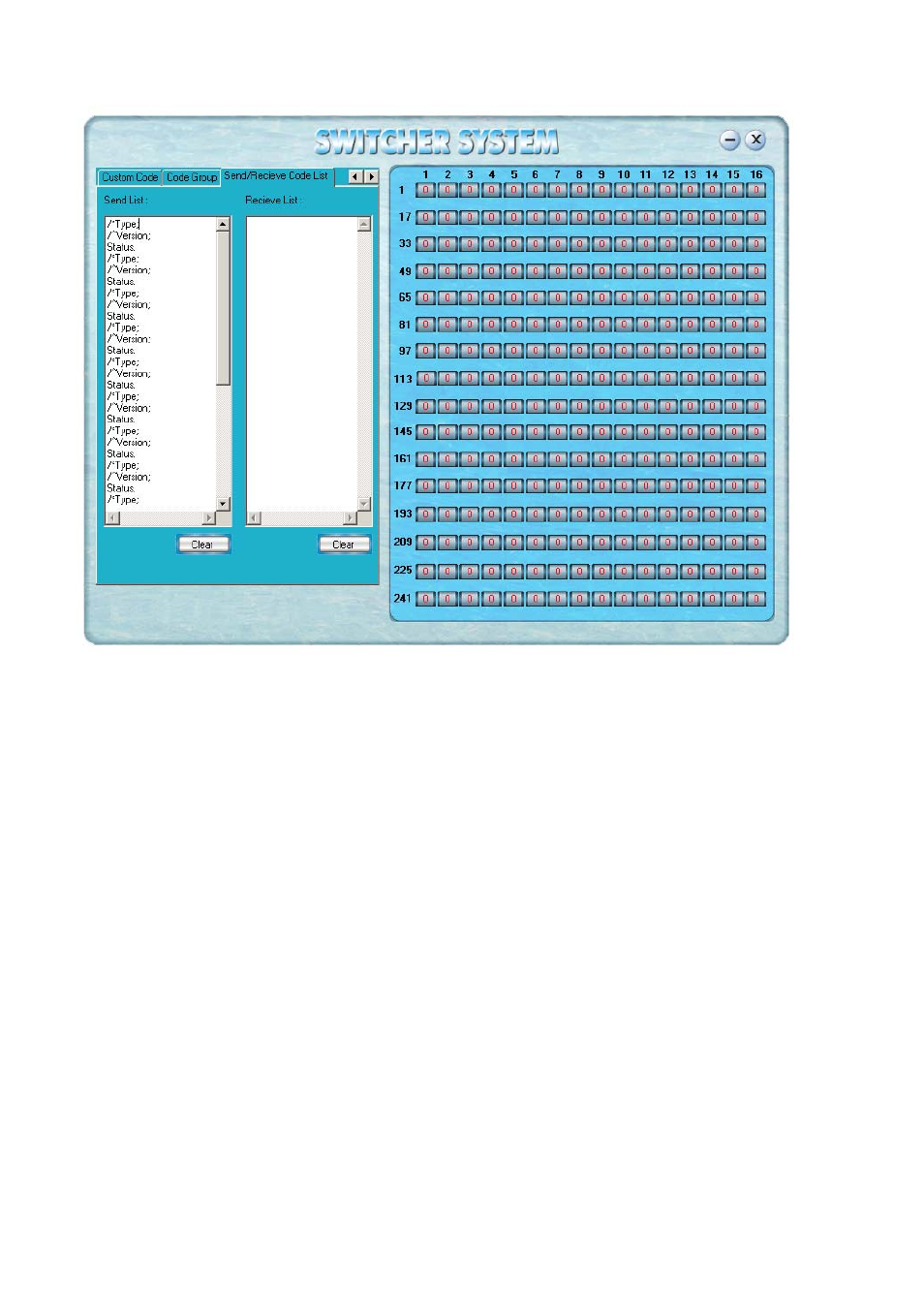

Send List window: Lists sent command code
Received List window: Lists feedback from the switcher
Clear: Clears either of the two lists
6.0 RS-232 Operation
With the application “Switcher 2.00” one is able to control and operate the RGB Matrix remotely
Communication protocol:
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
