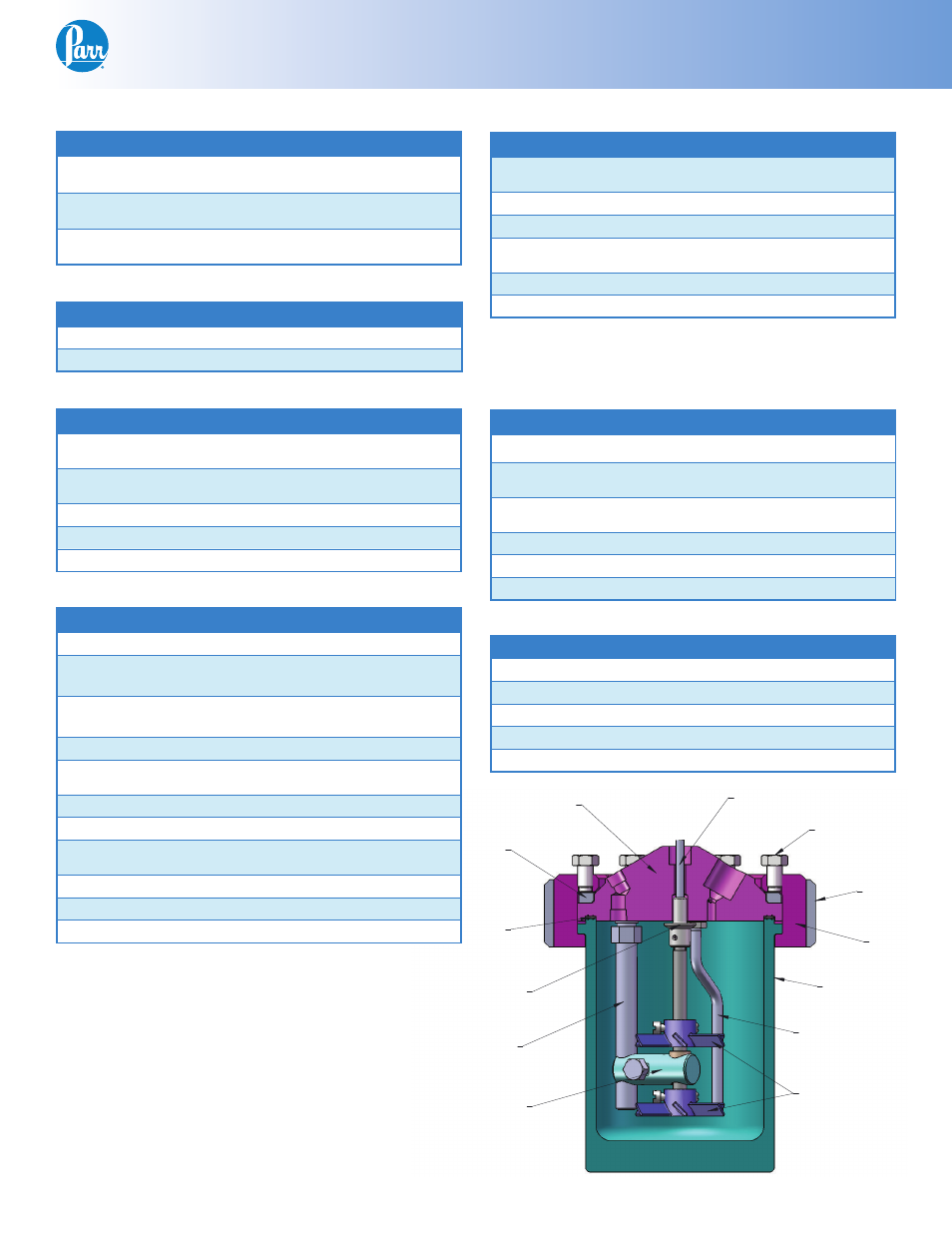

Parr Instrument Series 4530 - Manual (Page 17)

Floor Stand Reactors
w w w . p a r r i n s t . c o m 17
NOTE: SEE 4530MANUAL FILE FOR PG 3
MOLINE, ILLINOIS 61265
211 53rd STREET
APPROVED
BY
BY
SCALE
DWG NO. DATE
DRAWN
DESCRIPTION
REVISIONS FOR
DATE
1:1 SIZE 64 DO NOT SCALE DRAWING
TOLERANCES
IN INCHES
UNLESS OTHERWISE SPECIFIED
1/X .... ±1/64
.00 .... ±.010
.000 .... ±.003
ANGULAR ... ±1/2°
UNMARKED RADII .03"
MACHINED SURFACES:
C COMPANY.
DRAWN IN 3rd ANGLE PROJECTION OR BETTER
PROPRIETARY
NEITHER THE DRAWING
NOR INFORMATION
CONTAINED HEREIN
MAY BE COPIED,
REPRODUCED, OR
OTHERWISE USED
WITHOUT WRITTEN
PERMISSION FROM
PARR INSTRUMENT
PARR INSTRUMENT CO.
SHT 1 OF 3
02-25-08
388 MANUAL, FLOOR STAND REACT
4530MANUAL
PCW
SEAL
RING
CAP SCREW
DROP
BAND
SPLIT
RING
CYLINDER
SAMPLING/
INLET/TUBE
BRACKET
THERMOWELL
WITH BUSHING
STUB SHAFT
IMPELLER
STIRRER SUPPORT
HEAD
COMPRESSION
COUPLING
Gaskets & Seals
Part No. Description Code
48HC
Gasket, silver; thermowell and LD
drive
48HCFG
Gasket, gold plated; thermowell and
LD drive
315HC2 Head Gasket, PTFE FG
2741HCJV O-ring FKM OS
2741HCJK O-ring FFKM OS
External Fittings
Part No. Description Code
94CAAD Plug, 1/4” NPTM
A122VB
Needle Valve, 1/8” NPTM (Liquid
Sample)
A146VB
Needle Valve, angled 1/8” NPTM
(Gas Inlet & Gas Release)
208HC10 Valve adapter, two 1/8” NPTF
208HC15
Gage adapter, angled, two 1/4”
NPTF
234HC Compression Ring
209HC4 Bushing
260HC2
Valve extension, 1/8” NPT (Gas
Release)
288VBAD Male Connector, 3/8 T-1/4” NPTM
396HC3 Stirrer Plug LD
35HC Compression Nut, for plug LD
Part No. Description Code
420HC
Adapter, 1/8” NPTF to A socket
(Gas Inlet)
A472E2 Thermocouple, 1000 mL
A472E6 Thermocouple, 2000 mL
A888HC2
Safety Rupture Disc assembly
without disc (see 231M)
A2685HC Cooling Sleeve assembly LD
A740HC Cooling Sleeve assembly HD
Magnetic Stirrers
*See manual 234M for a full list of stirrers and parts.
Split Rings and Accessories
Part No. Description Code
A232HC Split ring pair with cap screws RVFG
A2255HC3
Split ring pair with cap screws,
latches
FHFG
232HCFDE
Cap screw, for A232HC and
A2255HC3
2245HC Split ring, pair RVOS
A2243HC Split ring, pair, with latches FHOS
A233HC Drop band with screw RV
Gages
Part No. Description
56HCPA Pressure gage, 4-1/2”, 0-100 psi
56HCPB Pressure gage, 4-1/2”, 0-200 psi
56HCPC Pressure gage, 4-1/2”, 0-600 psi
56HCPD Pressure gage, 4-1/2”, 0-1000 psi
56HCPF Pressure gage, 4-1/2”, 0-2000 psi
Part No. Description Code
380HCF
Cap screw for A380HC/
A1404HC bracket
299HC
Bushing PTFE for A380HC/
A1404HC bracket
299HCKF
Bushing, graphite for A380HC/
A1404HC bracket
Thermowell
Part No. Description
265HC7 Thermowell 1000ml
265HC12 Thermowell 2000ml
External Fittings (Continued) Stirrer Support Brackets (Continued)
