Fremont (MAXREFDES6#) Nexys 3 Quick Start Guide
5
3. Included Files
The top level of the hardware design is a Xilinx ISE Project Navigator Project (.XISE) for
Xilinx ISE version 13.4. The Verilog-based HDL design instantiates the MicroBlaze core,
the support hardware required to run the MicroBlaze and the peripherals that interface
to the Pmod ports. This is supplied as a Xilinx software development kit (SDK) project
that includes a demonstration software application to evaluate the Fremont subsystem
reference design. The lower level c-code driver routines are portable to the user’s own
software project.

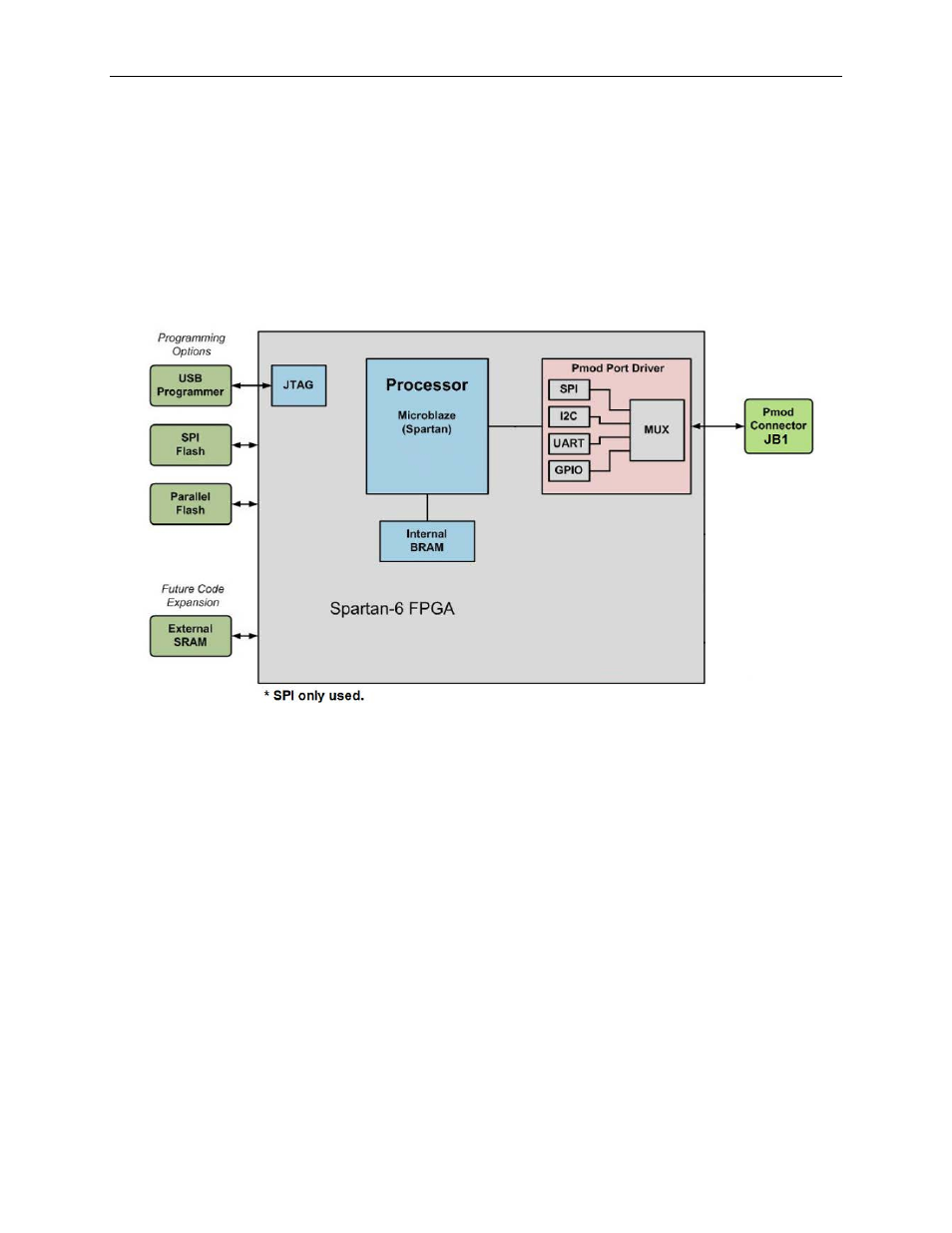

Figure 3. Block Diagram of FPGA Hardware Design
