NVR 10 Quick Start Guide 1

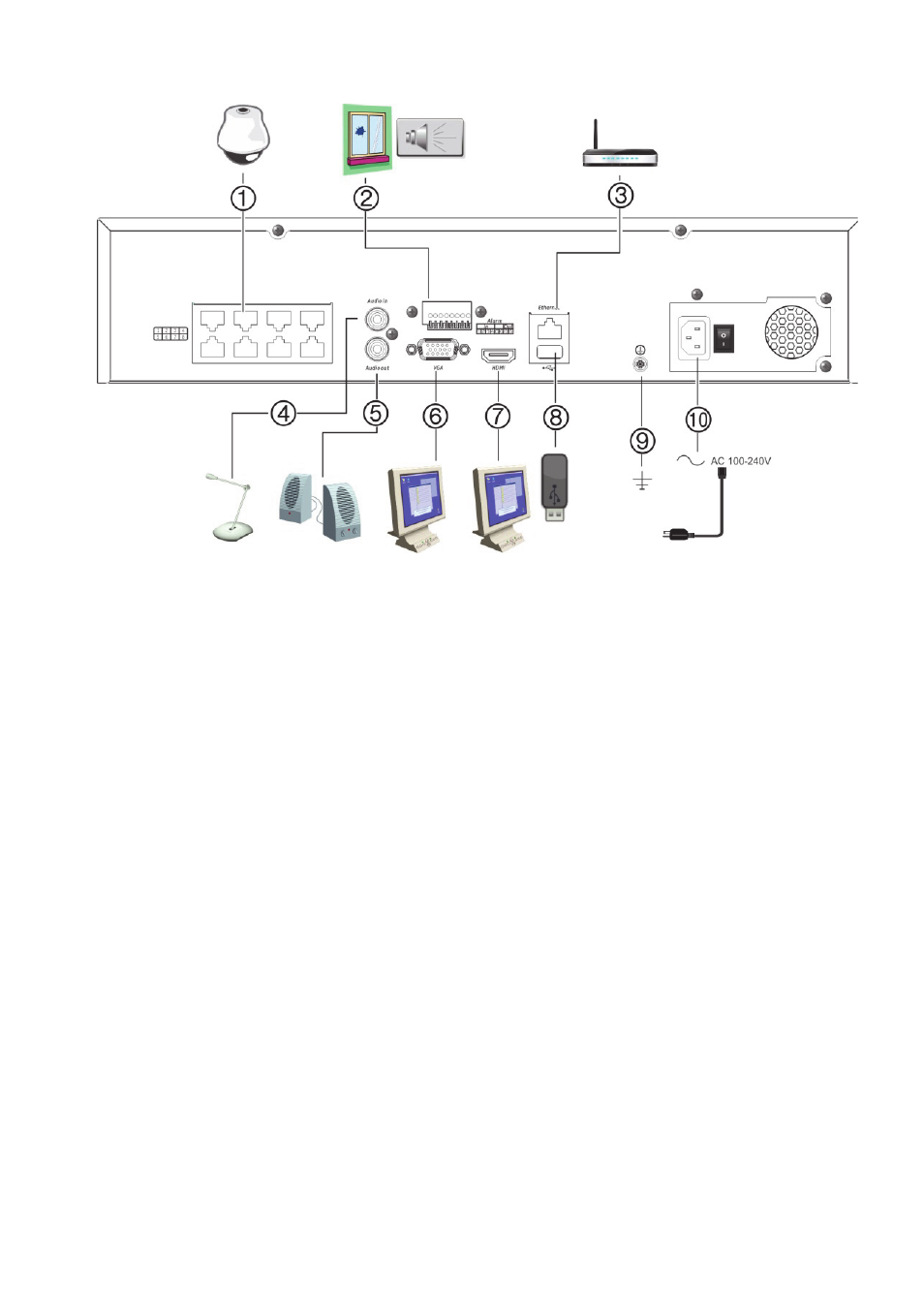

Figure 1: Back panel connections (8-channel PoE shown)
1. Embedded ports to connect up to eight IP
cameras (depending on model).
2. Connect up to four alarm inputs and one alarm
relay output.
3. Connect to a network.
4. Connect an RCA connector for audio input
5. Connect to speakers for audio output.
6. Connect to a VGA monitor.
7. Connect to an HDTV. The HDMI connection
supports both digital audio and video.
8. Universal Serial Bus (USB) 3.0 port. Connect to
an additional device such as a USB mouse,
CD/DVD burner or USB HDD.
9. Connect to ground.
10. Connect to a power cord.
