1BChapter 2: Installation
TruVision Mini PTZ 12X Camera User Manual 13
3. Place the switches that correspond to those values in the On position.
4. Carefully record the site ID of each dome camera installed.
Table 5: DIP switch positions and equivalent values
DIP switch position number 1 2 3 4 5 6 7 8 9 10
Equivalent value 1 2 4 8 16 32 64 128 256 512

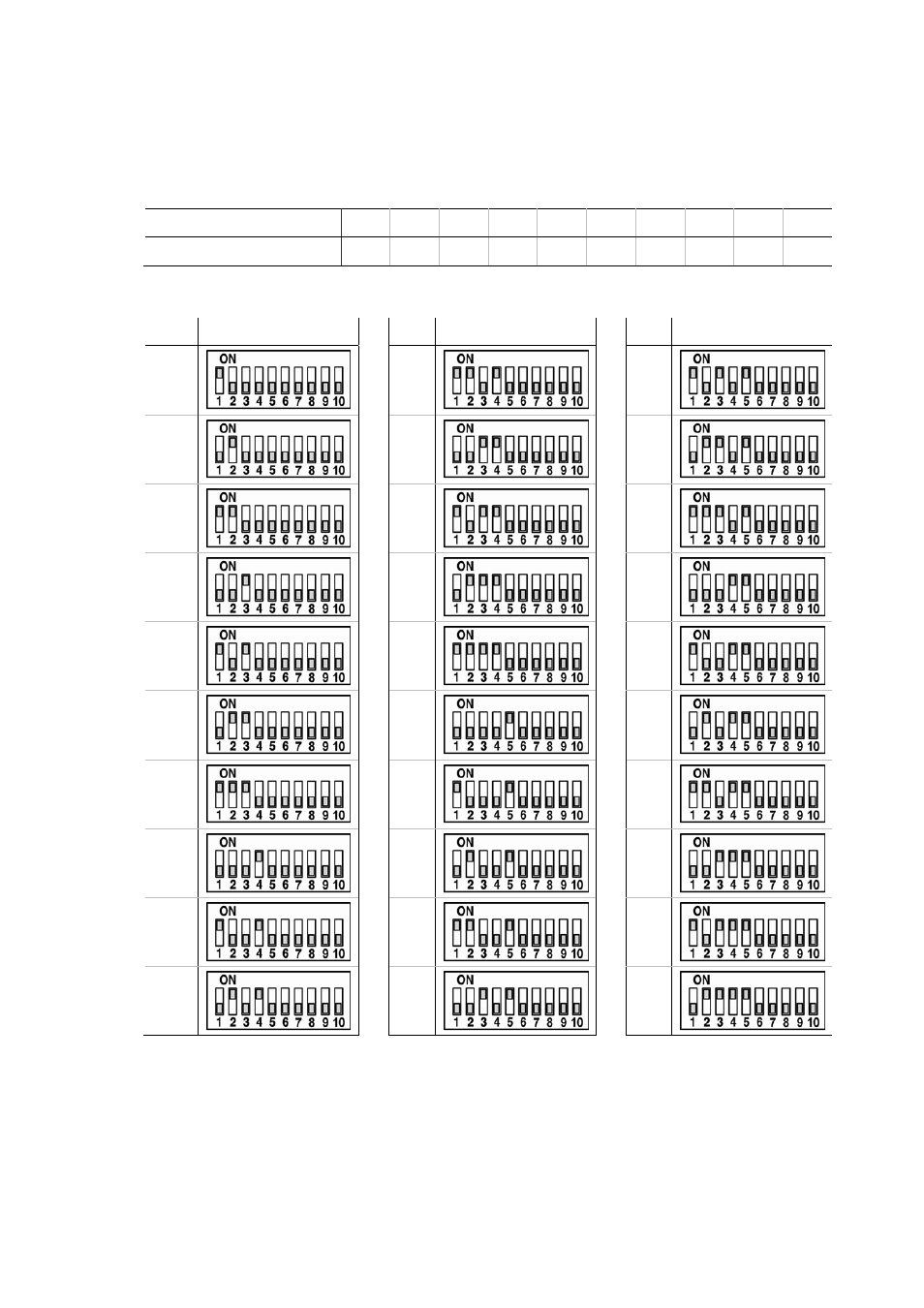

Table 6: Dome camera site ID DIP switch settings for dome cameras 1 to 30
Unit DIP switch Unit DIP switch Unit DIP switch
1 11 21
2 12 22
3 13 23
4 14 24
5 15 25
6 16 26
7 17 27
8 18 28
9 19 29
10 20 30
