or raise Nimbie using the provided legs to increase space underneath
for more discs.
Important:
Nimbie will stop operation if a rejected disc cannot clear
the Reject Disc Slot.

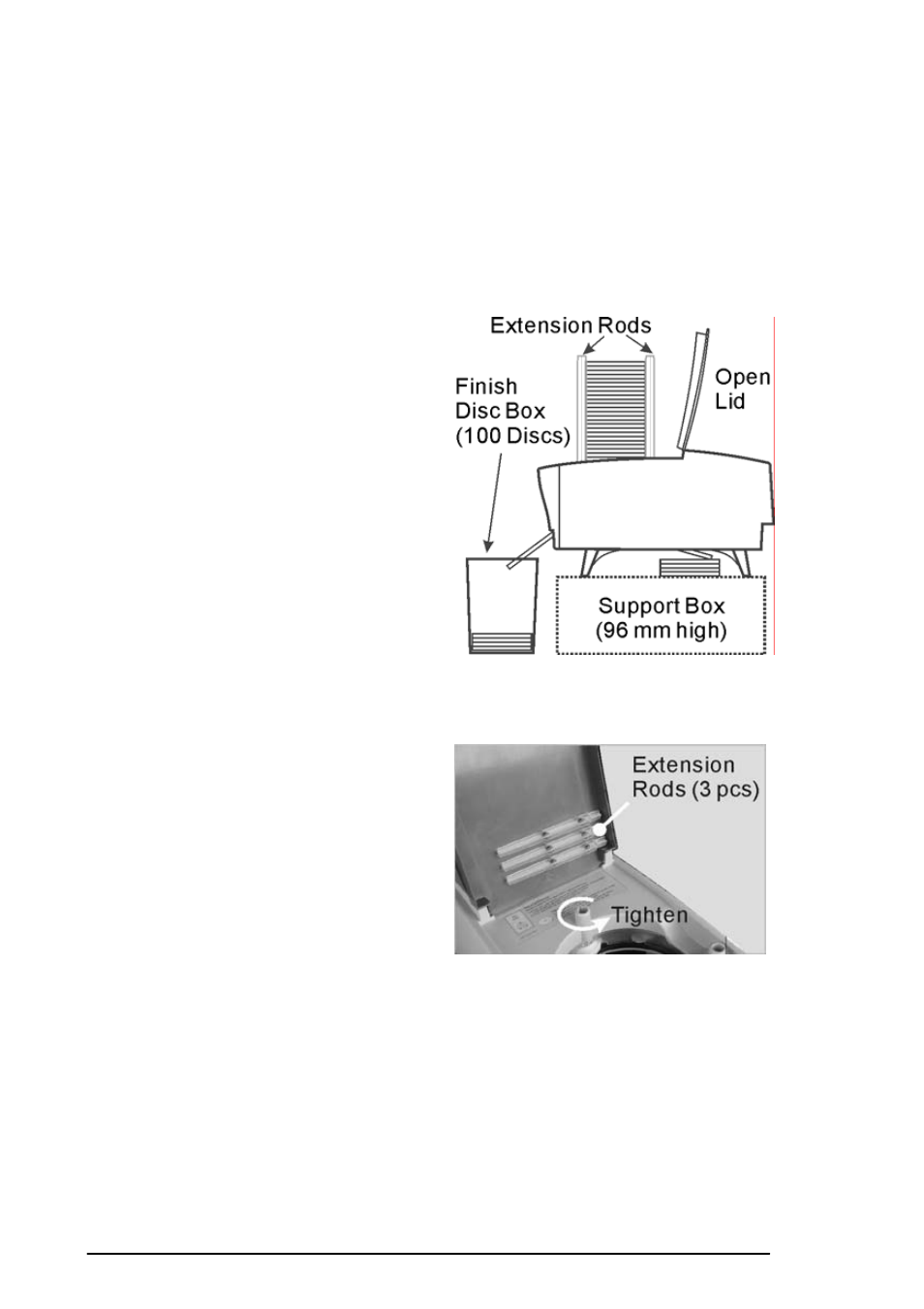

More Than 30 Discs in One Session
Using the extension rods, Nimbie
can process 100 or more discs
without refilling. To increase
Nimbie’s capacity to 100 discs,
please follow the instructions below:
1) Open the Blank Disc Storage
Lid.
2) Remove the extension rods
from the lid’s underside.
3) One after another align the rods
into the three holes on the disc
loader, then, gently turn the rods
counterclockwise to make sure
they are firmly attached;
4) Use a suitable box to raise Nimbie approximately 96 mm high to
account for the output of 100 or
more discs.
5) Use the alignment pad to
appropriately position the Finish
Disc Bin below the Finish Disc
Slot. The Finish Disc Bin may
be a spindle box or a container
with enough depth to
accommodate 100 or more
discs in a session.
Since Nimbie is equipped with a FIFO (First-In-First-Out) disc loader,
you may simply refill discs before the disc loader becomes empty.
This will allow an unlimited number of additional discs to be processed
in one session, as long as the Finish Disc Bin is continually emptied.
To remove the extension rods from the disc loader, turn the rods
clockwise and pull them upward vertically. When not using the rods,
return them to their original position on the lid’s underside.
Automated Multiple-Master-Disc Duplication
