B&C Technologies EL-6 Windows User Manual
Page 14

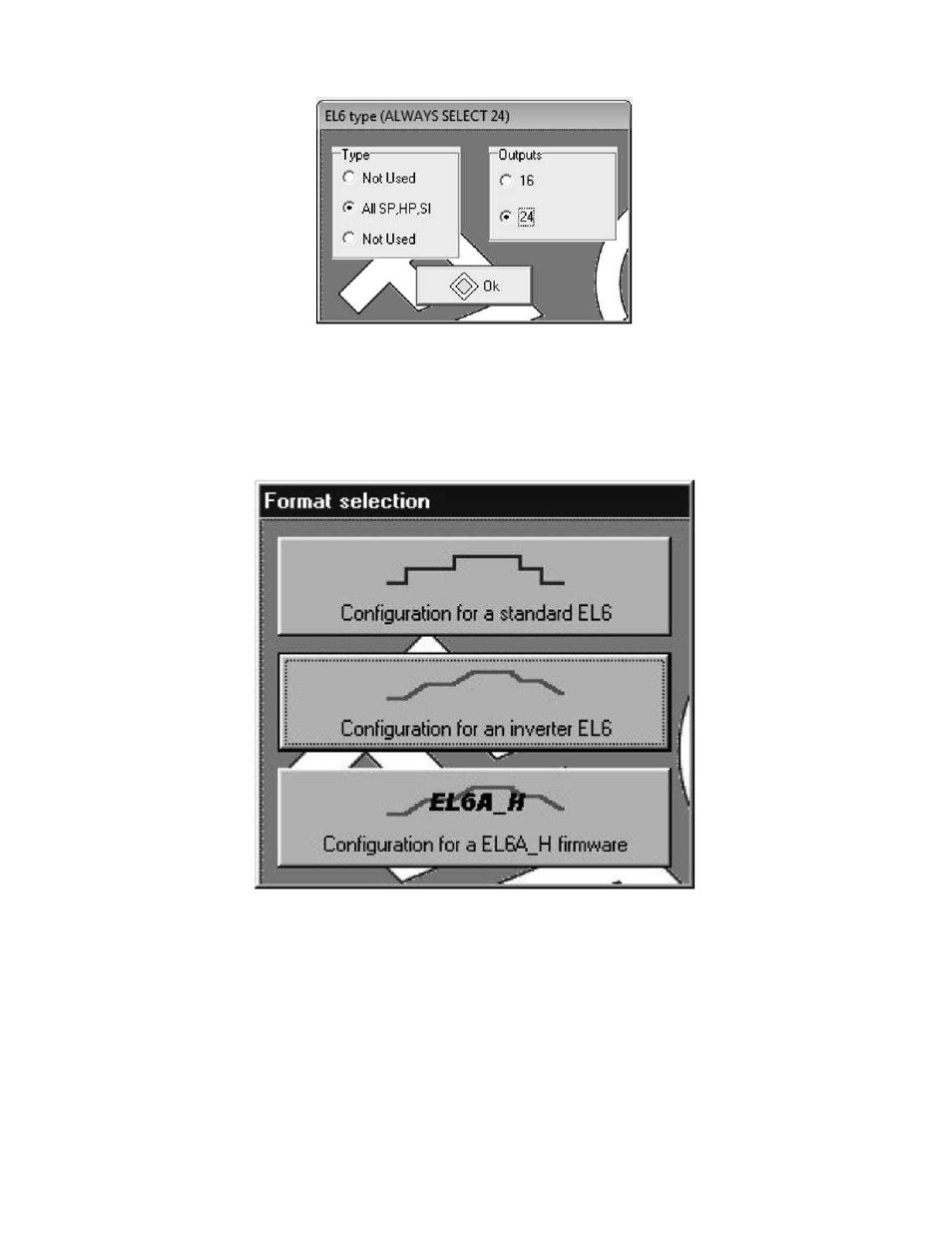

Figure 3.2: EL6 New Formula Dialog Box
Always select the middle button, EL6 Inverter for B&C Technologies machines. Once the file is
imported, it can be modified and handled normally. When saved, the file will be saved in the new
.L62 format.
Figure 3.3: Import .EL6 Format Dialog
File — Print
When this command is executed, the following window shown in figure 3.4 on page 12 opens. It
is used to select which portions of the file content are to be printed.
Help — About
When this command is executed, the following window shown in figure 3.5 on page 12 opens.
This shows the currently installed version of the EL6 Win 2 software - the current version is 2.00.24.
11
