REE-5017 1 Installation Guide
Installation Guide
Relay Module, Fan and Proportional Reheat for NC Valves
REE-5017
Mounting 1
Connections and Wiring 1
Troubleshooting 2
Maintenance 2
Important Notices 2
More Information 2
CAUTION
Do not set the fan setpoint below 0.6
VDC, or else the fan may lock in the
On position.

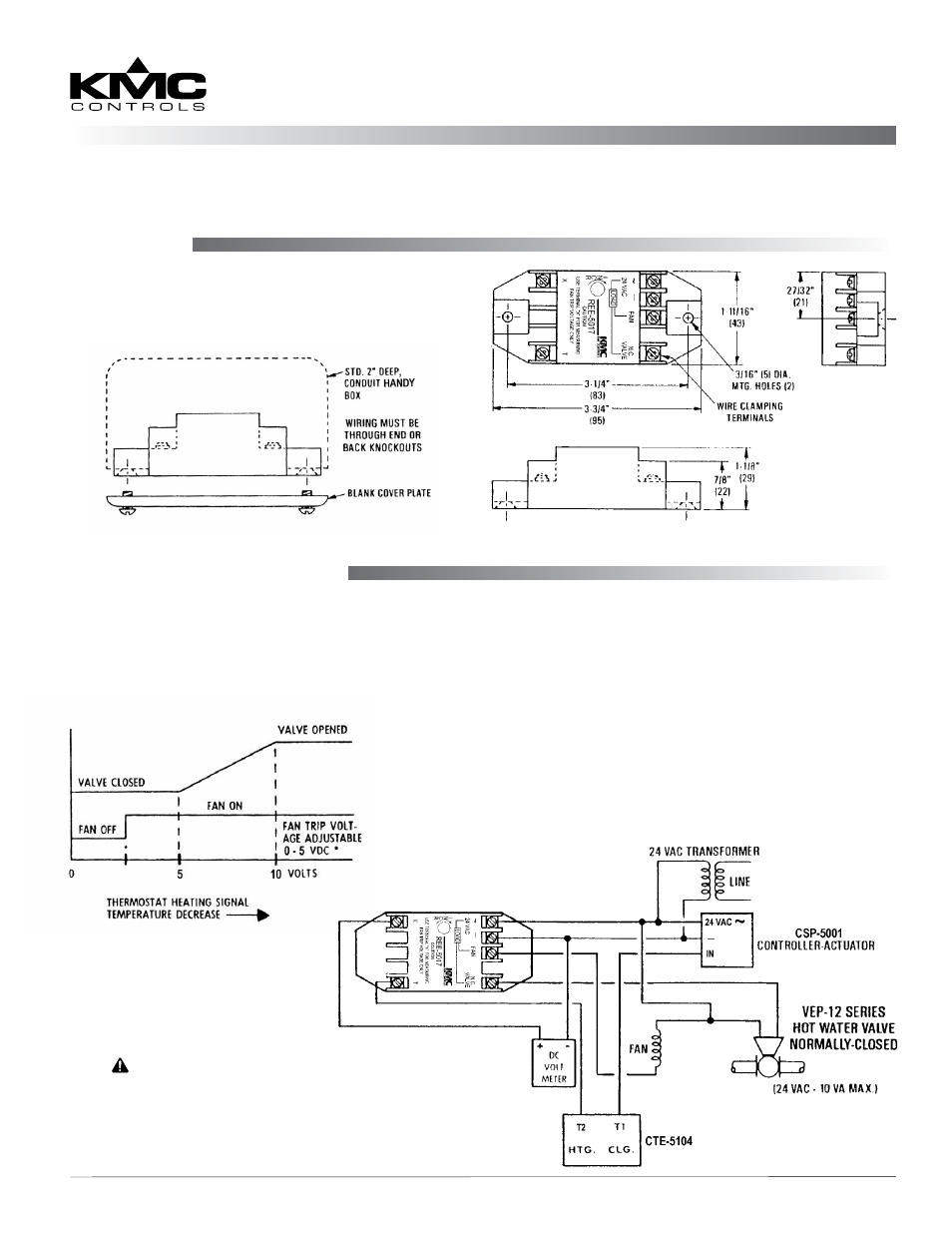

The module may be mounted directly to a control
box surface or in a 2 x 4" electrical handy box. Add a
blank cover to conceal the module if desired.
Mounting
Connections and Wiring
Wire as shown for providing proportional reheat
to an electric hot water valve with an MEP-3001
actuator. Supply the relay with 24 VAC (+20%/–15%)
from a Class 2 transformer. (Use wire size of 14 to 22
AWG, stranded.)
The fan starting point is adjustable so that optimum
use can be made of the warm air in the return air
plenum before opening the hot water valve. A DC
voltmeter is shown across “X” and “9” terminals.
This can be used to measure the fan setpoint for
recalibration. The setpoint is factory-set at 2.5 VDC.
(Do not set the fan setpoint below 0.6 VDC, or else
the fan may lock in the On position.)
All dimension are in inches (mm)
