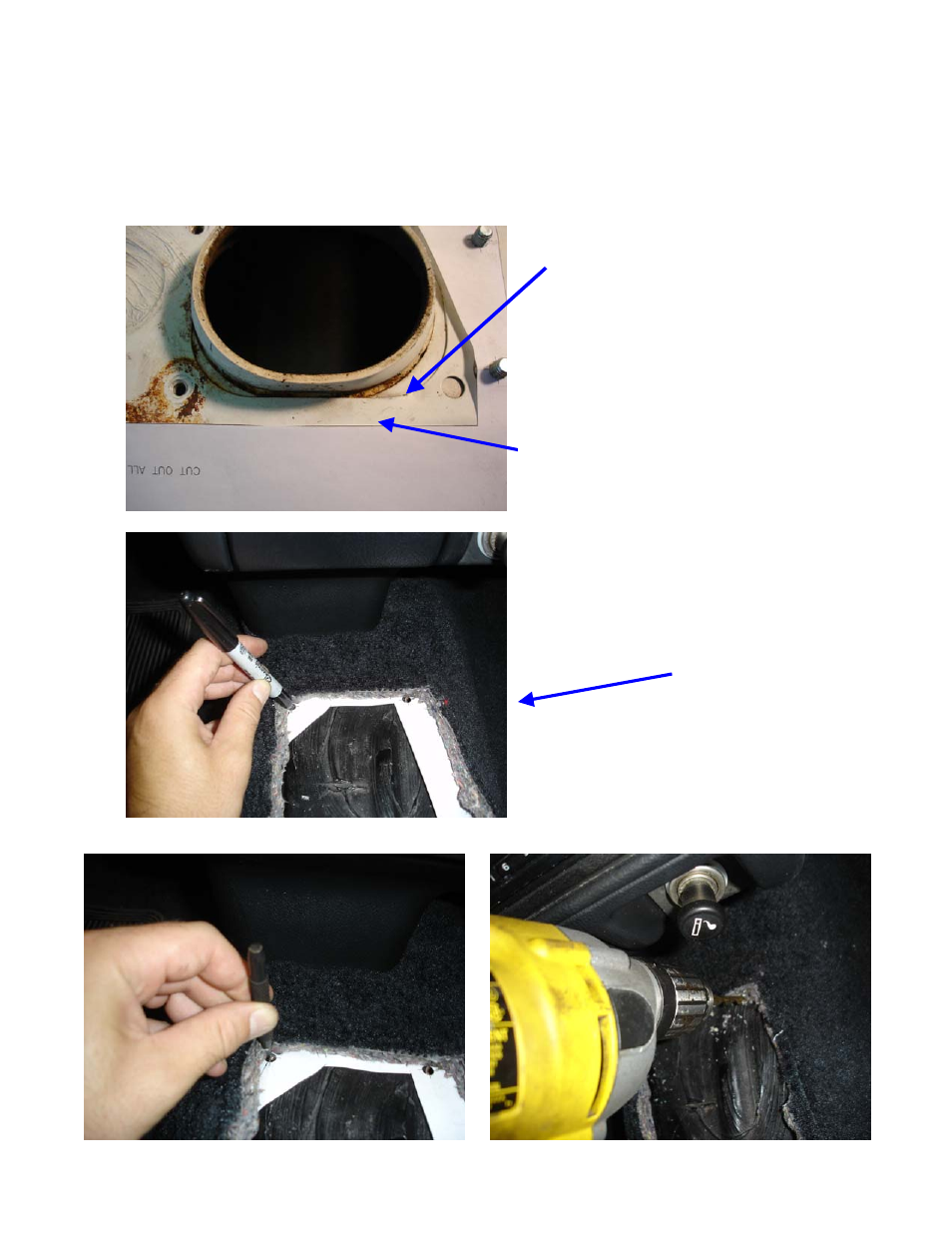

Left edge of sheet metal
surrounding shifter hole
Longer straight side of
template (make parallel)
2. MODIFYING YOUR CHASSIS (continued…)
5. The paper template is a bit flexible, so as best you can, keep the longer straight
side of the template parallel with the left edge of the sheet metal surrounding
the shifter hole; then mark the centers of the two upper holes. Before marking
the cut-out for your chassis, we will confirm the hole locations in the future
steps.
Once
parallelism
is
confirmed,
mark
the
centers
of
the
holes
for
drilling.
6. Center punch and drill two 9/32” holes where marked.
