2. MODIFYING YOUR CHASSIS (continued…)

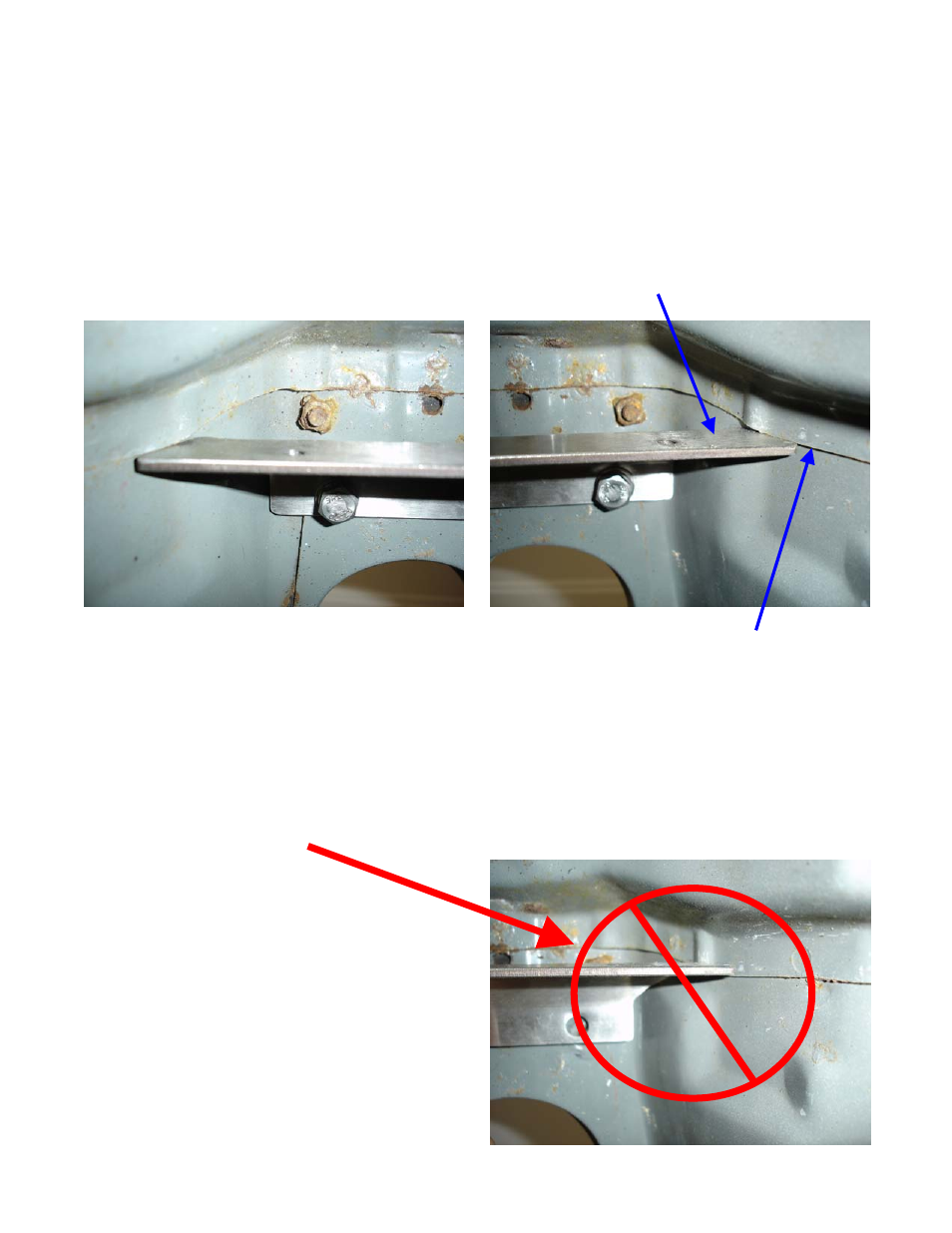

4. To confirm position of the holes just drilled, use the rear shifter mount bracket
along w/ the provided M8 cap screws to position the bracket underneath the
vehicle as shown. It is not necessary to use the M8 locknuts at this time, as you
can hold the screws in place while confirming position. The back side of the
rear shifter mount bracket should just touch (desired position) or may be a small
distance away from the edge of an extra layer of chassis sheet metal on each
side once the hardware is in place.
Back side of rear shifter mount bracket
Edge of extra layer of chassis sheet metal
UNACCEPTABLE
If the holes drilled position the rear
shifter mount bracket in this
fashion, you will need to slot the
holes out to position it correctly, as
the rear bracket will not mount
properly with this interference.
