TRACTOR - - MODEL NUMBER 917.273648

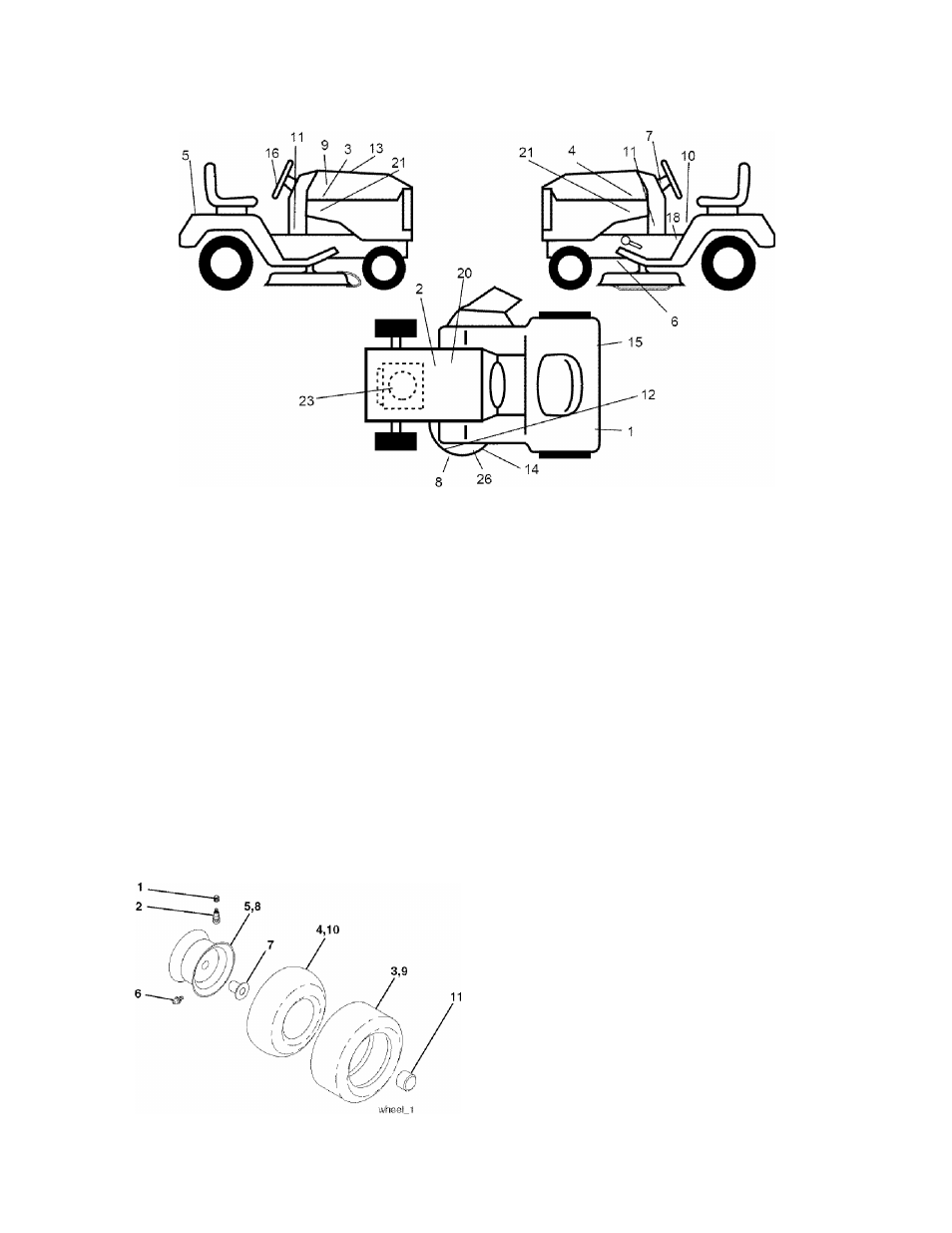

DECALS
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
187407
Reflector, LH
14
160396
Decal, V-Belt, Schematic
2
138047
Decal, Battery, Diehard, Sears
15
187408
Decal, Reflector, RH
3
186242
Decal, Hood RH
16
164065
Decal, Steering Wheel
4
186243
Decal, Hood LH
18
156811
Decal, Fender Opr.
5
186572
Decal, Fender Craftsman
20
149516
Decal, Battery
6
146046
Decal, V-Belt, Drive Schematic
21
186331
Decal, Hood, Side Panel
7
164096
Decal, Dash
23
189020
Decal, Engine
8
179128
Decal, Deck, Caution
26
181470
Decal, Deck level
9
192829
Decal, Replacement Hood
- -
178392
Decal, Chassis Disconnect
10
156439
Decal, Fender, Danger
- -
184310X428
Pad, Footrest, ST/LT, LH
11
189088
Decal, Panel, Dash
- -
184311X428
Pad, Footrest, ST/LT, RH
12
172331
Decal, Mower, Heavy-Duty
- -
192857
Manual, Owner's, English
13
133644
Decal, Replacement Parts
- -
192858
Manual, Owner's, Spanish
WHEELS &TIRES
KEY
NO.
PART
NO.
DESCRIPTION
1
59192
Cap Valve Tire
2
65139
Stem Valve
3
106222X
Tire FTs 1 5 x 6 0 - 6 Service
4
59904
Tube Front (Service Item Only)
5
106732X624
Rim Asm 6” front Service
6
278H
Fitting Grease (Front Wheel Only)
7
9040H
Bearing Flange (Front Wheel
8
106108X624
Only)
Rim Asm 8” rear Service
9
122082X
Tire RTs 20
X
10-8 C Service
10
7152J
Tube Rear (Service Item Only)
11
104757X428 Cap Axle BIk 1 50 x 1 00
- -
144334
Sealant, Tire (10 oz.Tube)
NOTE:
All component dimensions given in U.S. inches
1 inch = 25.4 mm
