TRACTOR - - MODEL NUMBER 917.273648

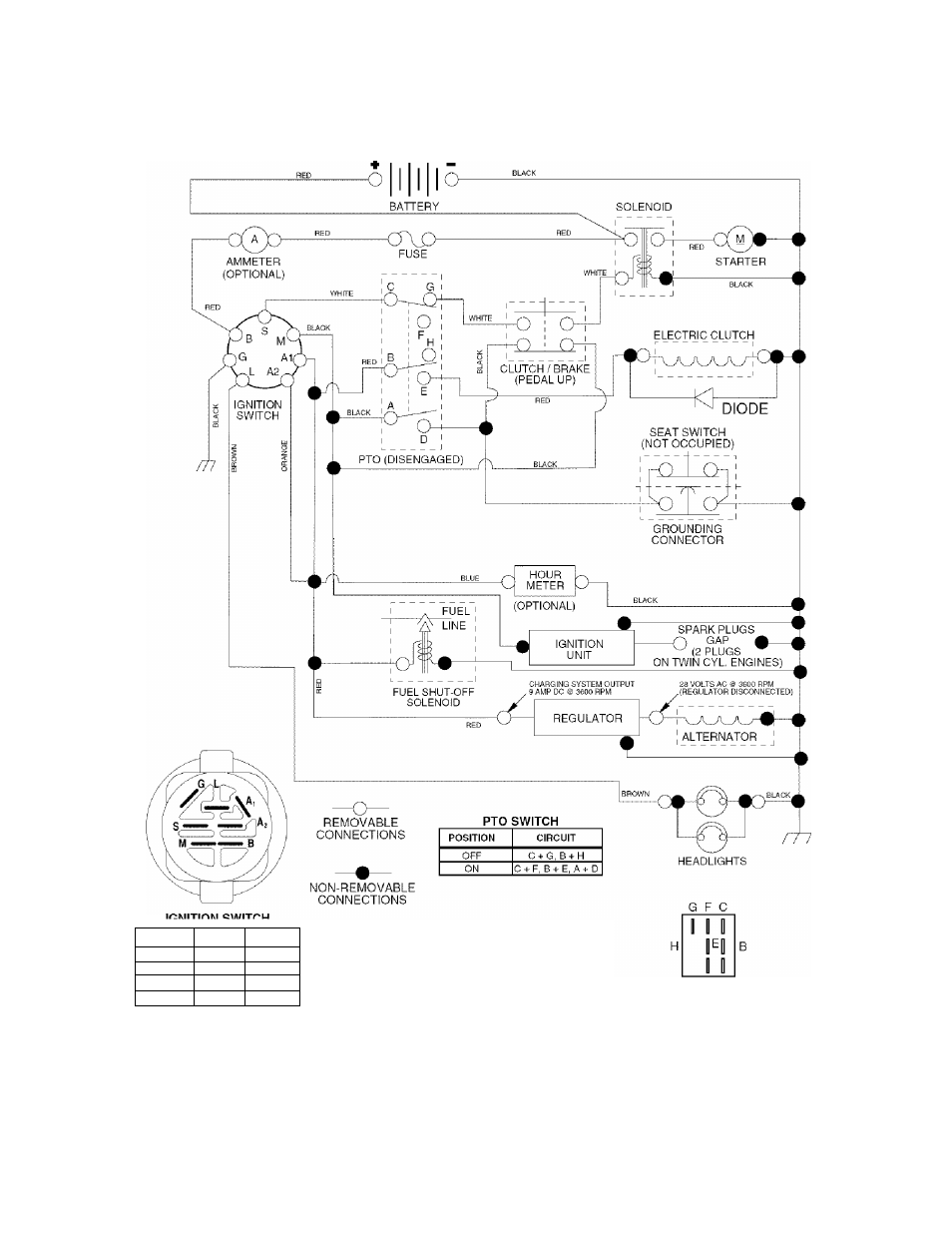

SCHEMATIC

POSITION CIRCUIT

“MAKE”

OFF

M + G + A1

NONE

ON + LIG HTS

B + A1

L + A2

ON

B + A1

NONE

START

E + S +A1

NONE

02781

WIRING INSULATED CLIPS

NOTE:

IF WIRING INSULATED

CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO
PROPERLY SECURE YOUR

WIRING.

D A

33
