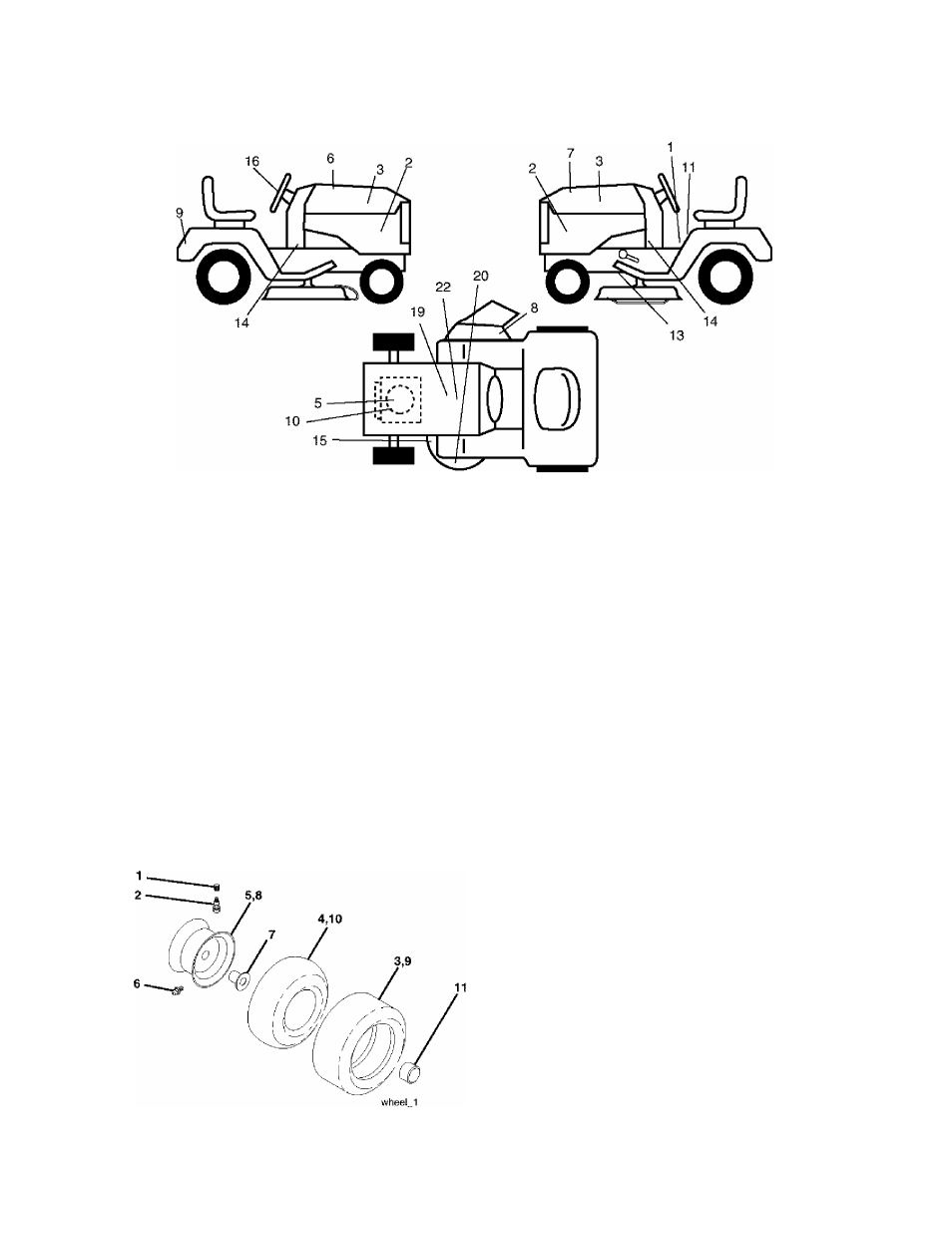

TRACTOR - - MODEL NUMBER 917.273481
DECALS
KEY PART
KEY PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
156439
Decal Fender Danger Sears
15
160396
Decal Mower Drive Schematic
2
186367
Decal Hood Side
16
164065
Decal Steering
3
186366
Decal Hood
19
138047
Decal, Battery Diehard Sears
5
187084
Decal Engine H/P
20
172331
Decal Deck Mower EZ3
6
133644
Decal Maint Customer Sears
22
149516
Decal Battery
Dom
- -
169210
Decal By Pass Lt Hydro
7
187028
Decal Replacement Srs
- -
138311
Decal Lift Handle
8
179128
Decal Deck
- -
174998X428
Pad Footrest Lh STLT
9
186572
Decal Fender Craftsman
, .
175542X428
Pad Footrest Rh STLT
10
177918
Decal Engine
, .
187044
Manual, Owner’s (English)
11
187103
Decal Fender STLTH Oper Inst
- -
187045
Manual, Owner’s (Spanish)
13
146046
Decal V-belt Dr Sch Tractor E
14
187085
Decal Dash Panel
WHEELS & TIRES
KEY PART
NO. NO.
1
2
3
4
5
6
8
9
10
11
59192
65139
177750
59904
106732X624
278H
9040H
106108X624
177751
7152J
104757X428
144334
DESCRIPTION
Valve Cap, Tire
Stem, Valve
Tire, Front
Tube, Front Tire (Not Provided,
Service Item Only)
Rim, Front
Fitting, Grease (Front Vt/heel
Only)
Bearing, Fiange (Front Wheei
Only)
Rim, Rear
Tire, Rear
Tube, Rear Tire (Not Provided,
Service Item Only)
Cap, Axle
Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
