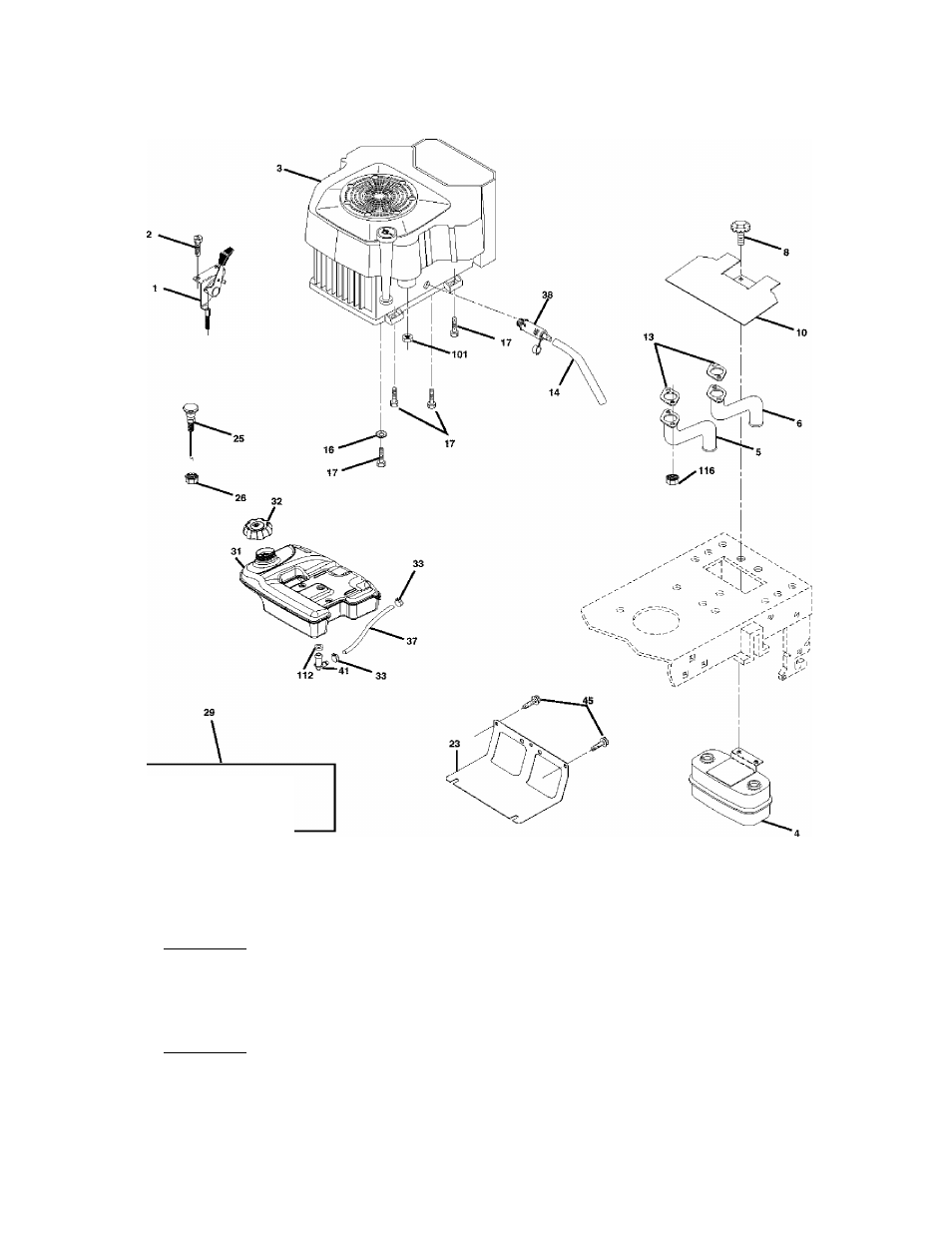

ENGINE
TRACTOR - - MODEL NUMBER 917.273481
OPTIONAL EQUIPMENT
Sp^rk Arrester
KEY PART
KEY PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
187065
Control Throttle
26
73920600
Nut, Keps 3/8-24 Unf
2
17720408
Screw Thd Cut 1/4-20 x 1/2
29
137180
Kit Spark Arrestor (Flat Scrn)
3
Engine, Kohler Model CV624
31
179022
Tank Fuel 4.0 Rear
(Order parts from engine mfg.)
32
179124X428
Cap Asm Fuel
4
149723
Muffler Asm Twin Lo-Tone
33
123487X
Clamp Hose Black
5
146699
Pipe Exhaust LH
37
8543R
Line Fuel
6
146700
Pipe Exhaust RH
38
181654
Plug Drain Oil
8
171877
Bolt 5/16-18 Unc X 3/4 w/Sems
41
139277
Stem Tank Fuel
10
146629
Shield Heat Muffler
45
17000612
Screw Hexwsh Thdr 3/8-16 x 3/4
13
Muffler Gasket (Order from
101
M73030800
Nut Flange
Engine Mfgr.)
112
3645J
Bushing
14
148456
Tube Drain Oil Easy
116
184362
Nut Hex Flange Toplock M8-1.25
16
11050600
Washer Lock Ext Tooth 3/8
17
17060624
Screw Thdrol 3/8-16 x 1-1/2
23
169837
Shield Heat
NOTE;
All component dimensions given in U.S. inches
25
145996
Choke Controi
1 inch = 25.4 mm
