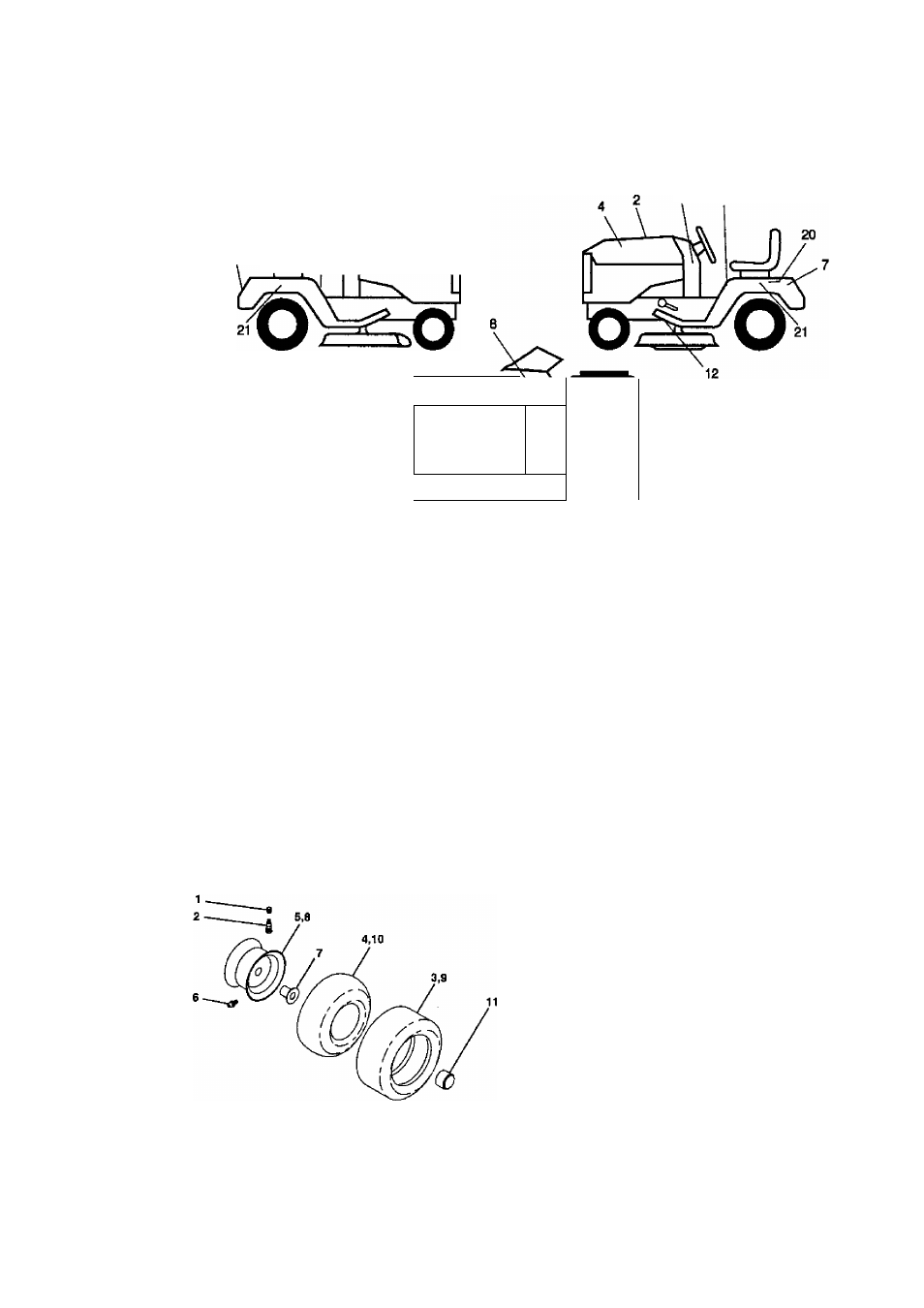

DECALS
TRACTOR - - MODEL NUMBER 917.270752
13 6
13 10
(U'Æ^
14
TT
1 1
1
Ü)
KEY
NO. PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1 156368 Decal, Oper. Instr. 12 146046 Decal, V-Belt Drive Schematic
2 174321 Decal, Replacement 13 167329 Decal, Dash Panel
3 171696 Decal, Hood, R.H. 14 160396 Decal, V-Belt Schematic
4 171697 Decal, Hood, L.H. 20 149516 Decal Battery Dngr/Psn Eng
5 167049 Decal, HP Engine 21 163207 Decal, Fender Sd. Wht
6 133644 Decal, Customer Maintenance - - 138311 Decal, Lift Handle
7 138047 Decal, Battery
- - 165800X428 Pad Footrest LH STLT
8 166887 Decal, Deck Mower EZ . . 165799X428 Pad Footrest RH STLT
9 163204 Decal, Fender, Craftsman - - 174801 Owner's Manual, English
10 156439 Decal, Fender Danger - - 174802 Owner's Manual, Spanish
WHEELS & TIRES KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
59192
65139
106222X
59904
106732X427
278H
9040H
106108X427
122082X
7152J
104757X
144334
DESCRIPTION
Cap Value Tire
Stem Value
Tire F Ts 15 X 6 0 - 6 Service
Tube Inner Front #35060
Rim Asm 6"front White Service
Fitting Grease
Bearing Flange
Rim Asm 8"rear White Service
Tire R Ts 20 X 10-8 Sen/ice
Tube Rear 9 5X8 Service
Cap Axle BIk 1 50 X 1 00
Sealant, Tire (10 oz. tube)
NOTE: Ail component dimensions given In U.S. inches
11nch = 25.4 mm
