Craftsman 917.270752 - Manual (Page 222)

TRACTOR - - MODEL NUMBER 917.270752

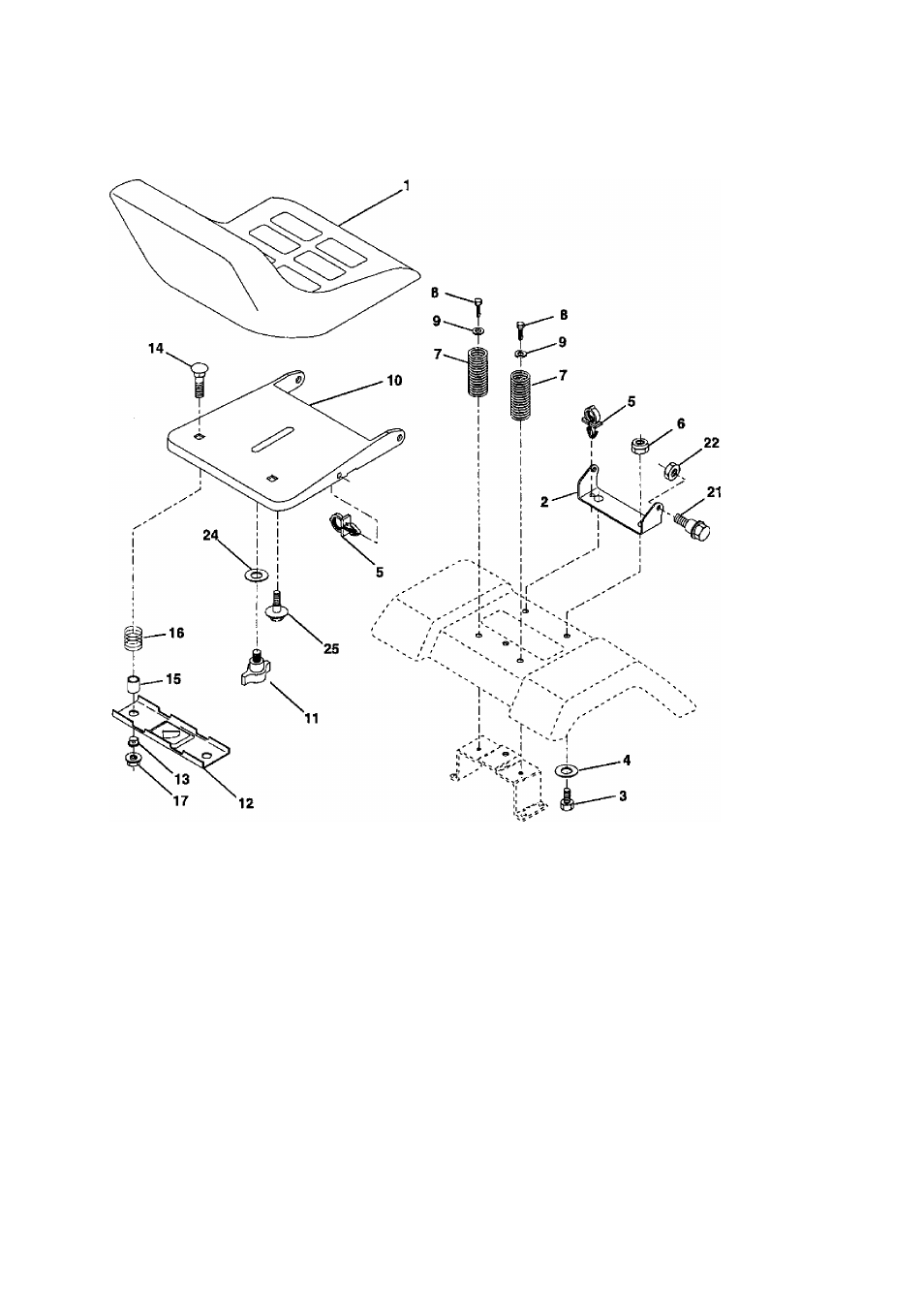

SEAT ASSEMBLY
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
12
140123
140551
71110616
19131610
145006
STD541437
124181X
17000616
19131614
155925
166369
121246X
DESCRIPTION
Seat
Bracket Pnt Pivot Seat (bik)
Bdt Fin Hex 3/8-16unc X1
Washer 13/32 X 3/4 X 10 Ga
Clip Push In Hinged
Nut Hex Lock w/lns 3/8-16 Unc
Spring Seat Cprsn 2 250 BIk Zl
Screw 3/8-16 X 1
Washer 13/32X1 X14 Ga
Pan Pnt Seat (bik)
Knob Seat Adj Wingnut
Bracket Pnt Mounting Switch
KEY PART
NO. NO.
13
14
15
16
17
21
22
24
25
121248X
72050412
134300
121250X
123976X
171852
STD541431
19171912
127018X
DESCRIPTION
Bushing Snap Bik Nyl 50 Id
Bolt Fldhd Sht Nk 1/4-20x1-1/2
Spacer Spilt 28 X 96 23nc
Spring Cprsn 1 27 Bik Pnt
Nut Lock 1/4 Lge Fig Gr 5 Zinc
Bolt Shoulder 5/16-18 Unc-2A
Nut Hex Lock w/lns 5/16-18
Washer 17/32 X1-3/16 X12Ga
Bolt Shoulder 5/16-18 X 62
NOTE; All component dimensions given In U.S.
Inches 1 inch = 25.4 mm
42
