I HA(;TUH--MUUI=L NUMBER 917.271641

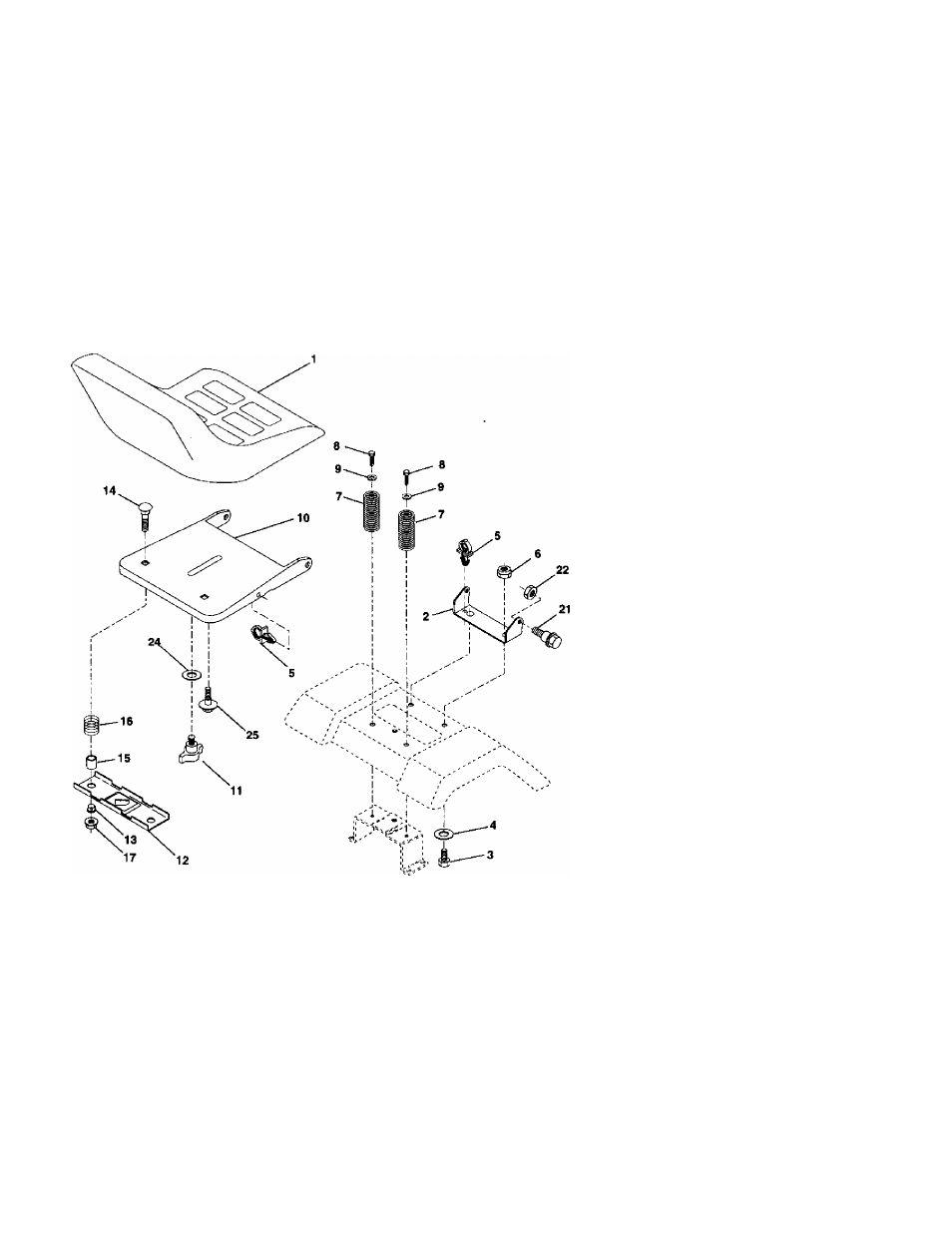

SEAT ASSEMBLY
KEY PART
KEY PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
140122
Seat 3350 BIk/bIk Craftsman
13
121248X
Bushing Snap Bik Nyl 50 Id
2
140551
Bracket Pnl Pivot Seat (bik )
14
72050412
Bolt Rdhd Sht Nk 1/4-20x1-1/2
3
71110616
Boll Fin Hex 3/8-16unc X1
15
134300
Spacer Spill 28 X 96 Zinc
4
19131610
Washer 13/32 X 3/4 X 10 Ga
16
121250X
Spring Cprsn 1 27 Bik Pnt
5
145006
Clip Push in Hinged
17
123976X
Nut Lock 1/4 Lge Fig Gr 5 Zinc
6
STD541437 Nut Hex Lock w/ins 3/8-16 Unc
21
171852
Bolt Shoulder 5/16-18 Unc-2A
7
124181X
Spring Seal Cprsn 2 250 BIk ZI
22
STD541431 Nut Hex Lock w/lns 5/16-18
8
17000616
Screw3/8-16X 1
24
19171912
Washer 17/32 X 1-3/16 X 12 Ga.
9
19131614
Washer 13/32 X1 X14Ga
25
127018X
Bolt Shoulder 5/16-18X62
10
174894
Pan Pnl Seat (bik )
11
166369
Knob Seat Adj Wingnul
NOTE; All component dimensions given in U.S. inches
12
121246X
Bracket Pnt Mounting Switch
1 inch = 25,4 mm
