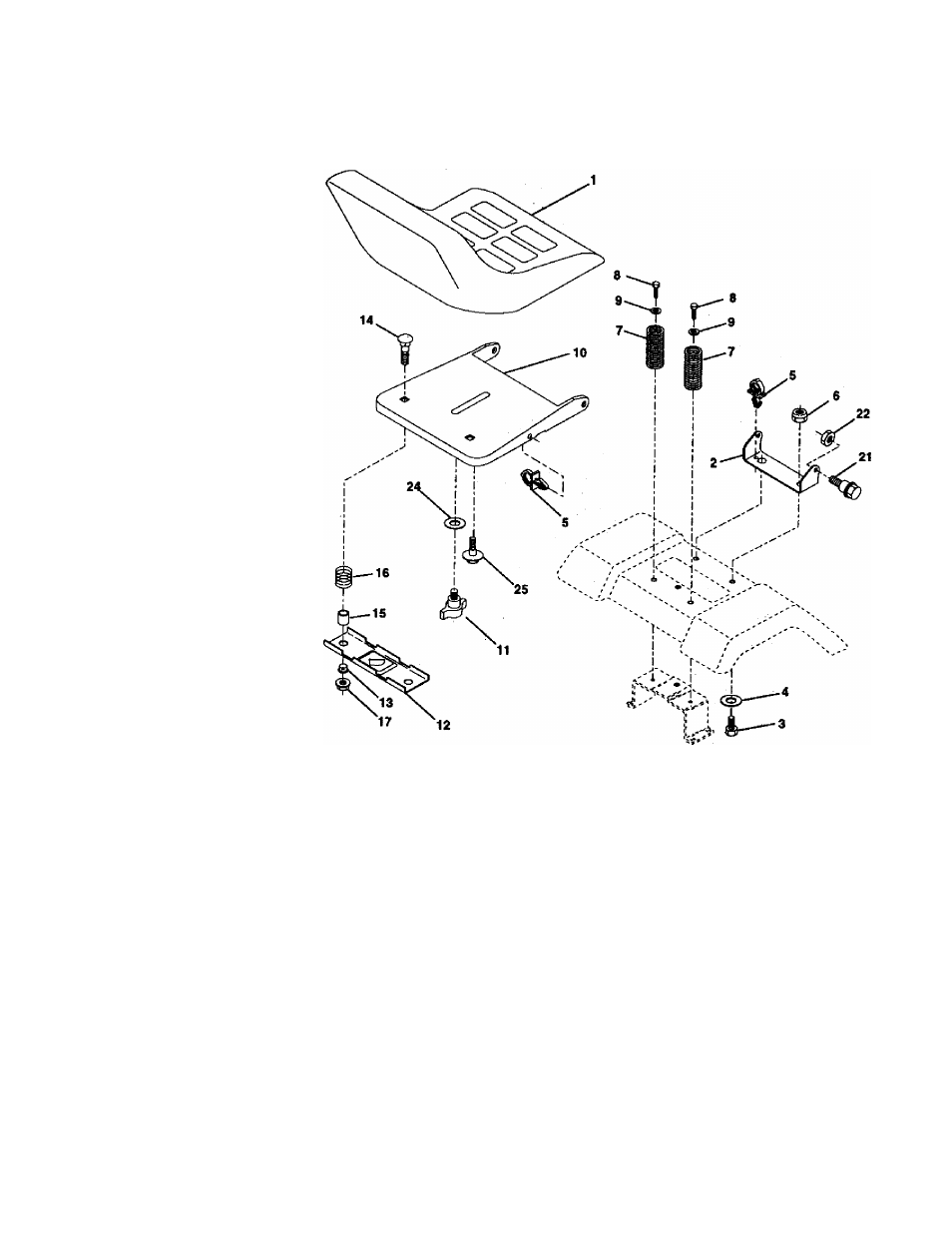

SEAT ASSEMBLY
TRACTOR - - MODEL NUMBER 917^70961
KEY
NO.
1
2
3
4
5
PART
NO.
140123
140551
71110616
19131610
145006
6 STD541437
7 124181X
8 17000616
9 19131614
10 155925
11 166369
12 121246X
DESCfflPTION
Seat 3450 BIk/bIk Craftsman
Bracket Pnt Pivot Seat (bik)
Bolt Fin Hex 3/8-16unc X 1
Washer 13/32 X 3/4 X 10 Ga
Clip Push In Hinged
Nut Hex Lock w/lns 3/8-16 Unc
Spring Seat Cprsn 2 250 BIk Zi
Screw 3/8-16 X1.5 SMGML
Washer 13^2 X 1 X 14 Ga
Pan Pnt Seat (bik)
Knob Seat
Bracket Pnt Mounting Switch
KEY PART
NO. NO.
13 121248X
14 72050412
15 134300
16 121250X
17 123976X
21 171852
22 STD541431
24 19171912
25 127018X
DESCRIP110N
Bushing Snap Bik Nyl 50 Id
Bolt Rdhd Sht Nk 1/4-20x1-1/2
Spacer Split 28 X 96 Zinc
Spring Cprsn 1 27 Bik Pnt
Nut Lock 1/4 Lge Fig Gr 5 Zinc
Bolt Shoulder 5/16-18 Unc-2A
Nut Hex Lock w/lns 5/16-18
Washer 17/32 X 1-3/16 X12 Ga.
Bolt Shoulder 5/16-18 X 62
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
