© 2011, Pinnacle Products International, Inc. 5 HVF Air Circulator User’s Manual
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
24” BARREL FAN
If the Wall Mount Kit is applied, the
installer MUST be certain that the
Wall Mount is mounted to a minimum of a 2x4” stud,
and that it is able to support 50 pounds continuously.
1. Attach Wall Mount (item 17 on page 4) to wood stud as
shown below.
2. Slide Wall Bracket L and Wall Bracket R on Large Base
(item 23) onto Wall Mount.
WARNING
Installation and Assembly - Wall Mount
(requires flat head screwdriver)
Wall
Wall
Wall Mount (item 17)
Handle Arm (item 20)
Wall Mount
(item 17)
Large Base
(item 23)

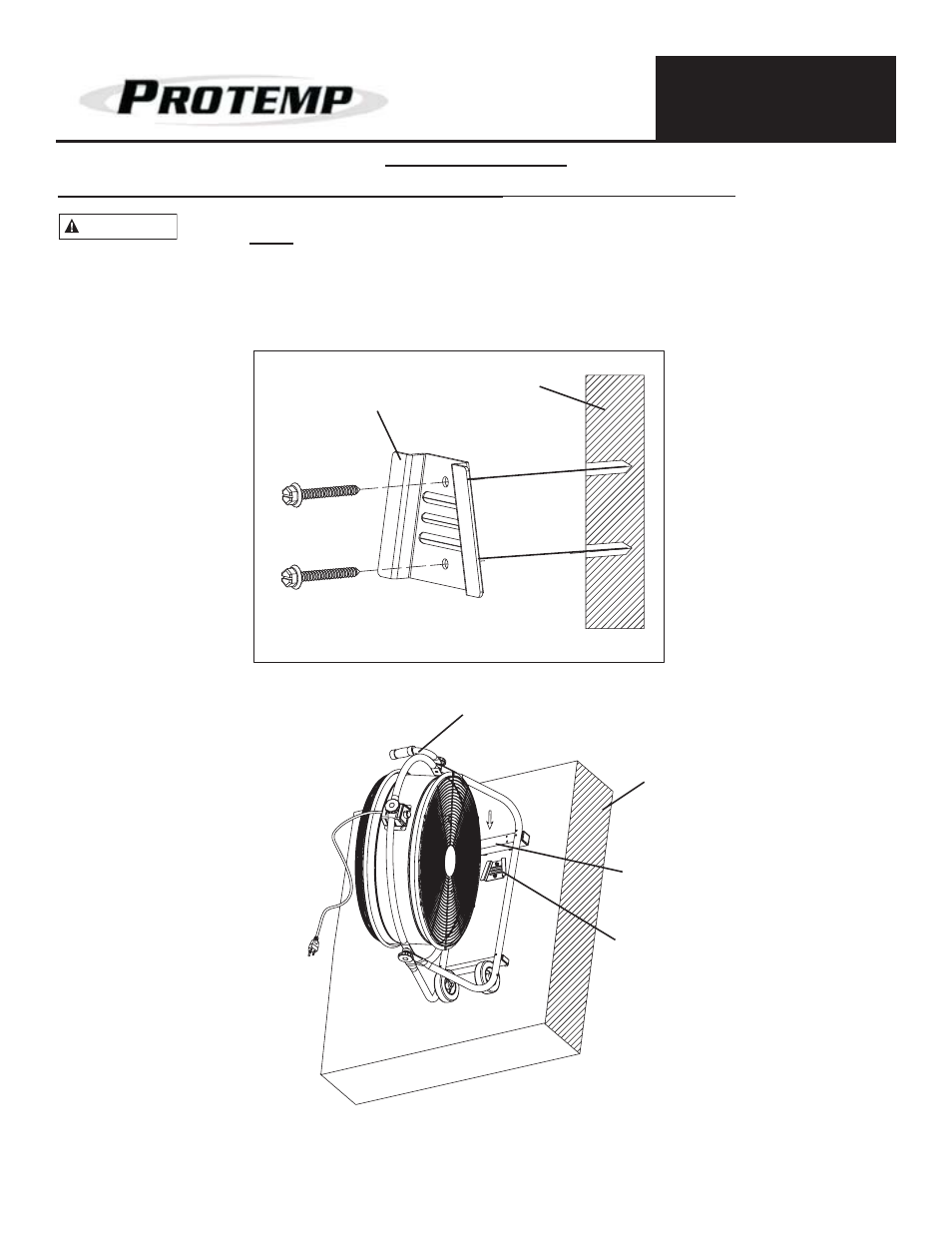

Figure 3: Wall Mount installation
