Great Plains Series II Native Grass Agitator - Manual (Page 6)

Great Plains Mfg., Inc.
6 Series II Native Grass Agitator
202-599M 04/11/2007
Position Blades
Refer to Figure 8
36. Slide the inner-most Left agitator so that there is
1 ⁄
4
in clearance between the flat blade and the near-
est side of the seed sprocket . Tighten the screw
and nut (not shown).
37. Slide the inner-most Right agitator so that there is
1 ⁄
4
in clearance between the flat blade and the near-
est side of the seed sprocket . Tighten screw & nut
(not shown).
Refer to Figure 9
38. Slide the outer-most Left agitator close to the
inner-most Left agitator , leaving
1 ⁄
8
in clearance
between them (about the thickness of an agitator).
Tighten screw and nut (not shown).
39. Slide the outer-most Right agitator close to the
inner-most Right agitator , leaving
1 ⁄
8
in clearance
between them (about the thickness of an agitator).
Tighten screw and nut (not shown). Spin the shaft for
a few turns to check clearances.
Refer to Figure 10.
40. Position a Right divider agitator (plated, paddle-
style) to the left of the Series II agitators just
installed, near the adjacent divider (the “tent”-like
rise in the seed box floor) and loosely assemble. The
short side of the “U” bend faces away from the peak
of the divider.

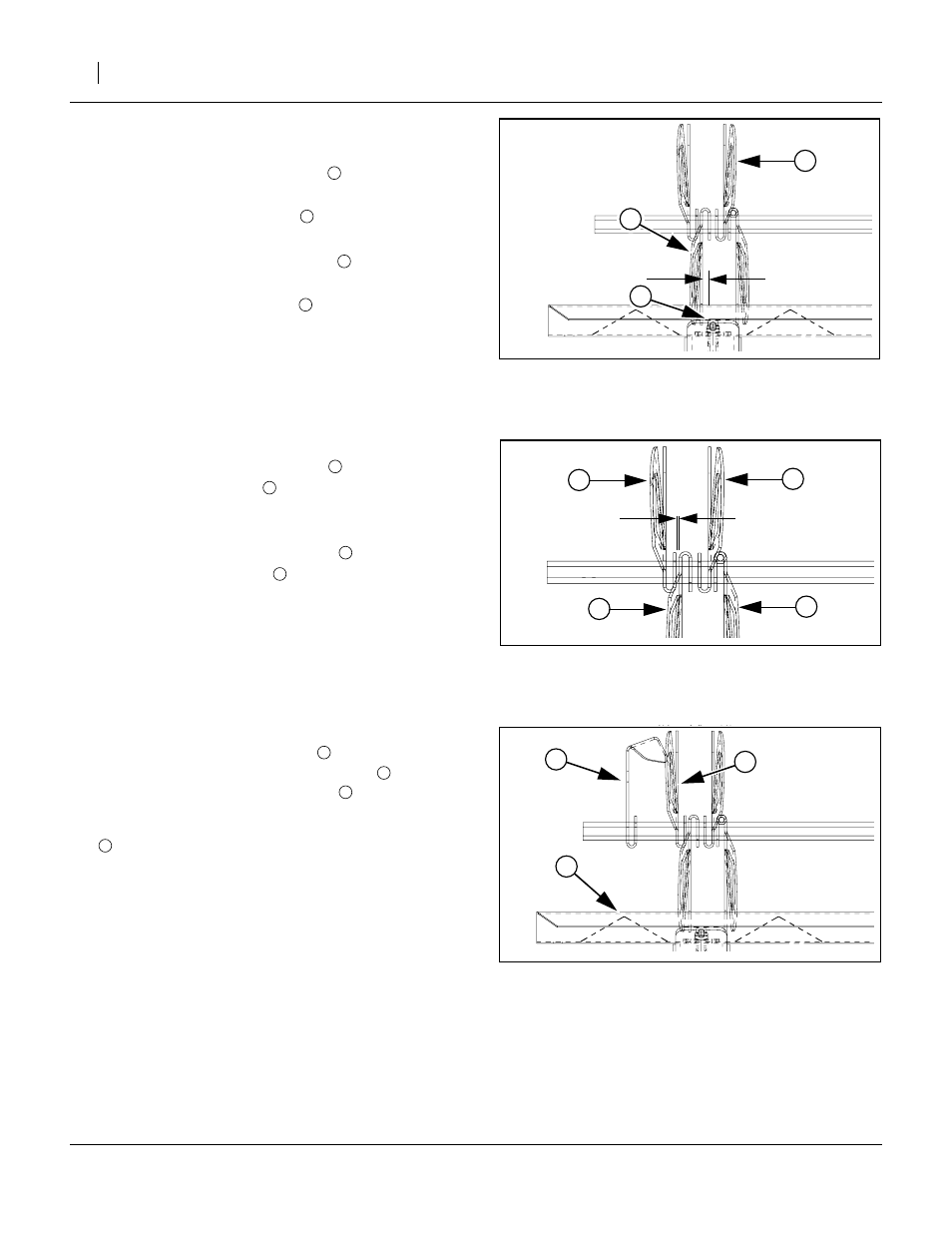

Figure 8
Agitator Blade Placement
(viewed from back of drill)
25127
1 ⁄
4
in
2
1
3
1
2
3
2
Figure 9
Agitator Spacing
(viewed from back of drill)
25127
1 ⁄
8
in
1
2 3
4
1
2
3
4
Figure 10
Divider Agitator Placement
25129
1
3
2
1
2
3
3
