B. Locate Unit

For service access and unrestricted airflow, provide clearance
on each end and side of unit. Position unit so that there is
unrestricted airflow above unit.

NOTE: Before mounting unit, remove holddown brackets and
release skid.

If conditions or local codes require unit to be fastened to pad,
use the mounting holes in the base rails.

C. Mount Unit

The unit may be mounted on a solid, level concrete pad, on
accessory mounting legs, or on field-supplied raised supports
at each mounting position. (Note that mounting hardware is
field supplied.)

Bolt unit securely to pad or supports after unit is in position
and is level. Be sure to mount unit level to ensure proper oil
return to compressors. Mounting holes on unit can be used to
secure unit to vibration isolators, if required.

38-1/2

Line & Low
Voltage Wiring
Entrances

1-1/2

4-1/4

2-1/2

2-5/8

3-5/8

5-3/4

9-3/4

1-1/2

BOTTOM

REAR

NOTE #3

7/8
4 PLACES

24 1/2

19 3/8

4 7/8

FRONT

1-1/2

38-1/2

1-1/2

TOP

FRONT

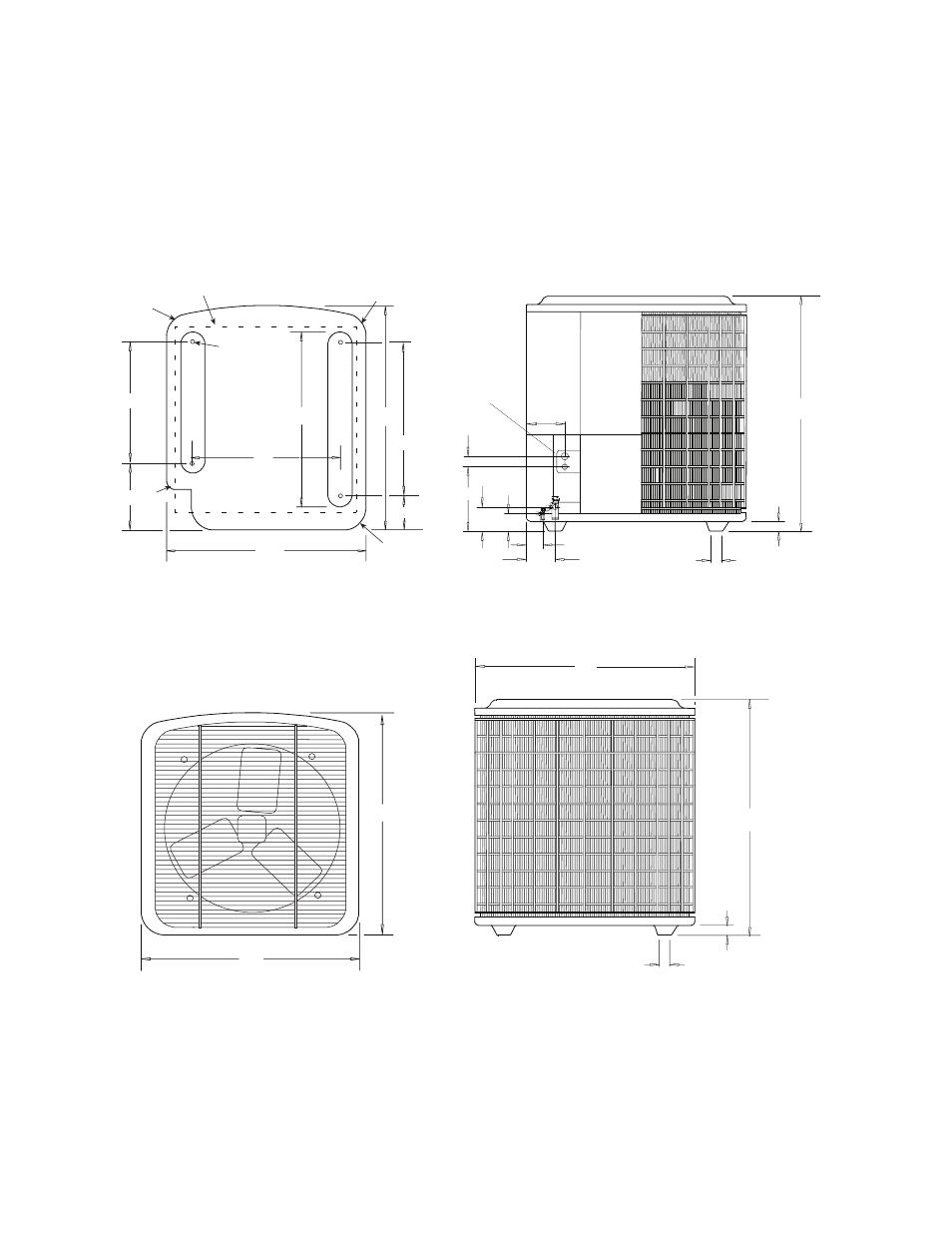

Fig. 1 — 575B072 Unit Dimensions

NOTES:

1. Minimum mounting pad size with pad starting at 9 in. from structure for minimum clearance of 6 inches (local

codes or jurisdictions may prevail).

2. All dimensions are in inches.
3. Dashed line indicates minimum pad dimensions — 27 in. W x 28 in. D.
4. Units require a minimum of 3

ft clearance on all sides to ensure proper airflow.

5. Corner Weights (lb): A = 86

B = 84
C = 92
D = 90
