Barco D-ILA LX-5 - Manual (Page 50)

50
Others

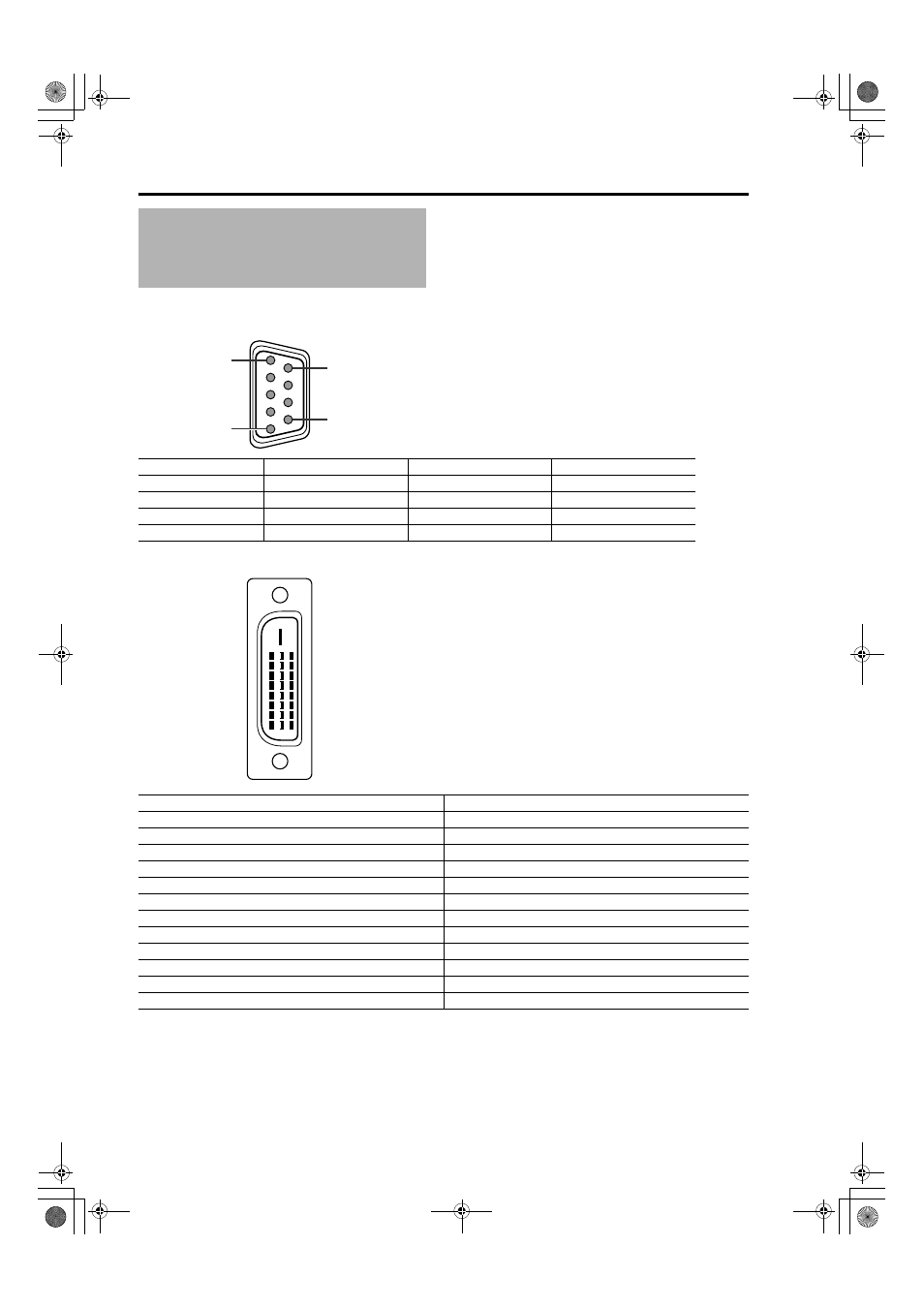

Ⅵ Pin Assignment
ⅷ RS-232C Terminal
ⅷ DVI-D Terminal
TMDS = Transition Minimized Differential Signaling
DDC = Display Data Channel
Specifications (Cont’d)
5
1
9
6
Pin No. Signal Operation Signal Direction
2 RxD Incoming Data This Projector  PC
3 TxD Outgoing Data This Projector PC
5 GND Signal Ground ^
1,4,6 to 9 NC ^ ^
Pin No. Signal Pin No. Signal
1 TMDS Data 2– 13 TMDS Data 3+
2 TMDS Data 2+ 14 TMDS +5 V Power Supply
3 TMDS Data 2/4 Shield 15 Earth (+5 V)
4 TMDS Data 4– 16 Hot Plug Detection
5 TMDS Data 4+ 17 TMDS Data 0–
6 DDC Clock 18 TMDS Data 0+
7 DDC Data 19 TMDS Data 0/5 Shield
8 NC 20 TMDS Data 5–
9 TMDS Data 1– 21 TMDS Data 5+
10 TMDS Data 1+ 22 TMDS Clock Shield
11 TMDS Data 1/3 Shield 23 TMDS Clock +
12 TMDS Data 3– 24 TMDS Clock–
8 16 24
7 15 23
6 14 22
3 11 19
2 10 18
5 13 21
4 12 20
1 9 17
