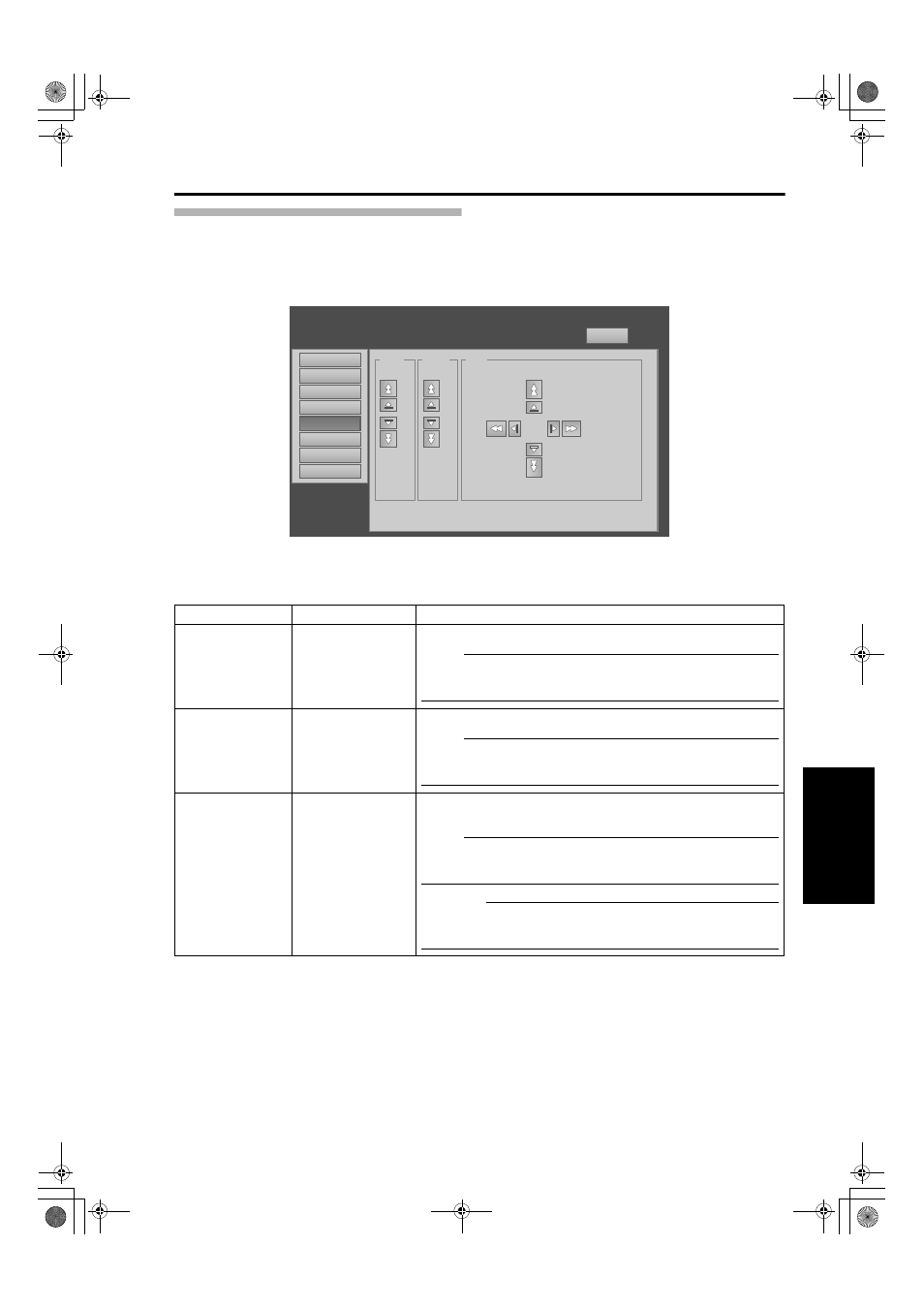

Lens Menu
This menu is used for adjusting the projection lens.
Zoom
Setting
Convergence
Lens
Option
Network
Mail
Logout
host PJ-1
user: root
Main
w
T
Focus
+
_
Shift
L R
U
D
Item Setting Value Description
Zoom — For adjusting the zoom ratio (screen size).
NOTE:
● The zoom position changes each time the inner button is clicked.
The zoom position changes when the outer button is depressed.
Focus — For adjusting the focus position.
NOTE:
● The focus position changes each time the inner button is clicked.
The focus position changes when the outer button is depressed.
Shift — For adjusting the horizontal and vertical positions of the projection
screen.
NOTE:
● The shift position changes each time the inner button is clicked. The
shift position changes when the outer button is depressed.
CAUTION:
● When the movement exceeds the limit, the color of the button turns
red.
