Operating features – Wood’s Powr-Grip MT10FS10TAIR User Manual
Page 7
Rev 25.0/5-14
5
MT-FS10TAIR: #35090

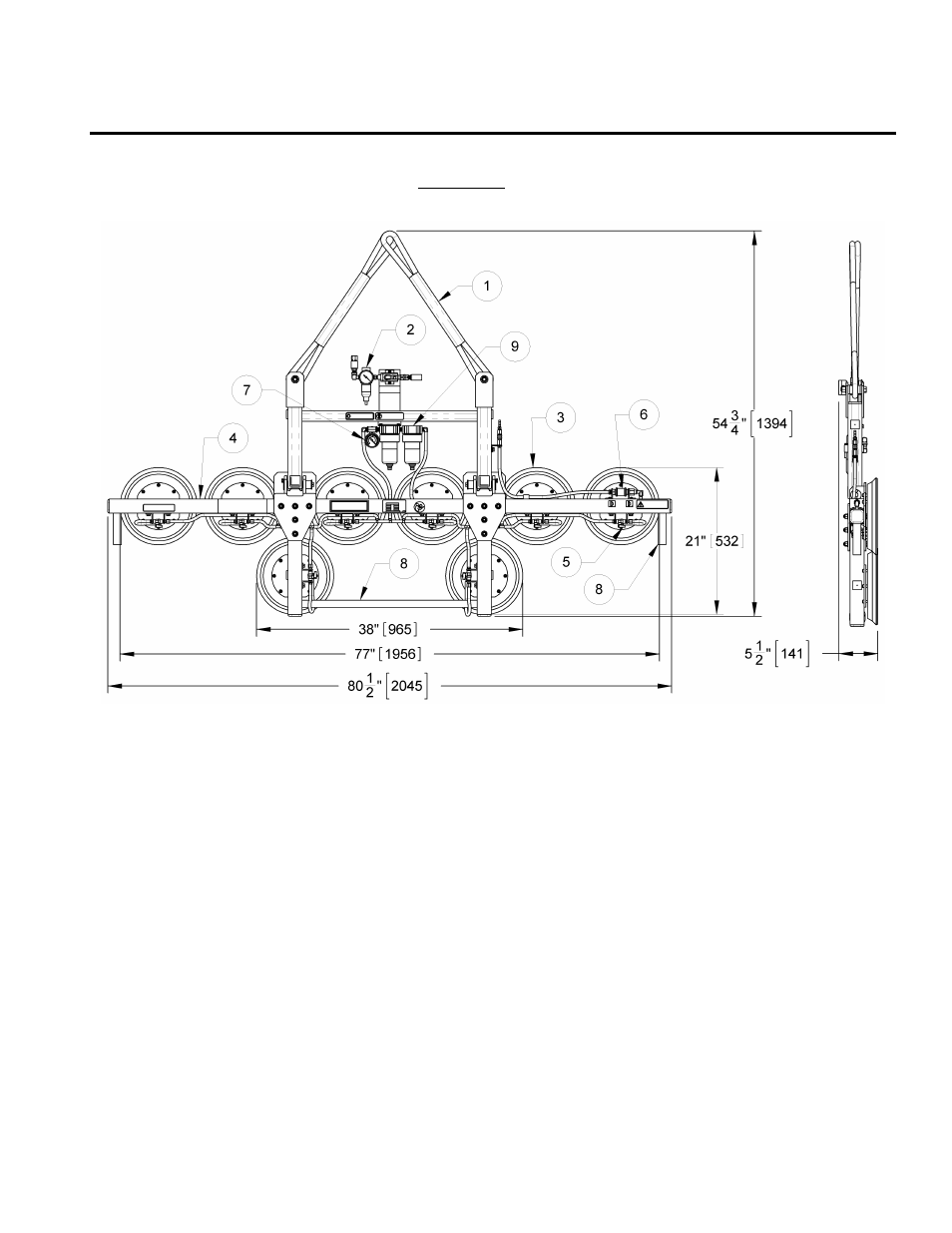

OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.
Note: For illustration only―Pad Spread dimensions vary.
1 LIFT SLING
5 VACUUM PAD SHUTOFF
2 AIR PRESSURE REGULATOR
6 PAD FRAME CONTROL VALVE
and SMALL AIR FILTER
7 VACUUM GAUGE
3 VACUUM PAD
8 CONTROL HANDLES
4 PAD FRAME
9 LARGE AIR FILTERS
