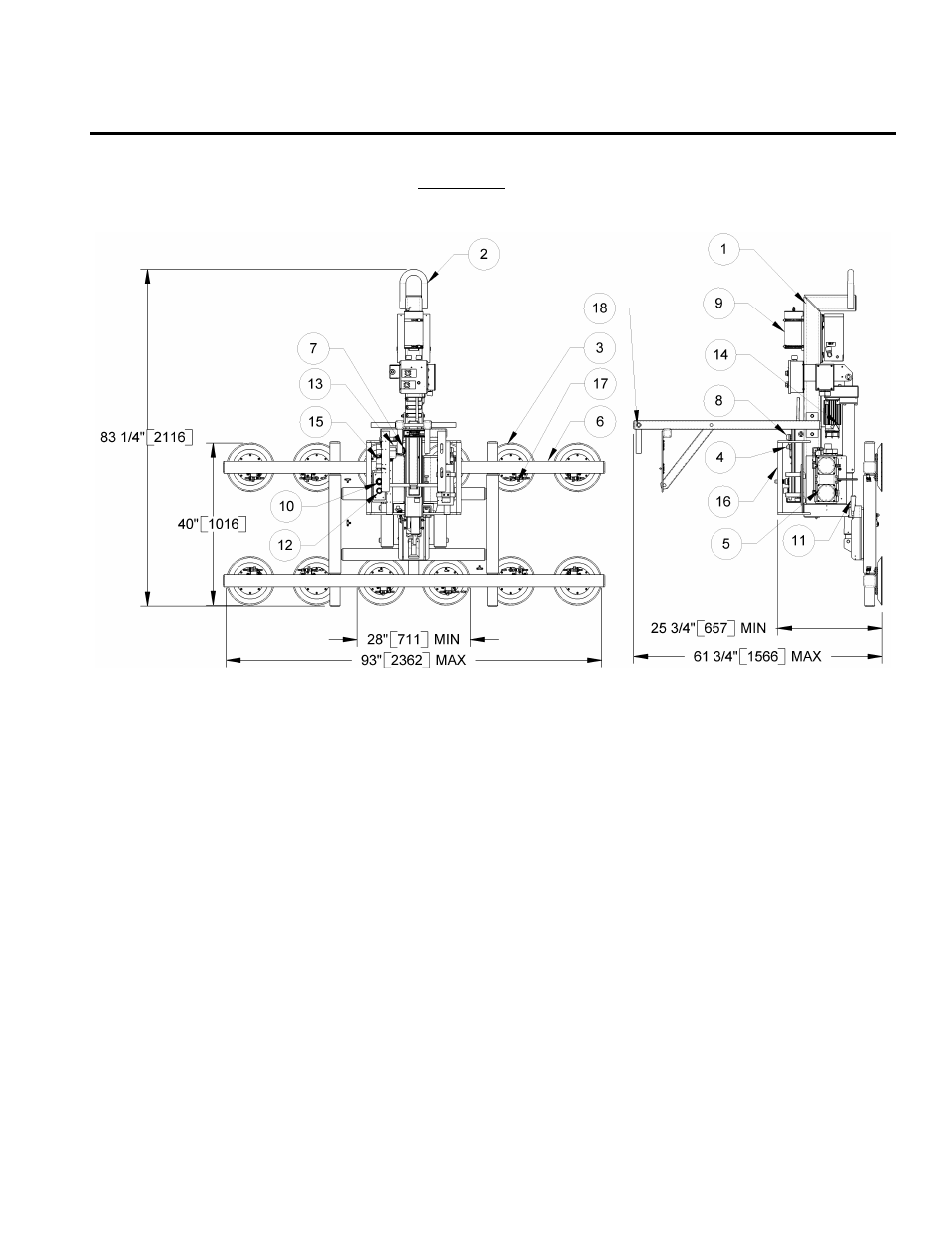

OPERATING FEATURES

Note: Components featured in the following instructions for assembling, operating or

maintaining the vacuum lifter are underlined on their first appearance in each section.

MRPT1211LACO shown with High-Duty Tilt and Individual Pad Shutoffs options.

The Extended Control Handle (item 18) is only available as a custom feature.

1 LIFT BAR

7 VACUUM GAUGE

13 AIR FILTER

2 LIFT BAIL

8 VACUUM LIFT LIGHT

14 TILT ACTUATOR

3 VACUUM PAD

9 VACUUM RESERVE TANK

15 Enclosure with VACUUM SWITCH

4 POWER SWITCH

10 TILT TOGGLE SWITCH

16 CONTROL HANDLE

5 VACUUM PUMP

11 ROTATION RELEASE LEVER

17 PAD SHUTOFF (OPTIONAL)

6 PAD FRAME

12 VACUUM RELEASE BUTTON

18 EXTENDED CONTROL HANDLE
