Rev 14.0/5-13 7 MRTA6-DC: #35072
T
O
C
HANGE THE
P
AD
F
RAME
C
ONFIGURATION
The lifter offers a variety of pad frame configurations to accommodate different load dimensions

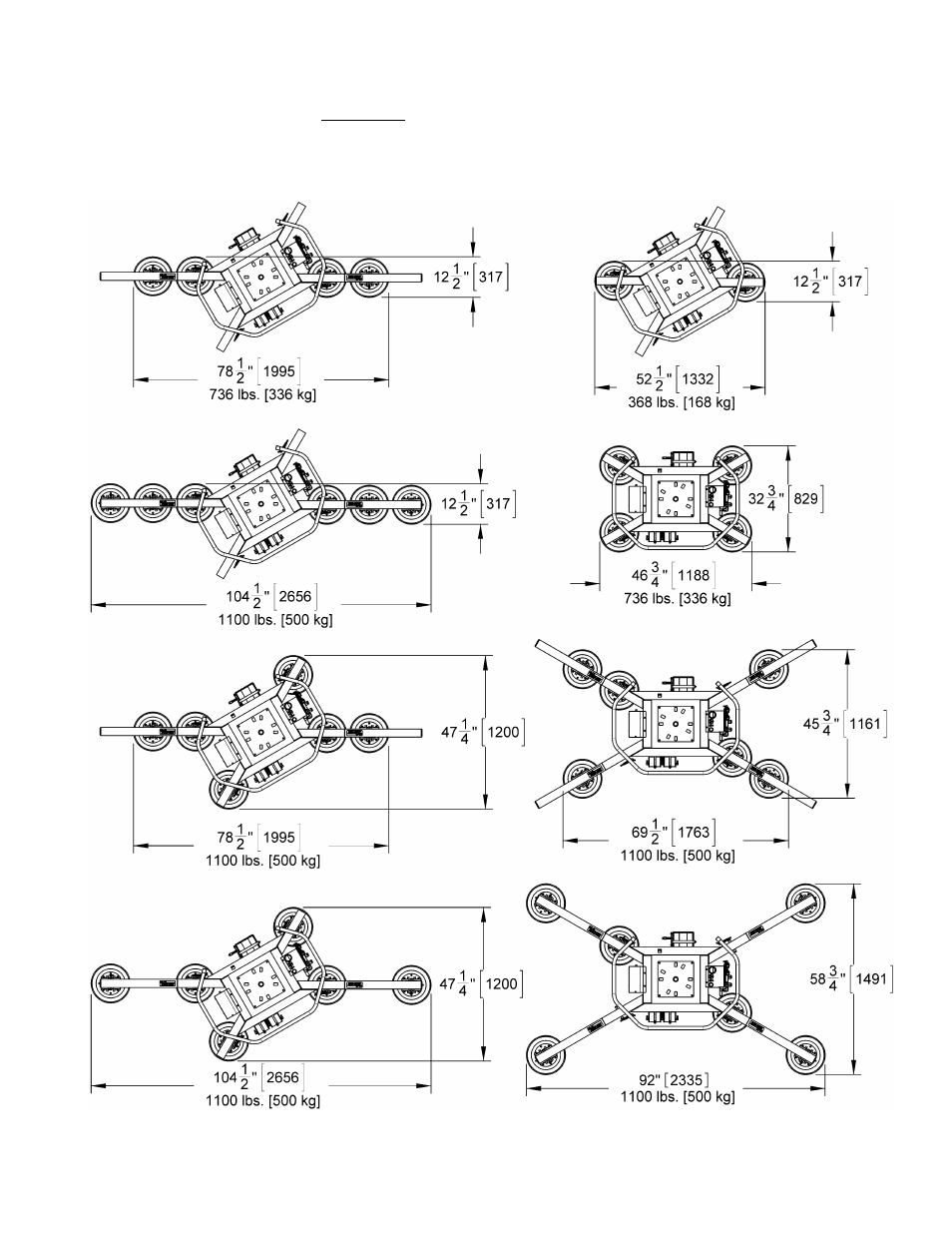

and weights (see SPECIFICATIONS: Pad Spread and Load Capacity). The following illustration
shows several possible configurations. Select a configuration to provide optimal support across
the load surface and to minimize load overhang (see OPERATION: B
EFORE
U
SING THE
L
IFTER
).
Standard MRTA611LDC pad frame shown.
