Anchor LIGHT EXPEDITIONARY SHELTER - Manual (Page 3)

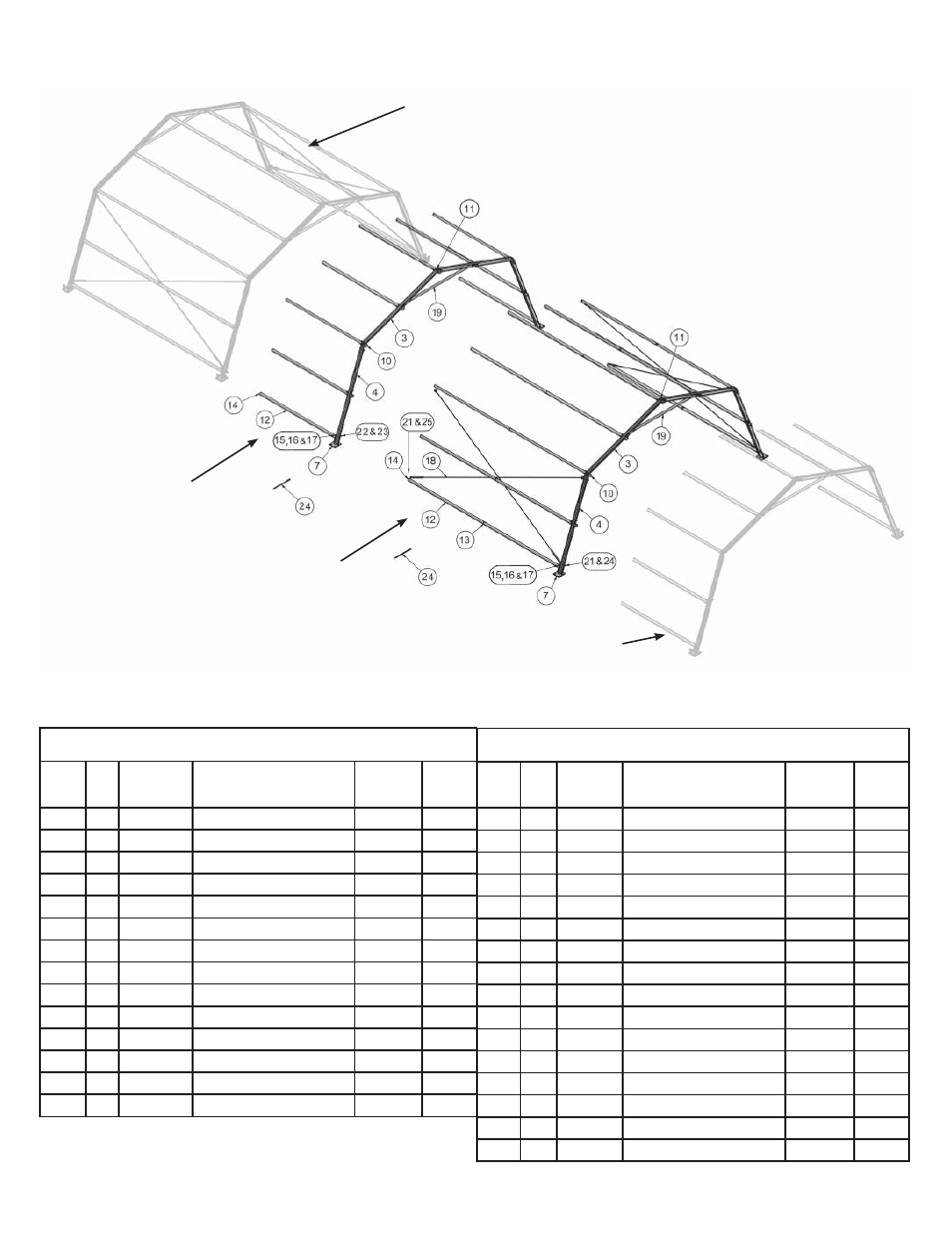

LES Frame Extensions Terminology
8’-1 3/4”
Extension
16’ Extension
Standard frame parts
shown ghosted.
Standard frame parts
shown ghosted.
8’ Frame Extension Kit
Item
No.
Qty Part No Description
Pounds
per Item
Label
3 2 80819 Mid Rafter 21.2 MR
4 2 80857 Mid Leg 30.0 ML
7 2 80839 Base Plate Weldment 7.6
10 2 80828 Eave Mid Weldment 9.9
11 1 80829 Peak Mid Weldment 9.8
12 9 80830 Half Purlin 7.7
14 4 80836 Bottom Purlin Reinf. -
15 4 3023897 J Bolt -
16 4 3025387 Washer -
17 4 3024390 Wing Nut -
19 1 3582260 Ridge Brace 16.4
22 2 3023246 3/8” x 2 3/4” Bolt -
23 2 3024445 3/8” Nylock Nut -
24 4 3704230 Dbl. Hd. Stake -1 x 30 8.0
3
* No weight is listed for items under one pound.
16’ Frame Extension Kit
Item
No.
Qty Part No Description
Pounds
per Item
Label
3 2 80819 Mid Rafter 21.2 MR
4 2 80857 Mid Leg 30.0 ML
7 2 80839 Base Plate Weldment 7.6
10 2 80828 Eave Mid Weldment 9.9
11 1 80829 Peak Mid Weldment 9.8
12 18 80830 Half Purlin 7.7
13 9 80831 Purlin Splice 2.2
14 4 80836 Bottom Purlin Reinf. -
15 4 3023897 J Bolt -
16 4 3025387 Washer -
17 4 3024390 Wing Nut -
18 4 80871 Cable for 16’-0” Bay 5.0
19 1 3582260 Ridge Brace 16.4
21 4 3024015 Eye Nut -
24 4 3704230 Dbl. Hd. Stake -1 x 30 8.0
25 4 3020445 3/8” -3” Eye Bolt -
