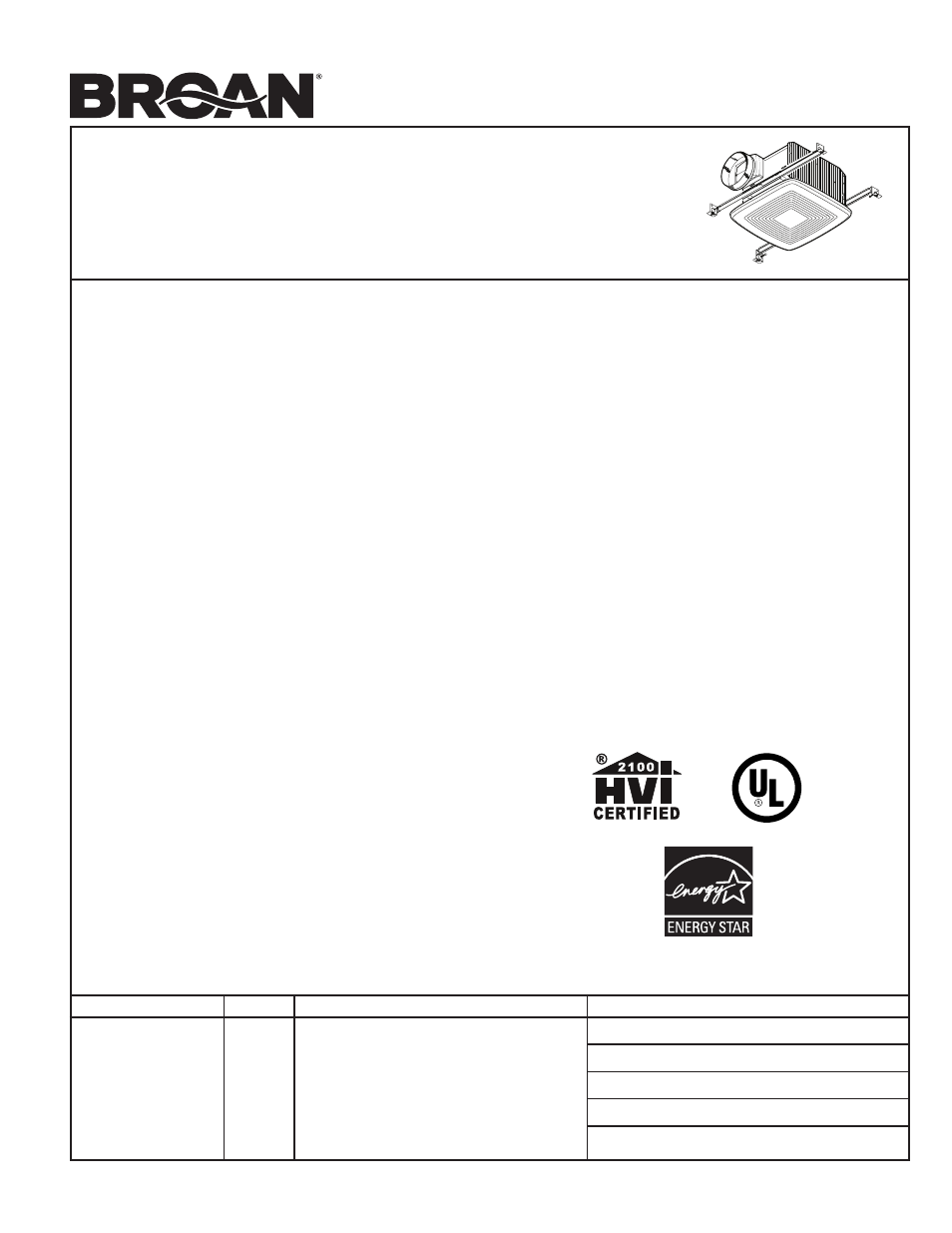

SPECIFICATION SHEET
QTXE SERIES FANS
models QTXe050, QTXe080,
QTXe110, QTXe150
TYPICAL SPECIFICATION
Ceiling Ventilator shall be Broan Model QTXE050 (QTXE080)
(QTXE110) (QTXE150).
Ceiling Ventilator shall have corrosion resistant galvanized
steel housing with four-point mounting capability. It shall be
ducted to a roof or wall cap using 6” round ductwork.
Blower assembly shall be removable, have a centrifugal-type
blower wheel and a permanently lubricated motor designed
for continuous operation and mounted with resilient anti-
vibration mounts.
Non-metallic damper/duct connector shall be included.
Air delivery shall be no less than 50 (80) (110) (150) CFM
and sound level no greater than <0.3 (0.3) (0.7) (1.4) Sones.
All air and sound ratings shall be certified by HVI.
Ceiling ventilator shall be Energy Star® qualified and have
an energy efficient permanent split capacitor motor.
Ceiling Ventilator shall be U.L. Listed for use over bathtubs
and showers when connected to a GFCI protected branch
circuit.
70M 99044085A
Ultra-quiet, high performance bath fan with a
modern-styled grille.
FEATURES
BLOWER:
• Plug-in, permanently lubricated motor - engineered for
continuous operation
• Dynamically balanced centrifugal blower wheel for
quiet, efficient performance
• Maintains a high percentage of rated CFM in less than
ideal installations
• Low RPM for quiet operation
• Resilient anti-vibration motor mounts
HOUSING:
• Rugged, 26 gauge, galvanized steel construction
• 6” round ducting for superior performance
• Polymeric duct connector with tapered sleeve and no
metallic clatter
• 7-5/8” height allows for 2” x 8” (nominal) joist
installations
• Sturdy, easy, four-point mounting directly to joist
• Includes unique spacer (patent pending) for mounting
to engineered “I” joists
• Includes hanger bars to position housing anywhere
between 16” to 24”-on-center joists
• Two sets of mounting holes for hanger bars allow flush
installation with bottom or top of drywall
• Can be mounted in ceilings up to 12/12 pitch
GRILLE:
• Polymeric construction
• Innovative design - the result of extensive research with
designers and consumers
CONTROLS (Purchase separately):
• Model 69VL (Ivory) / 69WL (White) - One rocker switch
with “on” indicator light
• Other controls available from Broan-NuTone
U.L. Listed for use over bathtubs and showers when
connected to a GFCI protected branch circuit (ceiling
mount only).
3-Year Warranty
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
