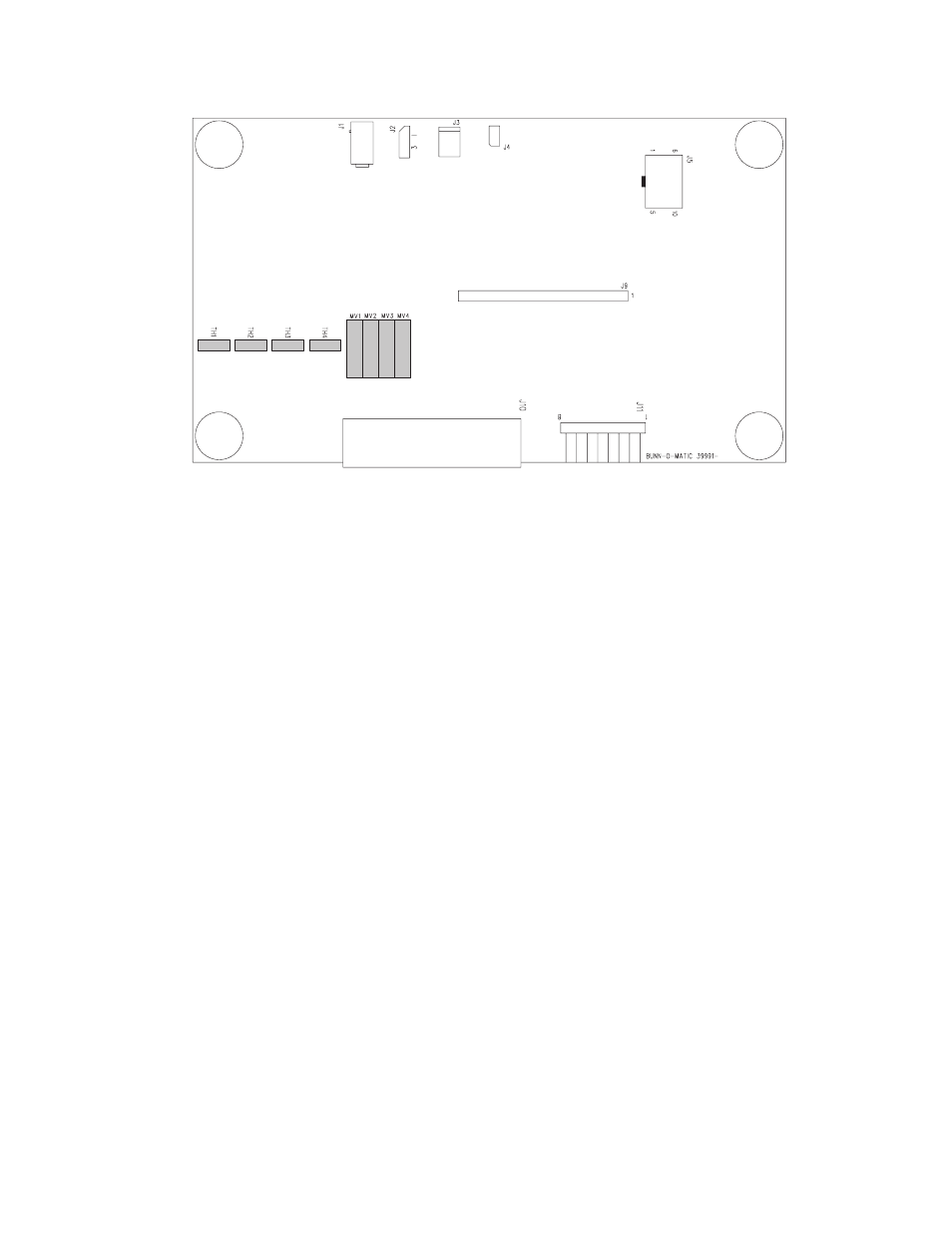

TRIAC MAP for ULTRA-1

ULTRA-1 TRIACS

TH1 & MOV4 controls

Auger

@ J10-8 Reverse & J10-9 Forward

TH2 & MOV1 controls

Compressor Relay

@ J10-20

TH3 & MOV2 controls

Cooling Valve

@ J10-19

TH4 & MOV3 controls

Refill Valve

@ J10-18

41084 102709
