Brother FAX-921 User Manual
Page 33
III - 20
3.2
Main PCB
The main PCB, which is the nucleus controlling the entire operation of the equipment, consists of a
FAX engine (ASIC), memories, motor drive circuitry, sensor detection circuitry, and analog circuits
for scanning, recording, and power transmission shifting.
*Provided on the FAX870MC/FAX-930/FAX-931/MFC970MC.
EEPROM: Electrically Erasable Programmable Read-only Memory
DRAM:
Dynamic Random Access Memory

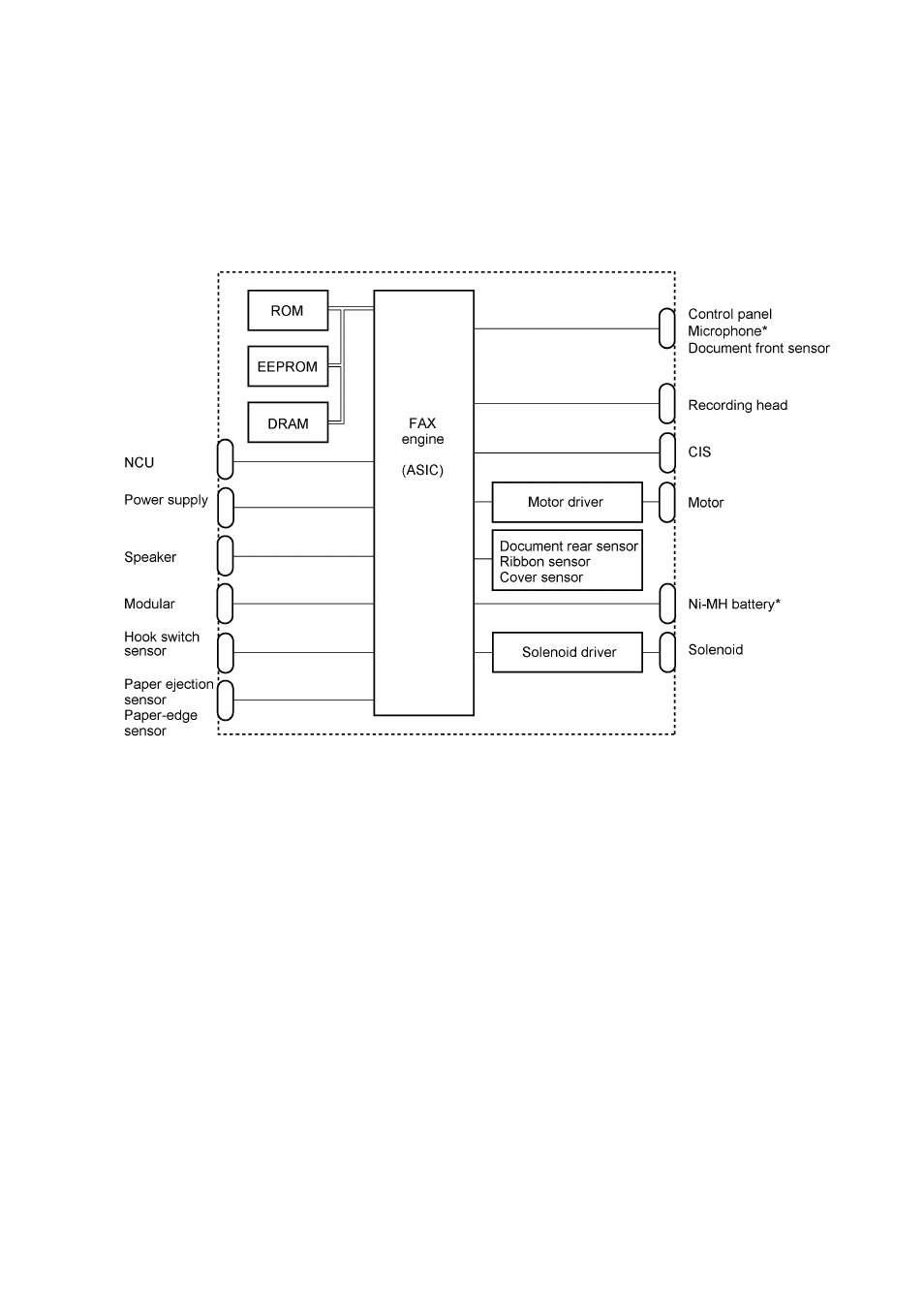

Block Diagram of Main PCB
