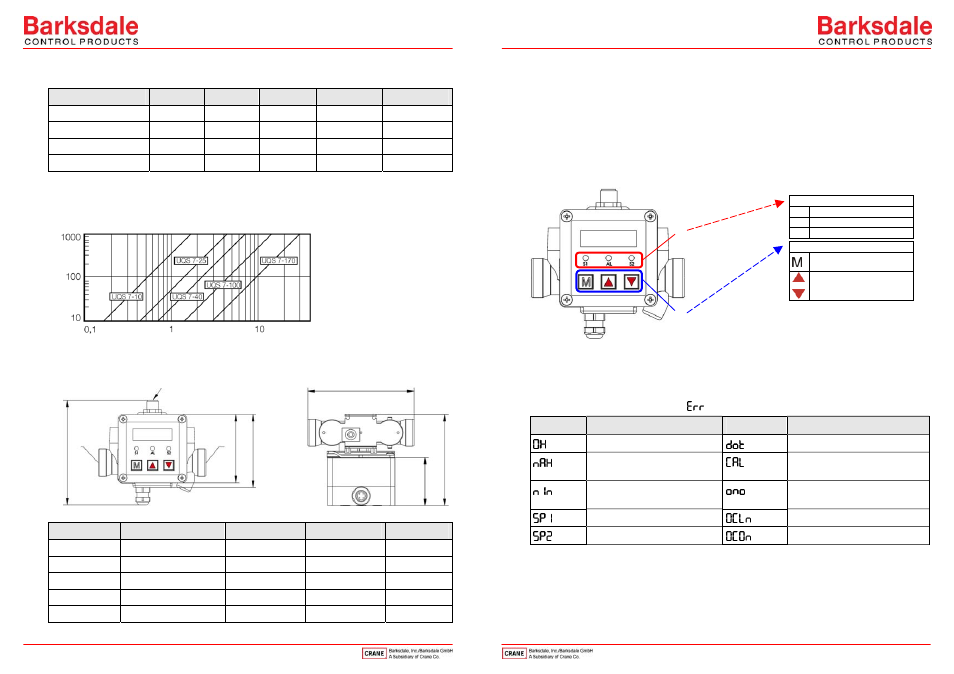

7 Technical Data 8 Operation
Measuring ranges (Qn)* UQS 7 - 10 UQS 7 - 25 UQS 7 - 40 UQS 7 - 100 UQS 7 - 170
The sensor must be installed and operated only by authorized persons. After the unit is switched
on, the unit starts an automatic self-test. Operation via three plastic film keys is menu-driven.
These keys must not be touched with hard objects!
Flow rate [l/min] 0.04... 10 0.1... 25 0.16... 40 0.4... 100 0.68... 170
Flow rate [m 3 /h] 0.0024... 0.6 0.006... 1.5 0.0096... 2.4 0.024... 6.0 0.041... 10.2 The display monitors the actual flow or volume rate. The green LEDs S1 and S2 display the
switching mode of the two outputs. In case of overflow of the volume amount the decimal point at
the bottom right will be flashing.
Flow rate [gpm] 0.01... 2.64 0.026... 6.6 0.042... 10.6 0.11... 26.42 0.18... 44.91
Flow rate [gph] 0.63... 158.5 1.58... 396.3 2.53... 634 0.34... 1585.03 10.77... 2695.55
Operating and display elements
* Qmax = Qn x 2; in the range of Qmax the accuracy class is 3%.
Pressure Drop Item 1: LEDs
depending on the flow rate(Q)
Dimensions in mm (inch)
Type Measuring range [l/min] a [mm/inch] b [mm/inch] C
UQS 7 - 10 0 ... 10 110/4.331 100/3.937 G3/4
UQS 7 - 25 0 ... 25 110/4.331 100/3.937 G3/4
UQS 7 - 40 0 ... 40 190/7.48 100/3.937 G1
UQS 7 - 100 0 ... 100 260/10.236 130/5.118 G1 1/4
UQS 7 - 170 0 ... 170 300/11.811 135/5.315 G2
9 Error display
If an error is recognized during the self-test or during operation, this is signalled by the (yellow)
flashing alarm LED (AL).
The error can be read out in the menu.
Display Error Display Error
no error data error EEProm
exceeding positive measuring
range calibration error
exceeding negative measuring
range error analog output
error switching output 1 sensor too dirty or without media
error switching output 2 sensor error
Pressure drop [mbar]
Flow rate [m 3 /h]
M12x1 connector a
c c
appr
ox. 115 (
4
.528)
appr
ox. 75 (
2
.953)
appr
ox. 54
(2.126
)
b
Flow
B
1
AL (yellow) – alarm
S1 (green) – switching point 1
S2 (green) – switching point 2
Item 2: plastic film keys
Dialog item "change to value/to
function", acknowledge inputs
Change menu items/functions,
change numerical values
2
appr
ox. 80 (
3 .15)
6 7
