DMX Repeater Pro

User’s Guide

PPENDIX

–

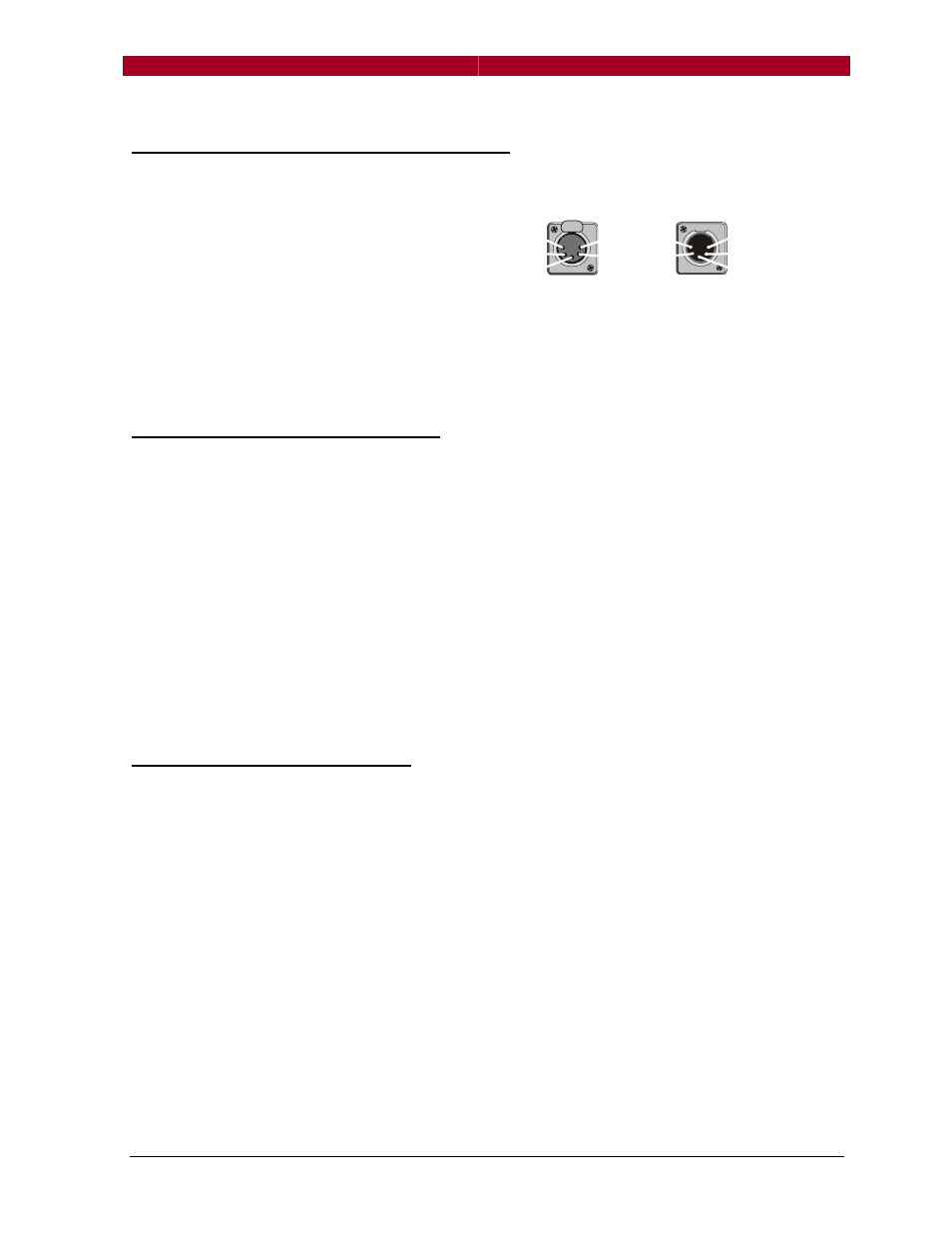

XLR

ONNECTOR

INOUTS

DMX512A

1 – Common
2 – Data –
3 – Data +
4 – Data 2 – (not used)
5 – Data 2 + (not used)

Note: Although unused under DMX512, pins 4 and 5 are connected on the DMX
Repeater Pro, which should be taken into consideration in systems including
manufacturers’ proprietary signals on pins 4 and 5.

PPENDIX

–

EFAULT

ETTINGS

There is no global method of returning the DMX Repeater Pro to its factory settings.

If you need to manually reset the configuration, use the following as a checklist:

Personality: Repeater

DMX Hold Time: 0 seconds
DMX Speed: Fast
LCD Backlight: Full
Port x Source: Input (RDM)

- as it is possible to configure each port separately, you will need to check that

all eight are set to “I” (input) on the Port Status screen.

Note: Firmware is not currently upgradeable by the end user.

PPENDIX

–

PECIFICATIONS

Protocol Compliance: ANSI E1.11 DMX512-A and ANSI E1.20 RDM

Connectors: 1 – Male 5-pin XLR (normal input)

8 – Female 5-pin XLR (normal output)

or 9 – Phoenix-style 5-position terminal blocks

Protection: 2500V opto-isolation per port, 250V fault protection on DMX connectors
Data Link Fuses: Self-resetting thermal fuse

Power: 100-240VAC, .75 - .35A, 50-60Hz
Size: 432 x 152 x 44mm (17 x 6 x 1.75in)
Weight: 1.6kg (3.5lb)
Operating Temperature: 0°C - 40°C (32° to 104° F)
Operating Humidity: 10%-95% relative humidity, non-condensing
