Setting up the Drive
This drive can be used in either a horizontal or a vertical position.
Positioning the drive vertically may help to save space.
Vertical installation
To use the drive in a vertical position, the supplied vertical installation base
is used. Positioning the drive as illustrated below, place it into the vertical
installation base. Push the drive all the way to the bottom of the vertical
installation base.
Notes
• To use this drive in a vertical position, always attach the supplied base. To attach the
drive in the vertical position, first position the vertical installation stand with the
“VAIO” logo facing forward. Insert the drive into the stand with its front facing
forward and the POWER indicator up, as illustrated below.
• Install the drive on a flat, stable surface.

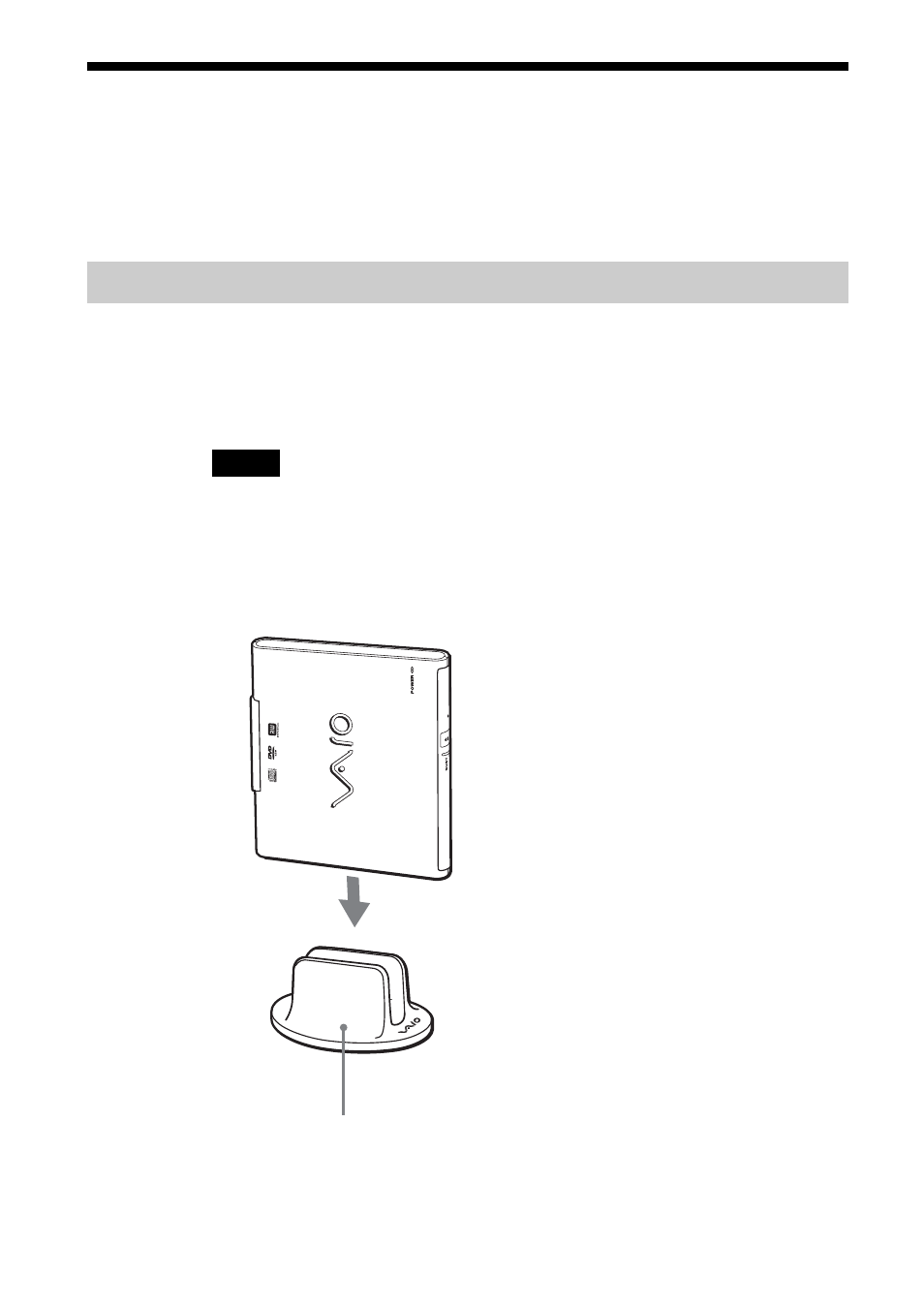

Vertical installation base
