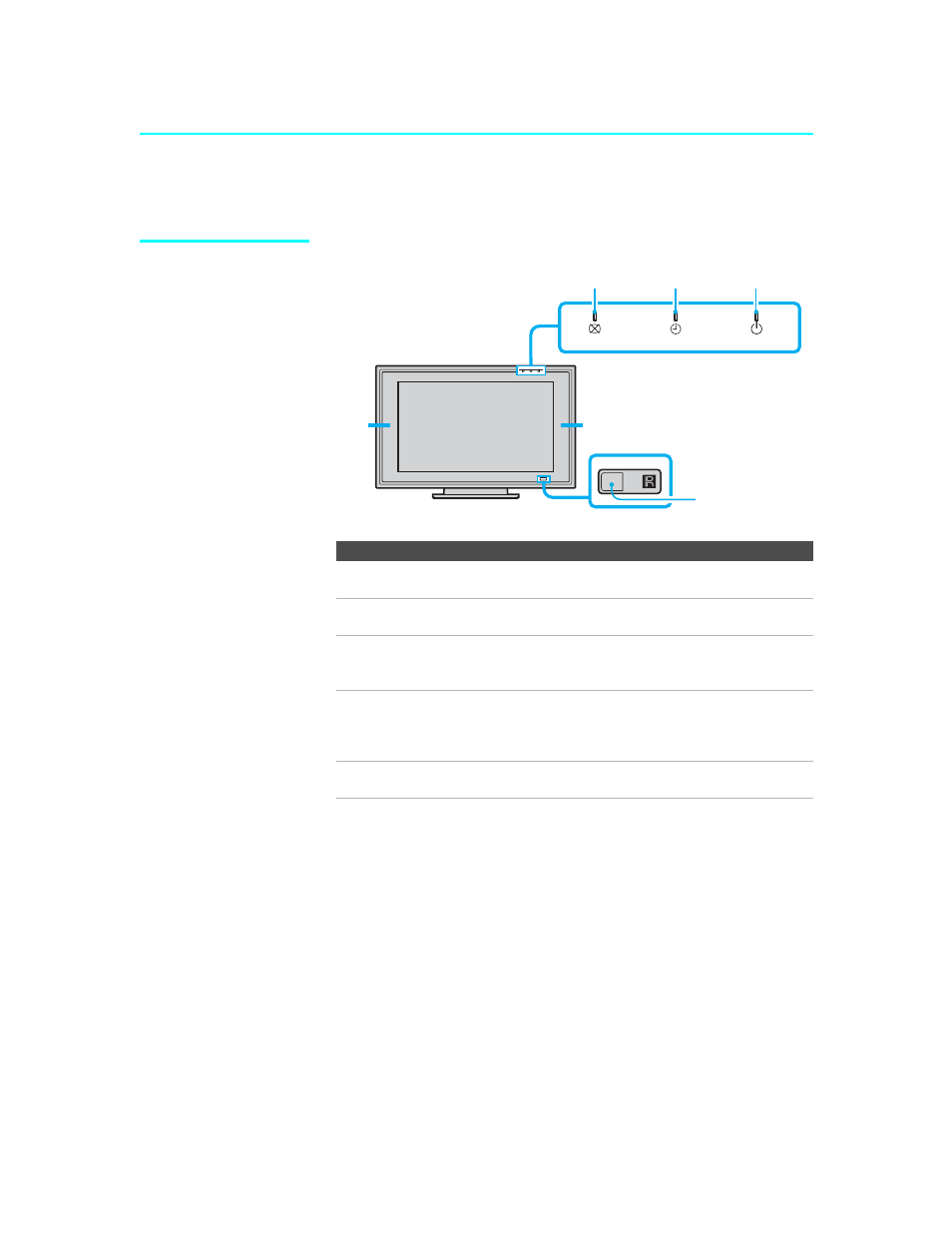

TV Controls and Connectors
Display Unit
Item Description
1 Speakers
(Left/Right)
Output audio signal.
2 PICTURE OFF
LED
When lit, indicates that the Picture Off feature is
activated. For details, see page 80.
3 TIMER LED When lit, indicates one of the timers is set. When the
timer is set, this LED will remain lit even if the TV set is
turned off. For details, see page 130.
4 POWER ON/
STANDBY LED
Lights up in green when the TV set is turned on. The LED
lights up in red when in standby mode. If the LED blinks
in red continuously, this may indicate the media receiver
unit needs servicing (see “Contacting Sony” on page 135).
5 (IR) Infrared
Receiver
Receives IR signals from the remote control.
POWER ON/STANDBY TIMER PICTURE OFF
2 3 4
5
1 1
Front Panel
