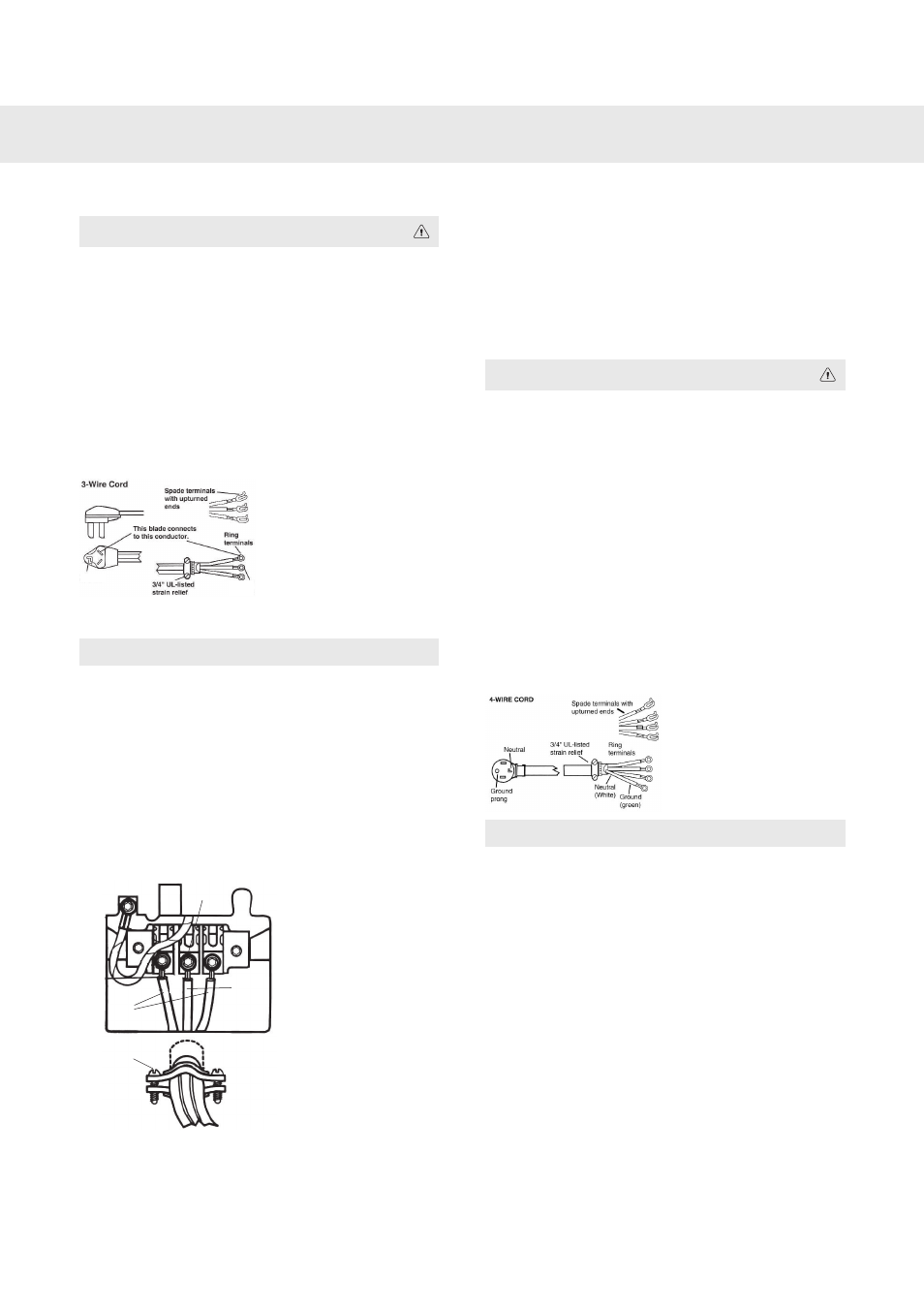

Connecting a 3-wire Power Cord
Warning!
Before starting this procedure, be sure the
power is turned off at the breaker/fuse box.
Power Supply Cord
You will need a 3-wire power supply cord with
three No. 10 copper wires and a matching 3-
wire receptacle of NEMA Type 10-30R, as il-
lustrated below:
To connect a 3-wire power cord to the dryer,
follow the steps below.
Ground
Ground
(center)
Note
The numbers in the illustration below correlate
to the step numbers.
1. Turn the power off at the breaker or fuse
box.
2. Remove terminal block cover.
3. Use the strain relief attached below the
terminal block opening.
4. Loosen or remove center terminal block
screw.
4
6
5
7
5. Connect ground (center) wire of power
supply cord to the center, silver-colored
terminal screw. Tighten screw.
6. Connect the other wires to outer screws.
7. Tighten the strain relief screws.
8. Replace terminal box cover on back of
dryer.
9. Plug dryer into wall receptacle.
10.Turn power on at breaker/fuse box.
Connecting a 4-wire Power Cord
Warning!
Before starting this procedure, be sure the
power is turned off at the breaker/fuse box.
Power Supply Cord
You will need a 4-wire power supply cord with
four No. 10 copper wires and a matching 4-
wire receptacle of NEMA Type 14-30R, as il-
lustrated below.
The fourth wire must be identified with a green
cover and the ground conductor by a white
cover.
To connect a 4-wire power cord to the dryer,
follow the steps below.
Note
The numbers in the illustration below correlate
to the step numbers.
1. Turn the power off at the breaker/fuse box.
2. Remove terminal block cover.
3. Use the strain relief attached below the
terminal block opening.
4. Remove center terminal block screw.
