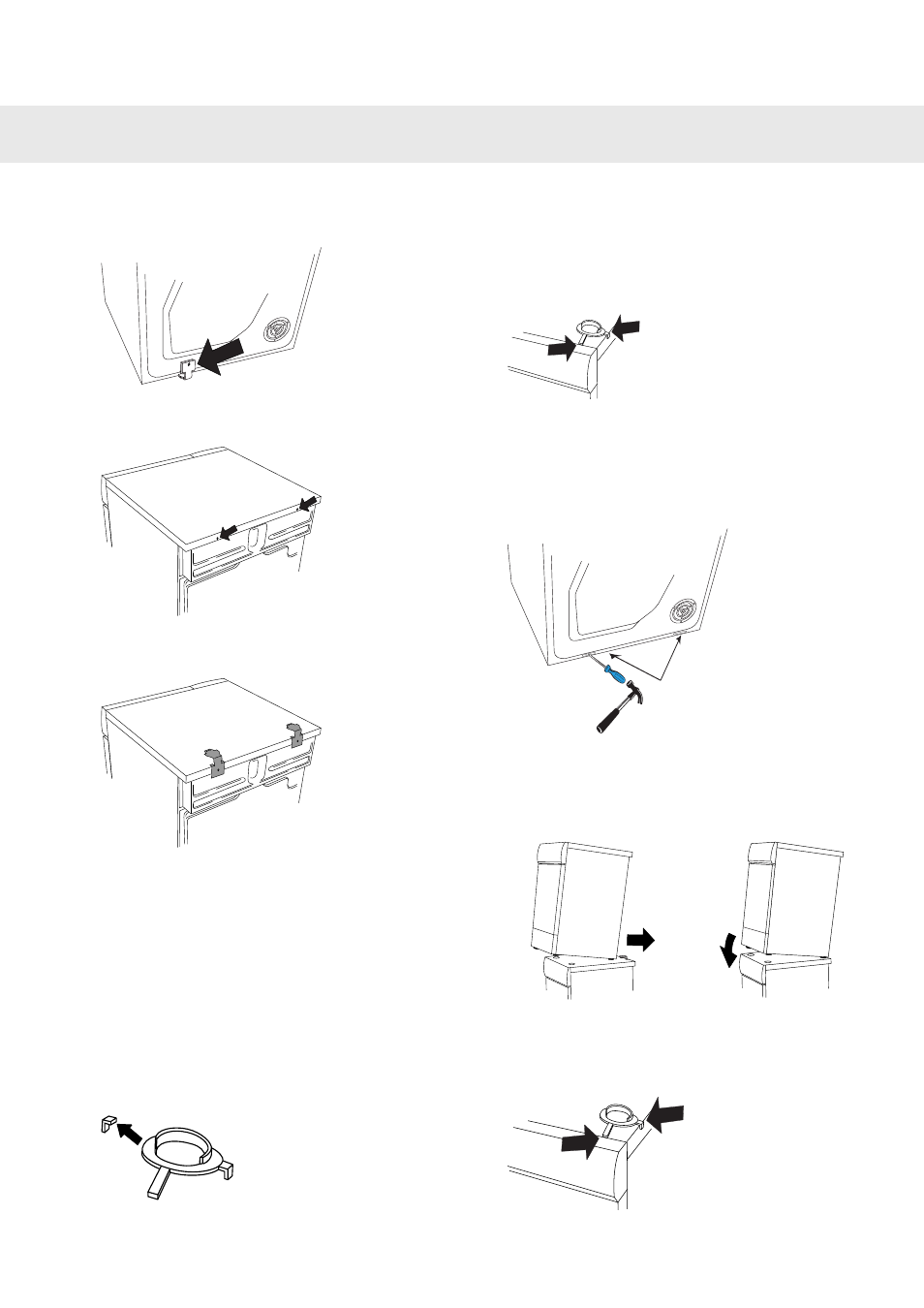

How to assemble the stacking kit:
1. Undo the anti-tip device.
2. Remove the two screws indicated on the
back of the washing machine.
3. Secure the anti-tip device using the screws
as shown in the picture.
4. Attach the plastic cups for mounting the
tumble dryer’s front feet to the washing
machine’s top cover. This is essential, as
only when the tumble dryer’s feet are rest-
ing in the plastic cups can you be sure that
the dryer is correctly positioned on the
washing machine.
Break off tab A on the cup fitted on the right
side and tab B on the cup fitted on the left
side. Then remove the paper from the self-
adhesive surface under the plastic cups.
A
B
5. Fit the plastic cups so that the "tags"
marked with arrows are against the front
edge or side edge of the cover and press
them firmly onto the cover. Then break off
the remaining tabs.
6. Push out the knock-out hole on the back
of the dryer (you don't have to completely
remove the knockout, just fold it up far
enough for the stacking bracket to fit inside
the slot) using a hammer and screwdriver.
7. Push the tumble dryer in under the metal
brackets. At the same time, keep the front
edge raised by 0.4" (10mm) to 0.8"
(20mm).
8. Lower the tumble dryer’s front feet into the
plastic cups and adjust the dryer to ensure
that it is balanced.
