G A S C O M B I T H E R M — I N S T A L L A T I O N M A N U A L #MN-28898
PG . 15
I N S TA L L AT I O N R E Q U I R E M E N T S
®
C O M B I T HE R M
The gas Combitherm must use a connector that
complies with The Standard for Connectors for
Movable Gas Appliances, ANSI Z21.69 CSA 6.16
and addenda Z21.69a-1989. A quick disconnect
devise must be installed to comply with The
Standard for Quick Disconnect Devices for Use
with Gas Fuel, ANSI Z21 CSA 6.9.
Adequate means must be provided to limit the
movement of this appliance. Limitation of
movement must be made without depending on
the connector, the quick disconnect device, nor the
associated piping designed to limit appliance
movement. If it becomes necessary to disconnect
the restraint, it must be reconnected immediately
following the return of the appliance to its
original position.
1. Install a manual gas shut-off valve along with an
approved disconnect device.
2.
Install an A.G.A. certified, heavy-duty connector
that complies with ANSI Z 21.69 or CAN 1-6.10m88
along with a quick-disconnect device in compliance
with ANSI Z21.41 or CAN 1-6.9m70. Connectors
must be installed with a cable restraint to prevent
excessive tension from being placed on the
connector.
M O B I L E E Q U I P M E N T R E S T R A I N T

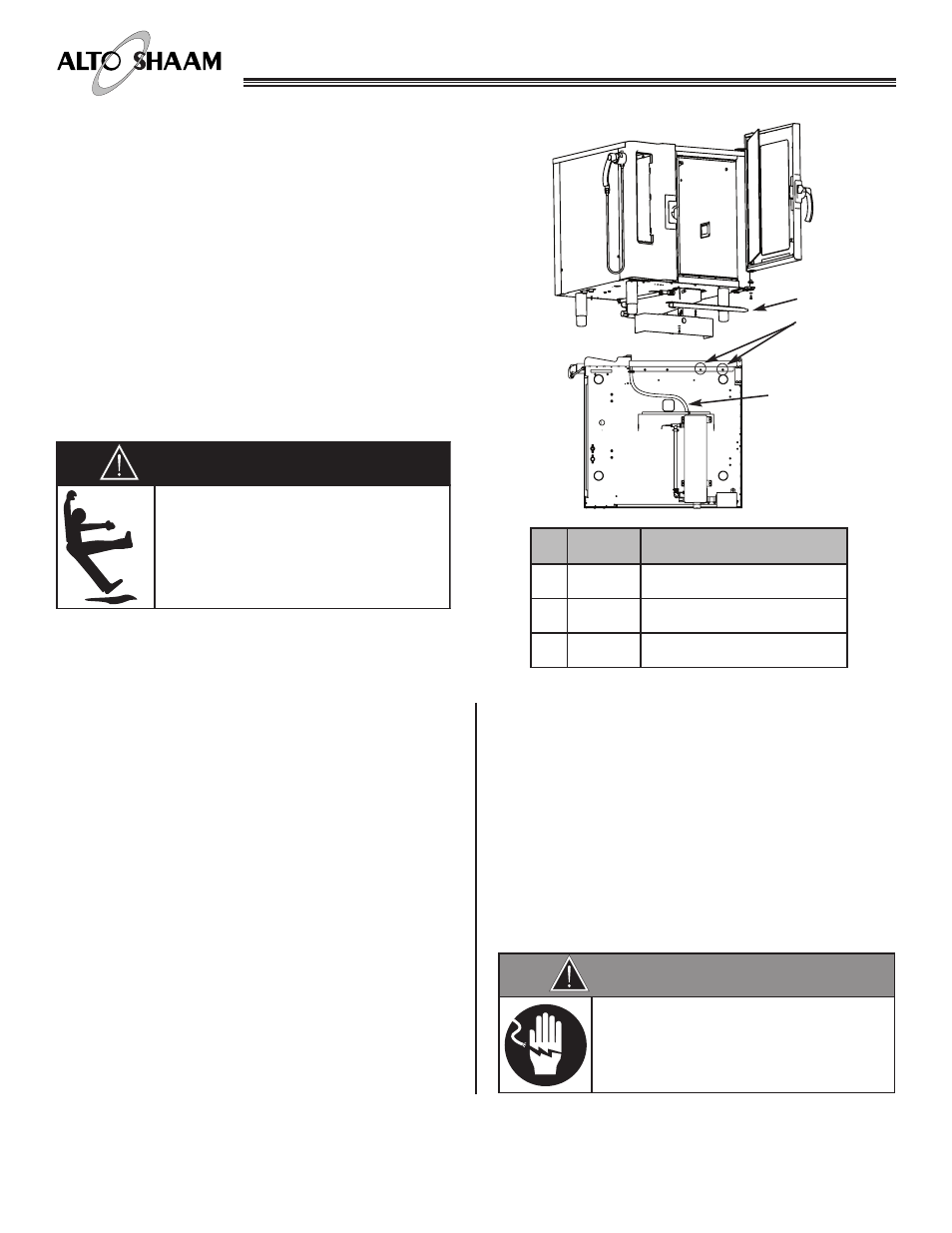

D R I P T R AY I N S TA L L AT I O N
The appliance is shipped without the drip tray
installed. This must be installed before equipment
operation begins.
ᕡ
Remove screws from bottom of oven (see illustration
shown at right).
ᕢ Position drip tray assembly beneath oven. Secure with
lock washer and phillips screws supplied.
ᕣ Cut drip tray hose to length and attach to drip tray
assembly. Secure with 20mm clamp. Secure other end
of drip tray hose to drain fitting connection with clamp.
ITEM
NO .
PART
NO .
PART DESCRIPTION
1 — SCREWS
2 — DRIP TRAY
3 HO-2957 DRIP TRAY HOSE
ᕡ
ᕢ
ᕣ
W A R N I N G
FAILURE TO PROPERLY INSTALL THE
DRIP TRAY CAN OR WILL CAUSE
MAJOR EQUIPMENT DAMAGE AND
WILL RESULT IN A LEAKAGE
HAZARD THAT CAN CAUSE
PERSONAL INJURY.
W A R N I N G
RISK OF ELECTRIC SHOCK.
Appliance must be secured
to building structure.
BOTTOM VIEW
