Connecting to a Stereo Receiver/Amplifier
• Enjoy realistic sound from a stereo / receiver
amplifier or Dolby Pro Logic sound system
when connected to your AV equipment.

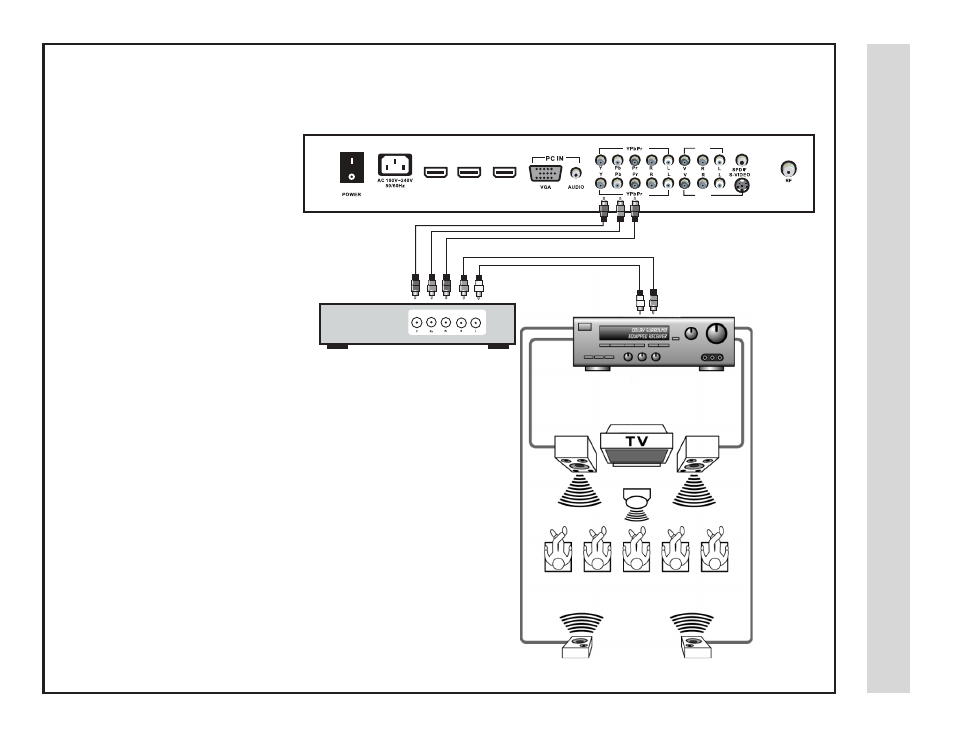

Example: Diagram illustrates the connection
of audio cables from your AV equipment to a
stereo receiver instead of the audio (L/R) jacks
on the TV’s rear panel.
NOTE: When audio cables are connected to a
stereo / receiver amplifier, no audio sound will
be heard from the TV’s built-in speakers.
How to Use (Video)
Press the appropriate INPUT button on the
remote control. Use qp arrow buttons to
highlight the input to view then press ENTER.
How to Use (Audio)
Select the appropriate input from your audio
equipment.
Connecting to a Home Theater Audio System
Installa
tion
Digital Set Top Box,
Gaming Console or DVD
optional cables
Connection to a Receiver/Amplifier
