Installa
tion
2
1
AV2
AV1
HDMI 3 HDMI 2 HDMI 1
TV REAR PANEL
For BETTER video performance
Connect to A/V equipment that features component video output jacks for
excellent performance. There are two (2) YPbPr component video and audio
inputs for use with set top boxes, gaming consoles, and DVD players.
How to Connect Component
When connecting A/V equipment to your television, match the colors of •
the connecting jacks (Video: Blue, Green, Red; Audio: White/Red)
Connect optional component video cables (blue, green, red) from the
•
video output jacks (Y, Pb, Pr) on your external A/V equipment (ie: DVD
Player, set top box) to the YPbPr1 and/or YPbPr2 input(s) on the TV’s
rear panel.
Connect white/red audio cables for sound from the audio (L/R) output
•
jacks on your external A/V equipment (ie: DVD Player, set top box) to the
YPbPr1 or YPbPr2 L/R input(s) on the TV’s rear panel.
How to Use
Press the INPUT button on the TV remote control. Use • qp arrow but-
tons to highlight the input to view (Component 1,2) then press ENTER.

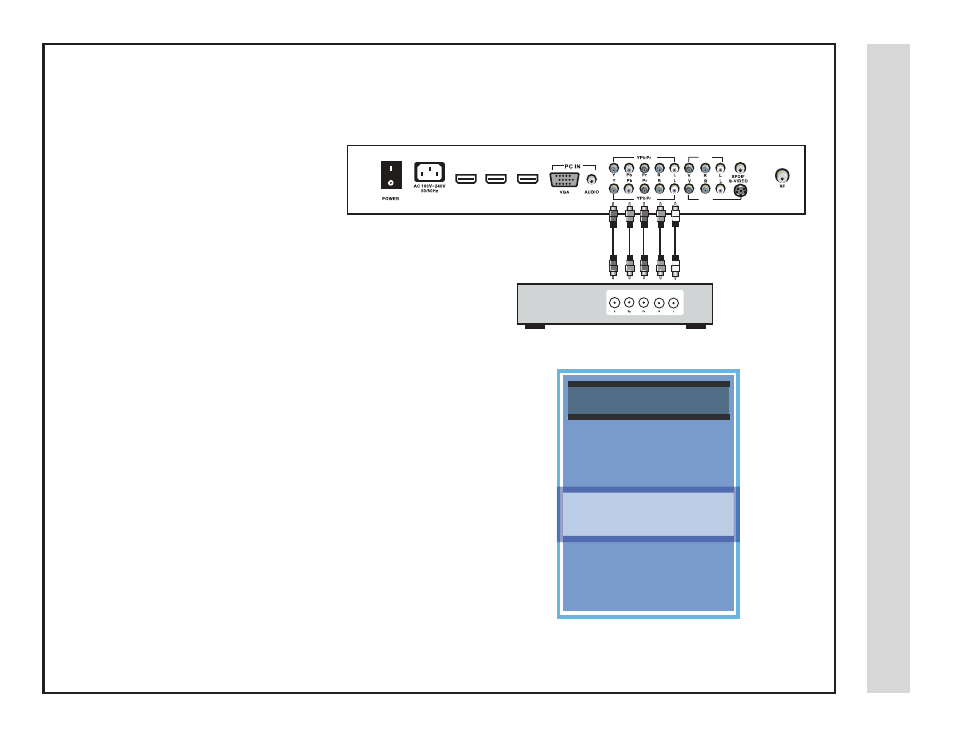

Connecting A/V Equipment to Component Video IN (YPbPr1,YPbPr2)
on your television
INPUT SOURCE INPUT SOURCE
TV
AV1
AV2
S Video
Component 1
Component 2
HDMI 1
HDMI 2
HDMI 3
VGA
-
Digital Set Top
Box, Gaming
Console or DVD
optional Component cables
Connection to Component YPbPr Inputs
11 12
