2.7 Connecting I/O Devices

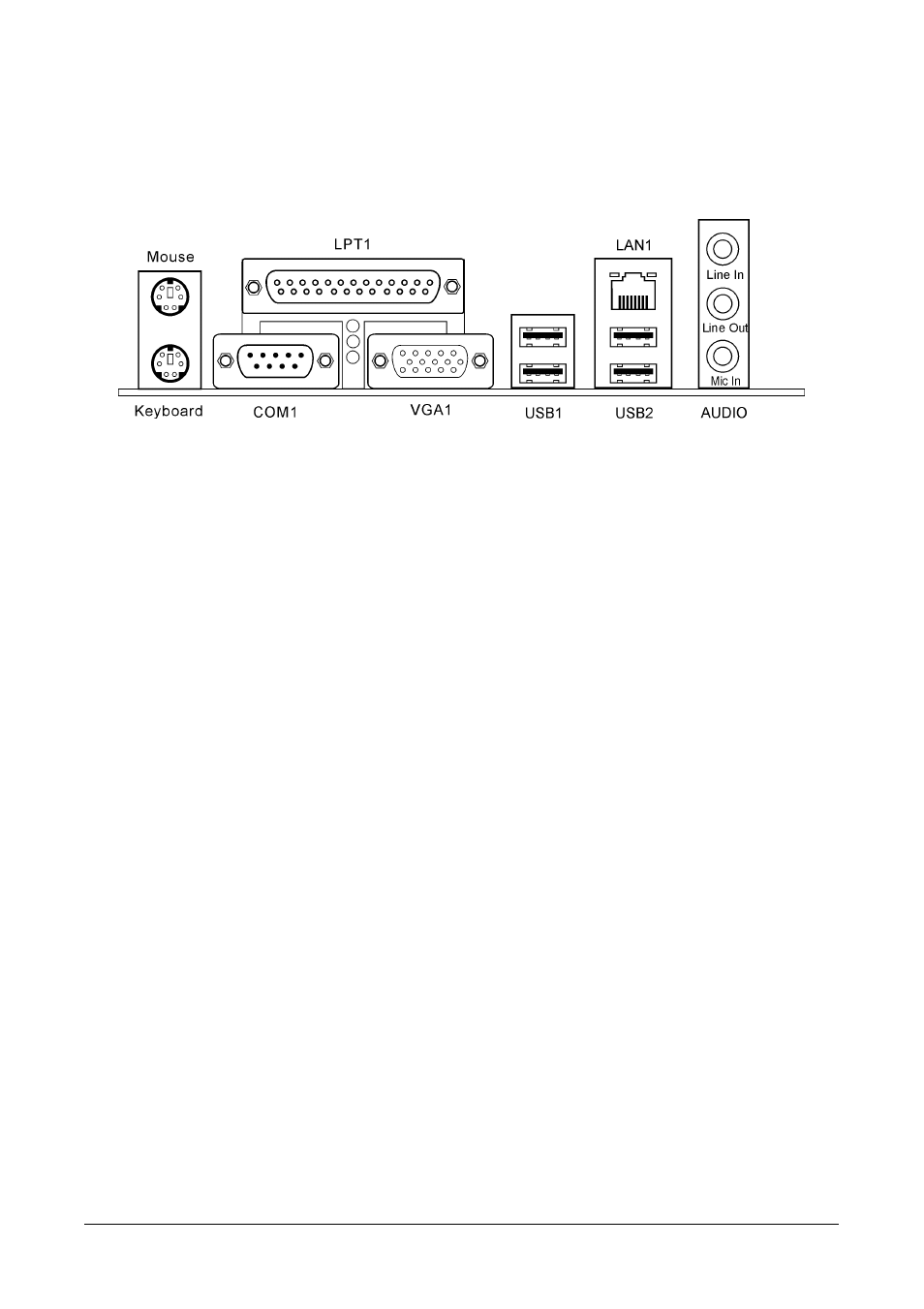

The rear I/O part of this motherboard provides the following I/O ports:

• Mouse: PS/2 mouse connector.

• Keyboard: PS/2 keyboard connector.

• LPT1: Parallel port connector.

• COM1: Serial port connector.

• VGA1: Monitor signal connector.

• USB1/USB2: USB 2.0 connectors.

• LAN1: 10/100Mbps LAN connector.

• AUDIO:

Line In: Connects to the line out from external audio sources.
Line Out: Connects to the front left and front right channel in the 5.1-channel or regular
2-channel audio system.
Mic In: Connects to the plug from external microphone.

2-16

SG-80DC
