2.4.3 Front Panel Switches & Indicators Headers

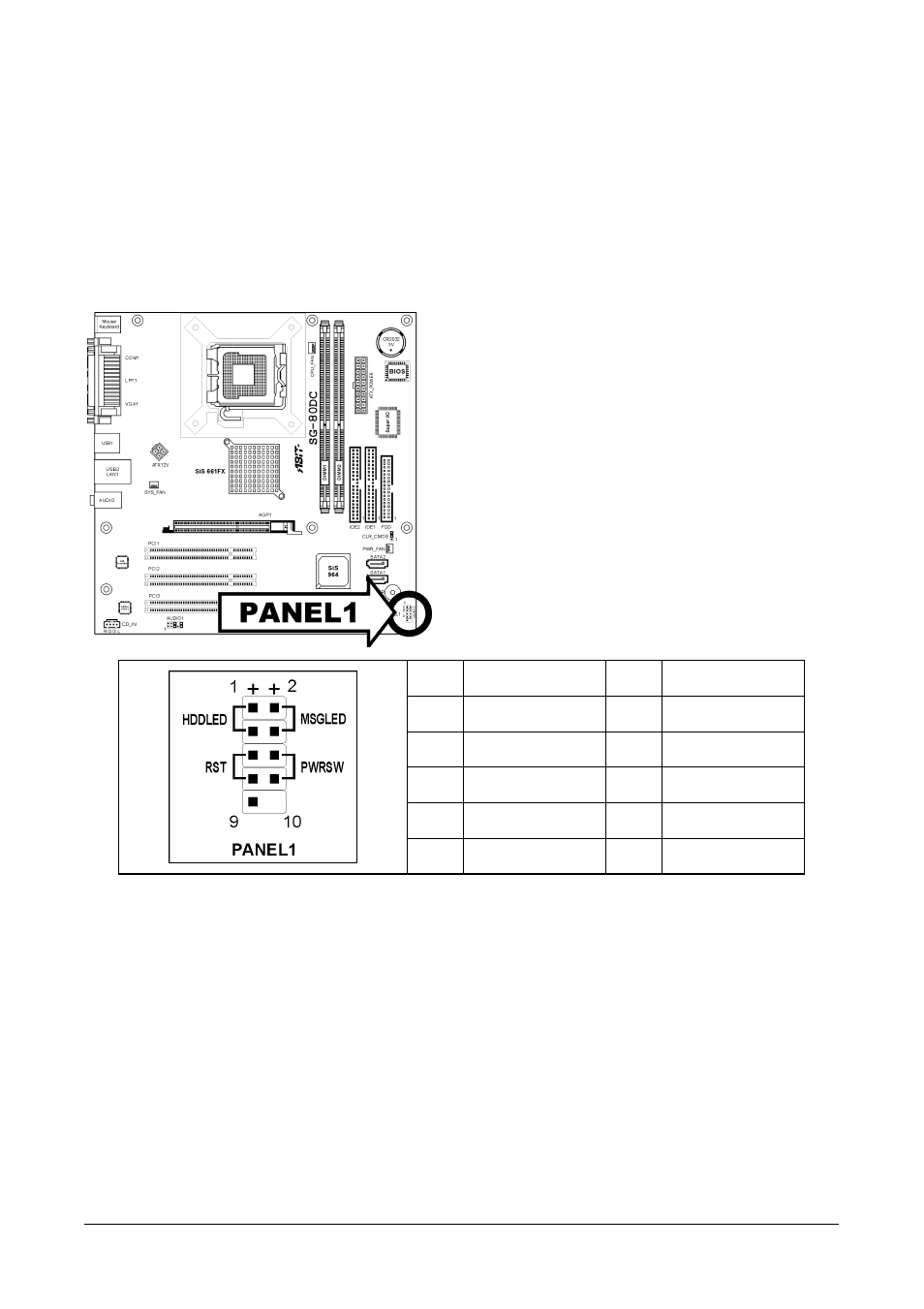

This header is used for connecting switches and LED indicators on the chassis front panel.
Watch the power LED pin position and orientation. The mark “+” align to the pin in the figure
below stands for positive polarity for the LED connection. Please pay attention to connect these
headers. A wrong orientation will only cause the LED not lighting, but a wrong connection of
the switches could cause system malfunction.
Pin Definition Pin Definition
1 HD LED + 2 Message LED +
3 HD LED - 4 Message LED -
5 RESET 6 Power Switch
7 RESET 8 Power Switch
9 Reserved
