Driver & Utility CD
iL-90MV 4-5

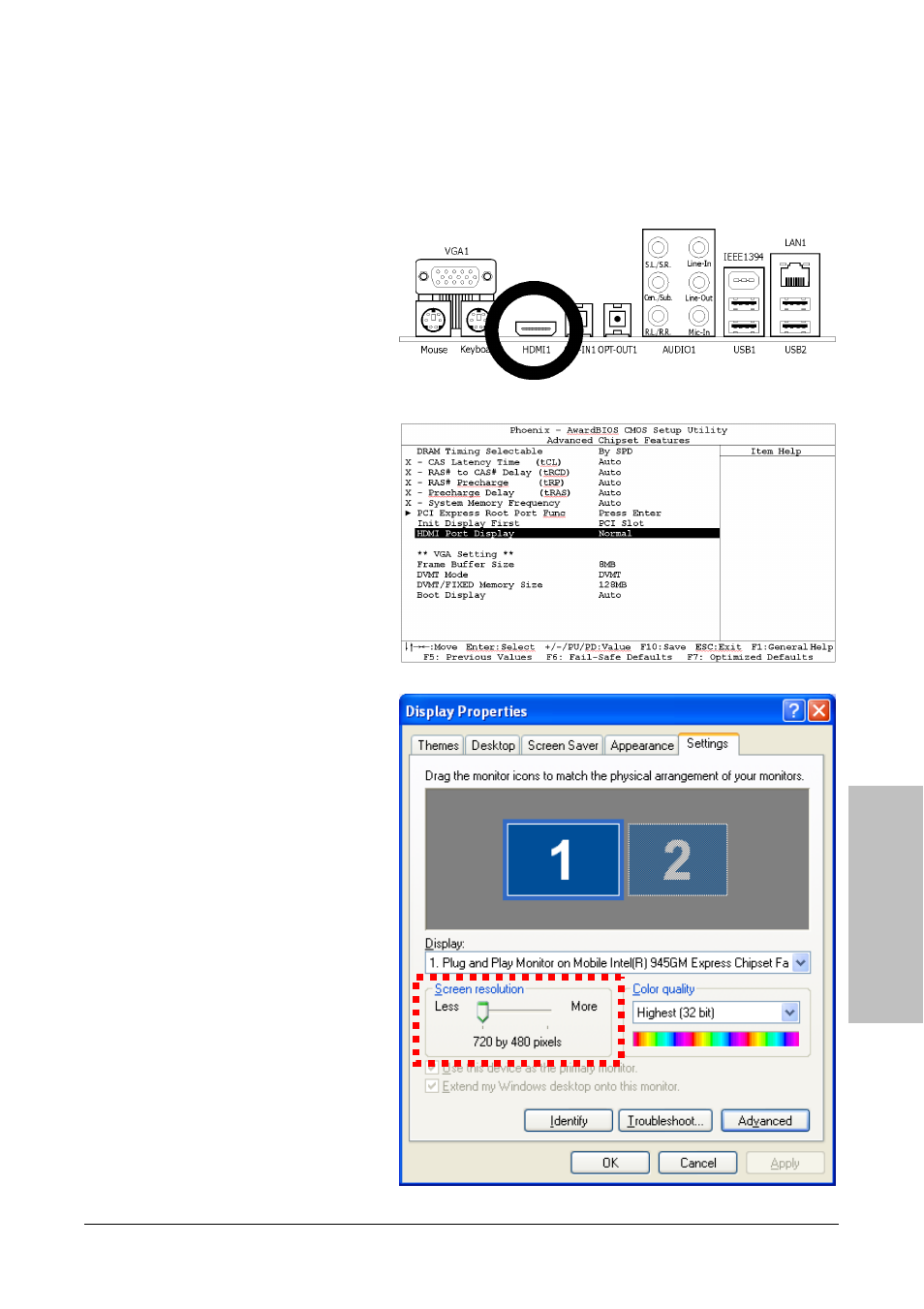

4.3.1 Tips on HDMI application
1. Connects to your HDMI device from the connector “HDMI1” only with an
HDMI-to-HDMI cable. DO NOT connect with an HDMI-to-DVI cable.
2. Connect your HDMI digital
device to port “HDMI1” located
at the rear I/O panel of this
motherboard.
3. Select the type of display
device. For “HDMI” connection,
you will have to configure the
BIOS parameter:
(1) Enter the BIOS Setup
Menu: “Advanced
Chipset Features”
“HDMI Port Display”.
(2) Change the option from the
default [DVI] to [Normal].
4. After completed the driver
installation of “Intel Graphics
Media Accelerator”, if there
is no graphics output when
restarting the system, try enter
Hot Keys + +
simultaneously to regain.
5. For the application of HDMI
digital device:
(1) Check to see if the screen
resolution in the [Display
Properties] is limited to
“720 x 480” or lower than
the one of your HDMI
digital device.
