AIMB-256 User Manual
28
1.8.11

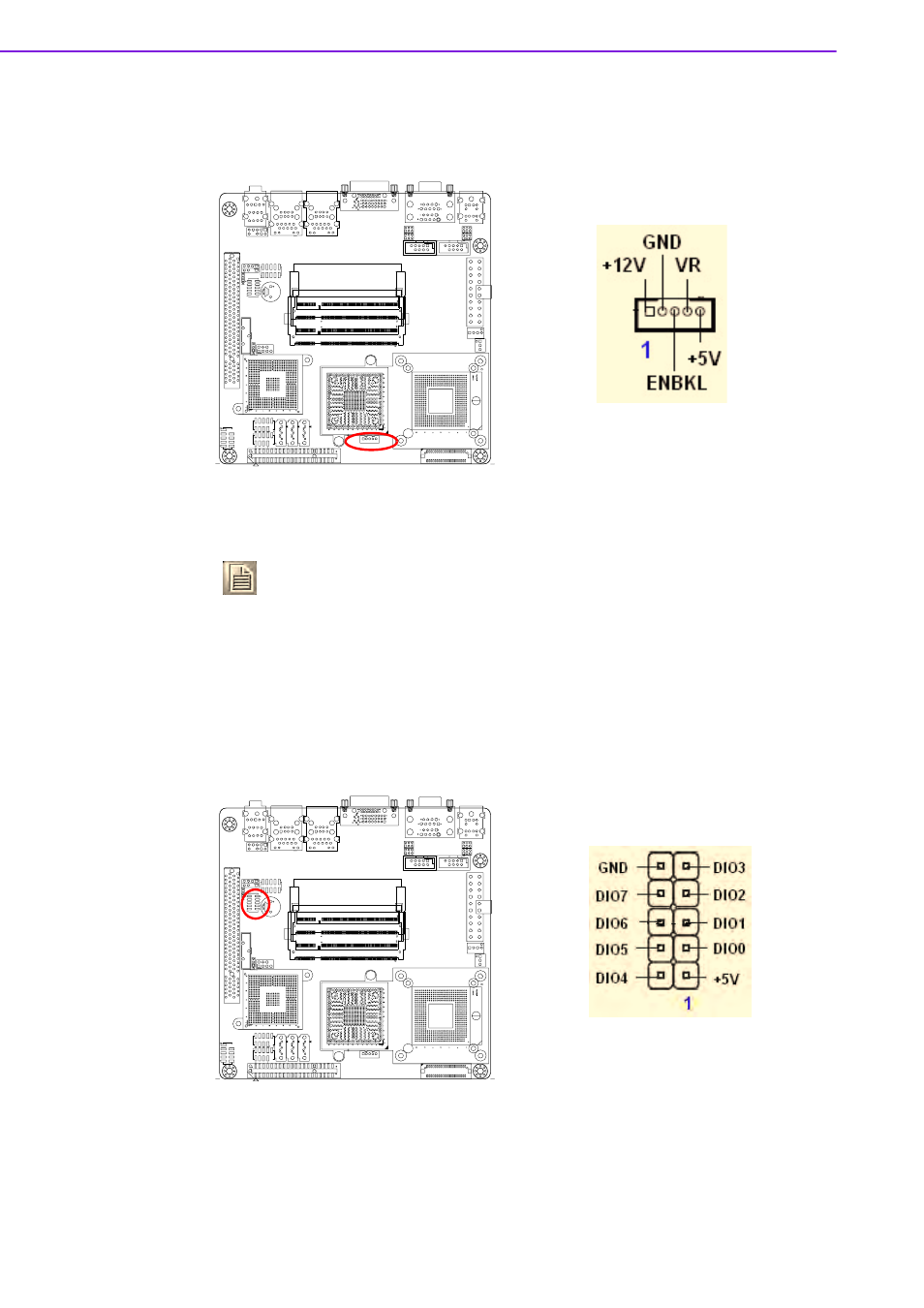

LCD Inverter Connector (JBKL1)
1.8.12
Digital I/O Connector (JDIO1)
Note!
!
Signal Description
Signal Signal
Description
VR
Bright adjust. Vadj=0.75 V ~ 4.25 V
(Recommended: 4.7K
Ω
, > 1/16 W)
ENBKL
LCD backlight ON/OFF control signal
