AIMB-256 User Manual 10

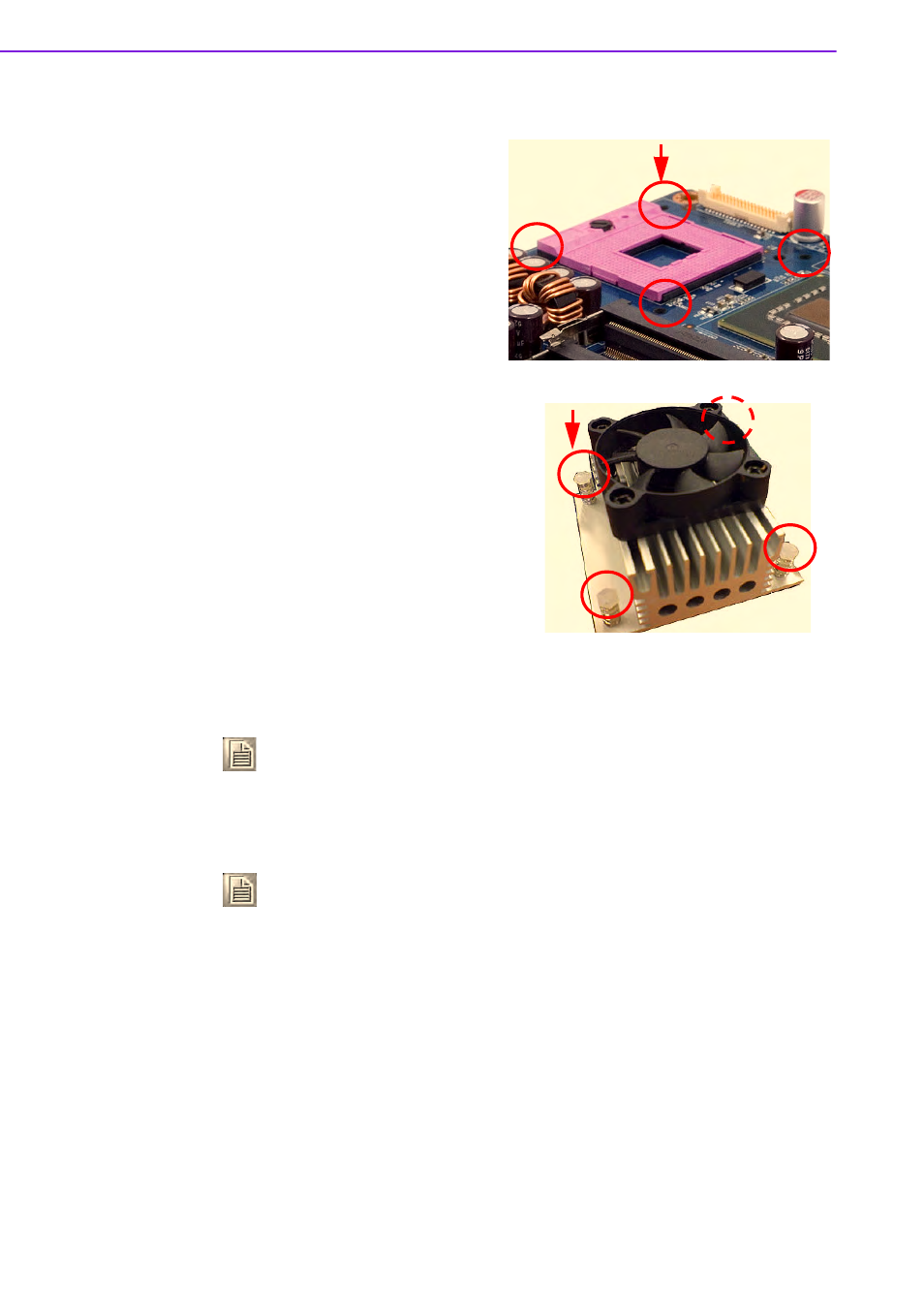

1. Place the heatsink on top of the
installed CPU, making sure that
the four fasteners match the holes
on the motherboard.
Note! Orient the heatsink and fan assembly so that the CPU fan cable is clos-
est to the CPU fan connector.
Note! Make sure each fastener is oriented as shown, with the narrow groove
directed outward.
Fastener
Motherboard Hole
