INOR IPAQ-HX GB User Manual

Page 2

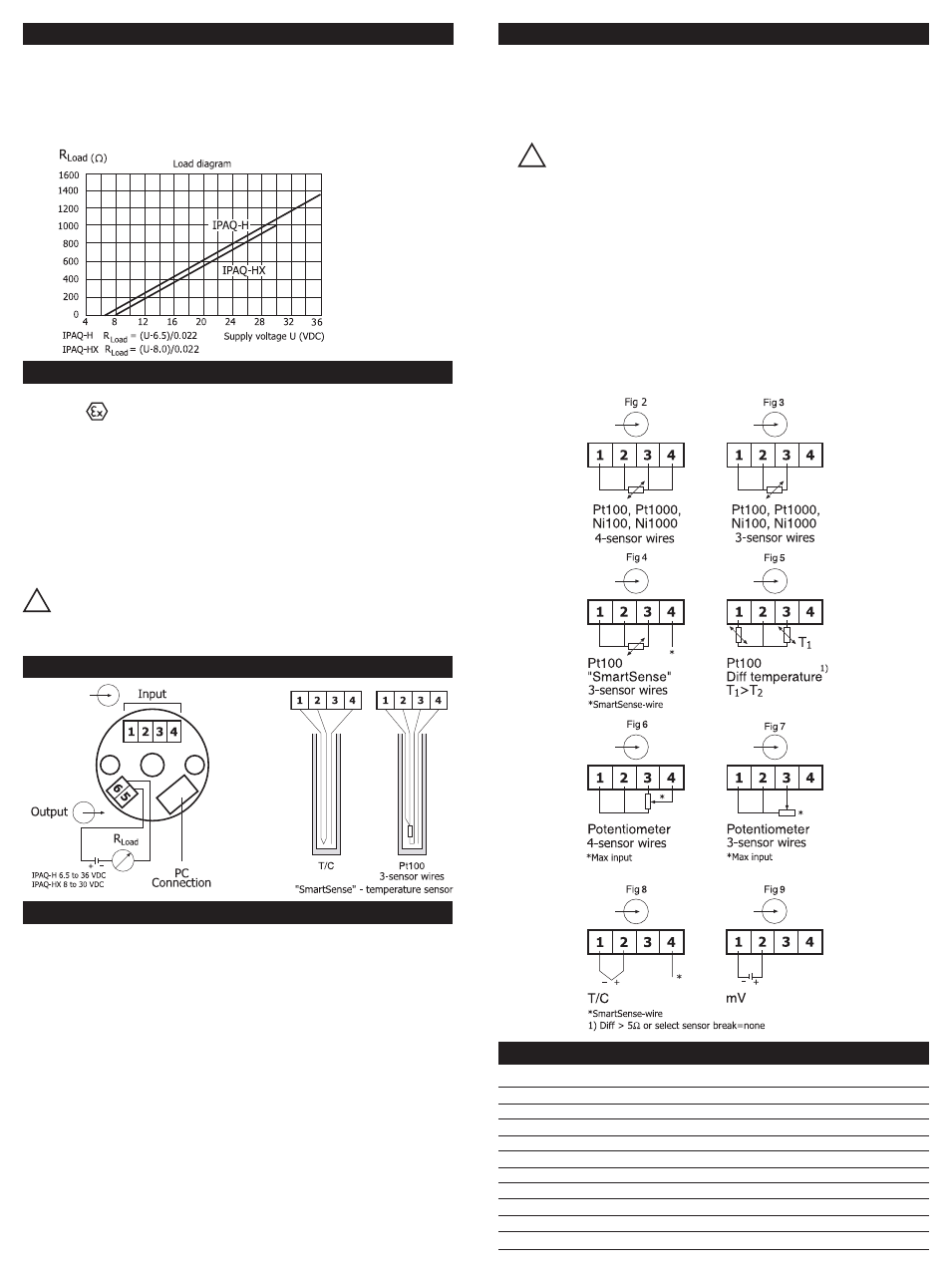

background image

Item

Part No.

IPAQ-H, isolated

70IPH00001

IPAQ-HX, isolated (ATEX)

70IPHX0001

IPAQ-HX, isolated (FM, CSA)

70IPHX1001

Software and cable

Configuration kit IPRO with cables

70CFG00092

Accessories

Surface mounting box

70ADA00008

Rail mounting box

70ADA00009

Head mounting kit

70ADA00012

Rail mounting kit

70ADA00013

LIMITED WARRANTY

INOR Process AB, or any other affiliated company within the Inor Group (hereinafter jointly referred to as

”Inor”), hereby warrants that the Product will be free from defects in materials or workmanship for a period

of five (5) years from the date of delivery (”Limited Warranty”). This Limited Warranty is limited to repair

or replacement at Inor’s option and is effective only for the first end-user of the Product. Upon receipt of

a warranty claim, Inor shall respond within a reasonable time period as to its decision concerning:

1 Whether Inor acknowledges its responsibility for any asserted defect in

materials or workmanship; and, if so,

2 the appropriate cause of action to be taken (i.e. whether a defective

product should be replaced or repaired by Inor).

This Limited Warranty applies only if the Product:

1 is installed according to the instructions furnished by Inor;

2 is connected to a proper power supply;

3 is not misused or abused; and

4 there is no evidence of tampering, mishandling, neglect, accidenta damage, modification

or repair without the approval of Inor or damage done to the Product by anyone other

than Inor.

This Limited Warranty is provided by Inor and contains the only express warranty provided.

INOR SPECIFICALLY DISCLAIMS ANY EXPRESS WARRANTY NOT PROVIDED HEREIN AND

ANY IMPLIED WARRANTY, GUARANTEE OR REPRESENTATION AS TO SUITABILITY FOR

ANY PARTICULAR PURPOSE, PERFORMANCE, QUALITY AND ABSENCE OF ANY HIDDEN

DEFECTS, AND ANY REMEDY FOR BREACH OF CONTRACT, WHICH BUT FOR THIS PRO-

VISION, MIGHT ARISE BY IMPLICATION, OPERATION OF LAW, CUSTOM OF TRADE OR

COURSE OF DEALING, INCLUDING IMPLIED WARRANTIES OF MER-CHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. EXCEPT AS PROVIDED HEREIN, INOR FURTHER

DISCLAIMS ANY RESPONSIBILITY FOR LOSSES, EXPENSES, INCONVENIENCES, SPECIAL,

DIRECT, SECONDARY OR CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP OR

USE OF THE PRODUCT.
Products that are covered by the Limited Warranty will either be repaired or replaced at the option of

Inor. Customer pays freight to Inor, and Inor will pay the return freight by post or other “normal” way of

transport. If any other type of return freight is requested, customer pays the whole return cost.

DATA (shortform)

CONNECTIONS

ORDERING TABLE

IPAQ-HX EX-DATA

Approval Demko 02 ATEX 132033X
CE 0539

II 1G

Ex ia IIC T4-T6

IPAQ-H/HX are designed to fit inside connection heads type DIN B

or larger.

The larger center hole, dia. 7 mm/0.28 inch (see ”Dimensions”),

facilitates the pulling through of the sensor leads or an insert tube,

greatly simplifying the mounting procedure.

IPAQ-HX must be installed in an enclosure having

an Ingress Protection suitable for the actual use

but at least IP20.

If IPAQ-HX is mounted in a housing (head) made of light

metals and installed in hazardous area make sure the content

of magnesium (Mg) in the light metal is less than 6%.
If IPAQ-HX is mounted in a housing which is isolated from

ground and can be charged to an ignition capable level, then

the housing shall be electrostatically grounded when installed

in hazardous area.
Connect input, output and power supply acc. to fig. 1-9.

A convinient way to install the transmitter is to use the INOR moun-

ting kits for in-head and DIN rail mounting, (see ”Ordering table”). In

order to minimize measuring errors make sure the connecting screws

are tightened enough.

INSTALLATION

Fig 10.

Fig 1.

Power supply: IPAQ-H

6.5 to 36 VDC

IPAQ-HX

8 to 30 VDC

Isolation in/out:

1500 VAC

Output:

4-20 mA

Operating temperature:

-40 to +50 °C (T6)

-40 to +65 °C (T5)

-40 to +85 °C (T4)

!

!

Output (current loop)

U

i

30 VDC

I

i

100 mA

P

i

900 mW

L

i

~

0 mH

C

i

~

0 nF

Input (sensor)

U

o

30 VDC

I

o

25 mA

P

o

188 mW

L

o

~

50 mH

C

o

~

66 nF

IPAQ-HX must be powered from an intrinsic safe power

supply or zener barrier, placed outside the hazardous area.

Also see Control Drawing 88DRW00023.

Approval FM, J.I 0D6A8.AX, CSA 2007 Certificate 1863602

Class I, Division 1, Group A, B, C and D

Control Drawing 3-7851
