4. OPERATING INSTRUCTIONS
4.1. INSTRUMENT DESCRIPTION
LEGEND:
1. +LOOP jack
2. mA jack
3. COM jack
4. V jack
5. POWER key
6. V/mV key
7. mA/% key
8. INPUT/OUTPUT key
9.
 Arrow key for increase
most significant digits
10.
 Arrow key for decrease
most significant digits
11.
 Arrow key for increase
decimal digits
12.
 Arrow key for decrease
decimal digits
13. Low battery indication
14. “INPUT” mode indication
15. “OUTPUT” mode indication
16. LCD display
17. Voltage measurement unit
18. Current measurement unit

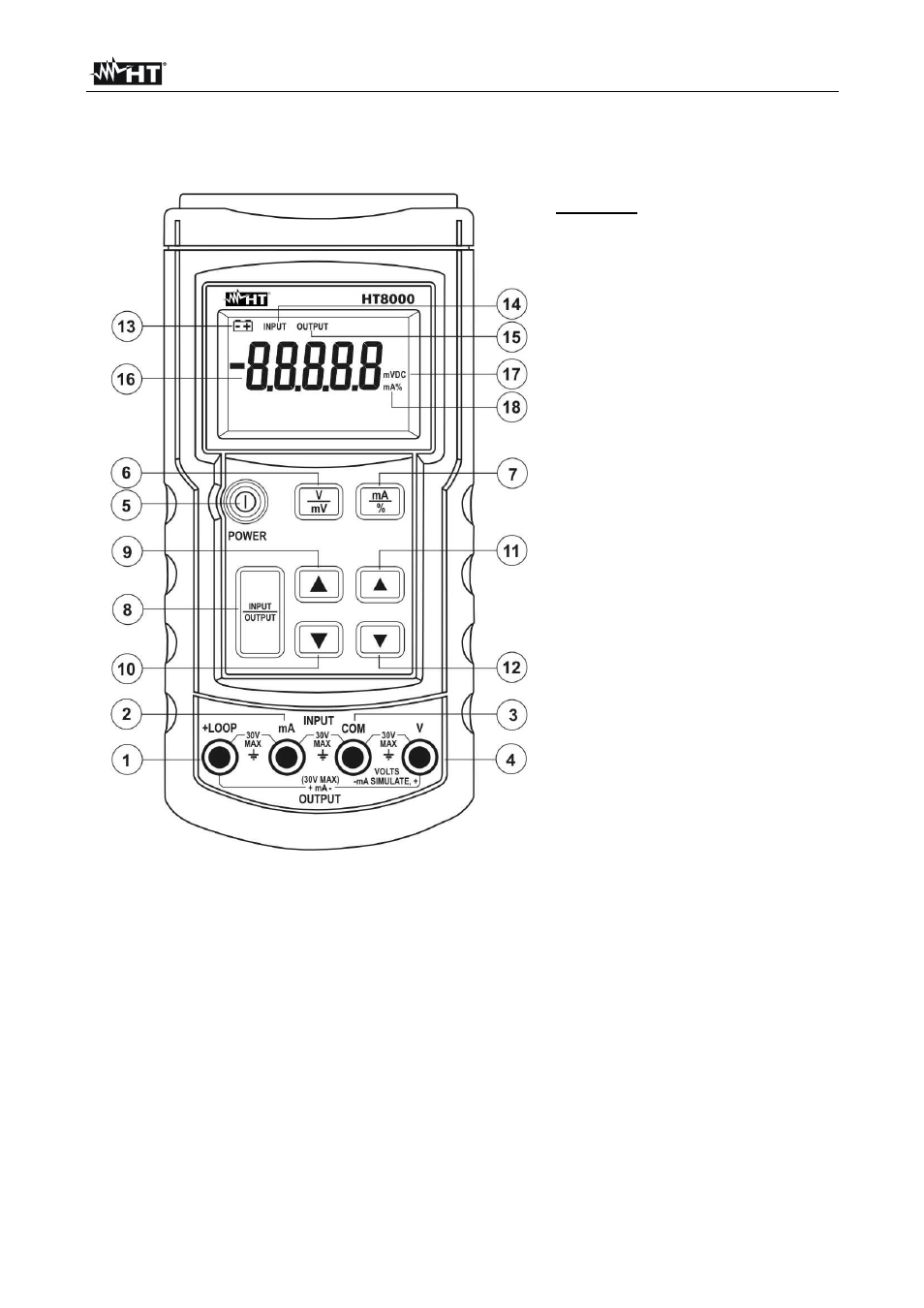

Fig. 1: Instrument description
